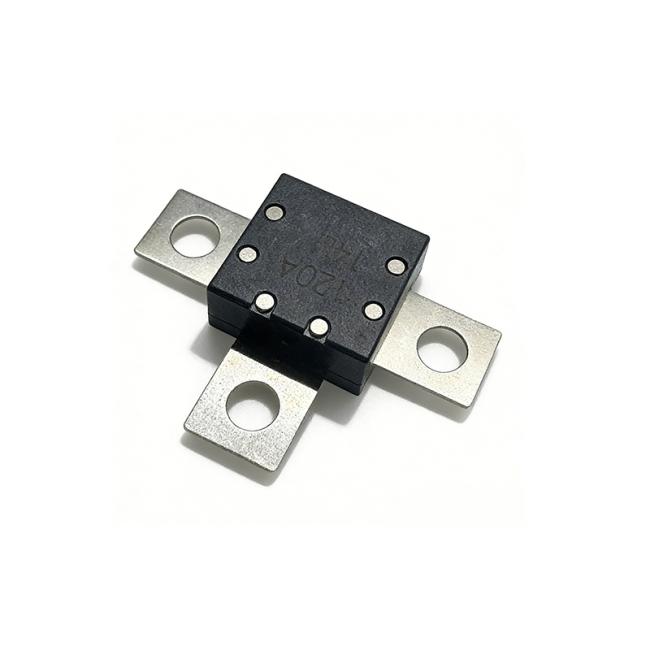

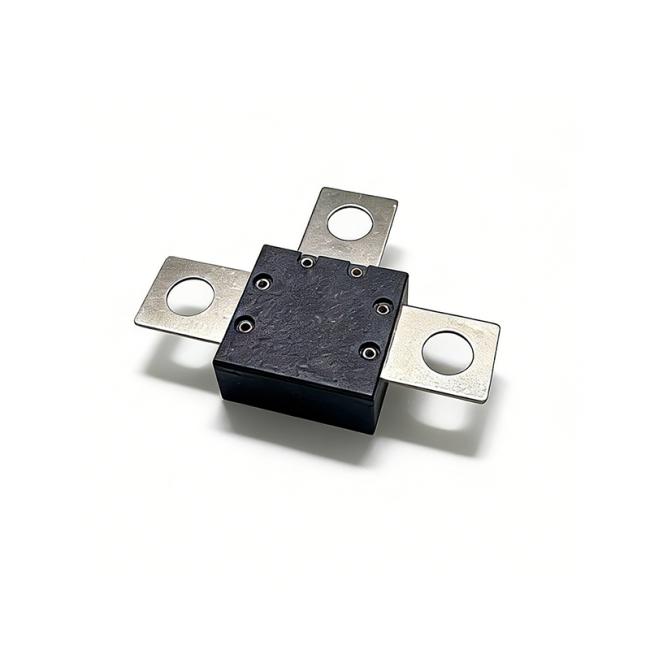

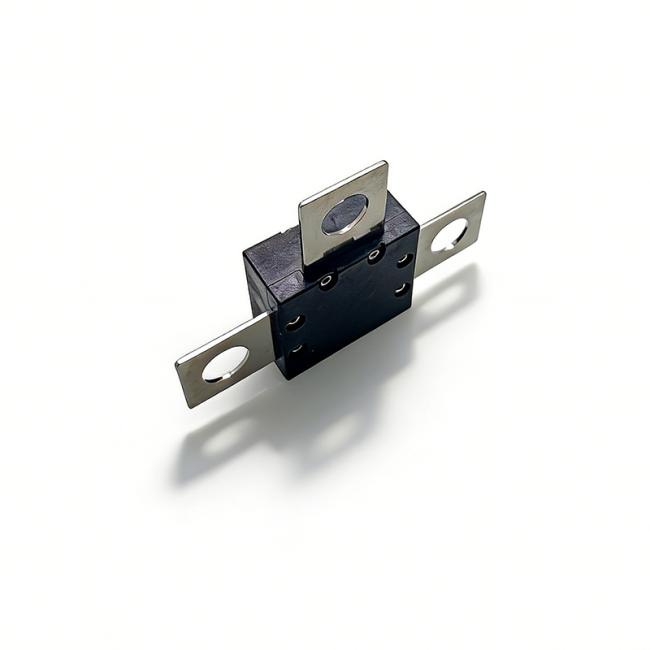

SFM Series Self Control Fuse SCP WPF120A4M 4 Cell 120 150A Amperes Surface Mounted Fuse
SFM Series Self Control Fuse SCP WPF120A4M 4 Cell 120 150A Amperes Surface Mounted Fuse
Description
The SFM Series Self Control Fuse, model SCP WPF120A4M, is a high-performance surface-mounted protection device designed for advanced battery management systems. Engineered as a 4-cell configuration, this fuse supports a nominal current rating of 120A with a robust 150A amperage capacity. It provides precise overcurrent protection while integrating self-control features, making it an ideal solution for applications requiring compact design and reliable circuit interruption in high-power environments.
Specification
Product Name: Self Control Fuse

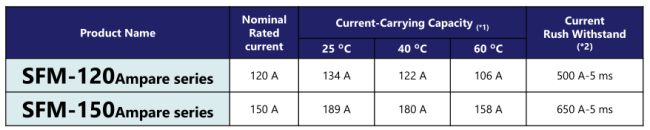

Rated Current: 120A 150A
Rated Voltage: 80VDC
Style: SMD type
Material: Plastic
Breaking Capacity: 300A

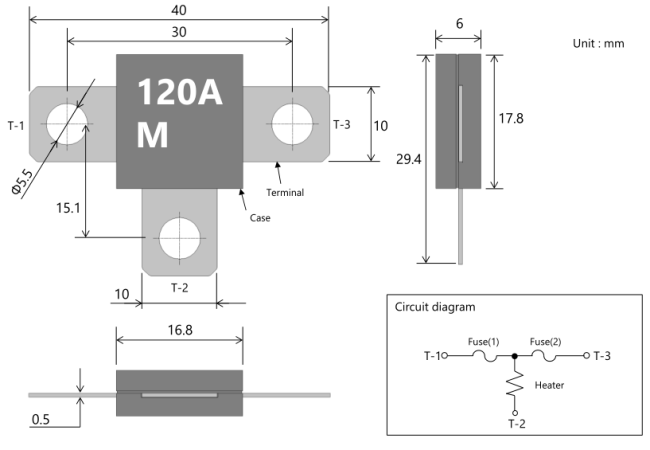

Size: 40x29.6x4mm
Fuse Resistance: 0.5mΩ
Operating Temperature: -20~85℃
Termial: 3
| Items | General Specification |
| Environmental Compliance | Compliance with RoHS |
| Halogen Free | Bromine (Br)=900 ppm or less, Chlorine (Cl)=900 ppm or less, Br+Cl=1500 ppm or less (By weight) |
| Qualification | UUL248-14 (File No. E489967) |
| Rated Voltage | 80 VDC (*) This value is the maximum voltage can be cut off by fuse. It doesn't represent the operational voltage of the heater. |
| Rated Breaking Capacity | 300A |
Features
•Self-Control Functionality: Incorporates intelligent protection mechanisms that ensure rapid response to overcurrent conditions, enhancing system safety.
•High Current Rating: Supports continuous operation at 120A with a maximum interrupting capacity of 150A, suitable for high-power applications.

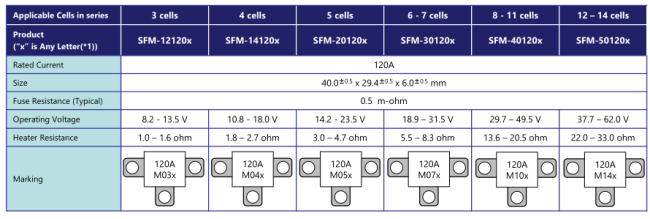

•4-Cell Configuration: Specifically designed to manage protection across four cells, optimizing balance and safety in multi-cell battery packs.
•Surface-Mounted Design (SMD): Facilitates automated assembly processes, reduces PCB space consumption, and ensures robust mechanical stability.
•Compact Form Factor: The SFM Series offers a space-saving footprint without compromising on thermal performance or reliability.
Applications
•Lithium-Ion Battery Packs: Ideal for e-mobility (e-bikes, scooters) and energy storage systems (ESS) requiring multi-cell protection.
•Power Tools: Provides reliable overcurrent protection for high-drain cordless tools.
•Uninterruptible Power Supplies (UPS): Ensures safe operation in backup power systems.
•Industrial Electronics: Suitable for robotics, automated guided vehicles (AGVs), and other equipment utilizing high-capacity battery modules.
