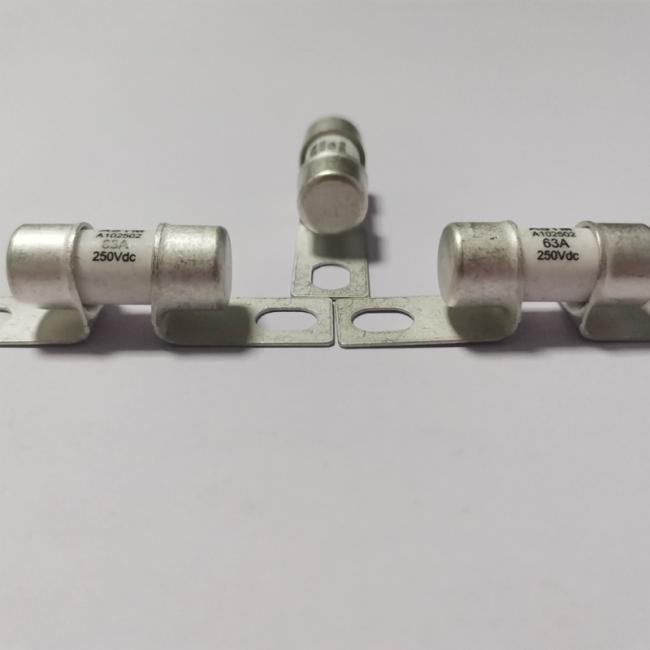

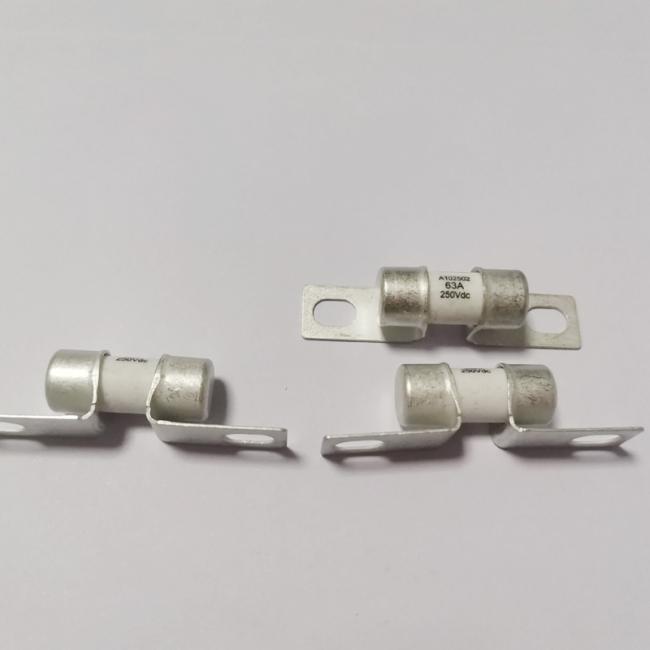

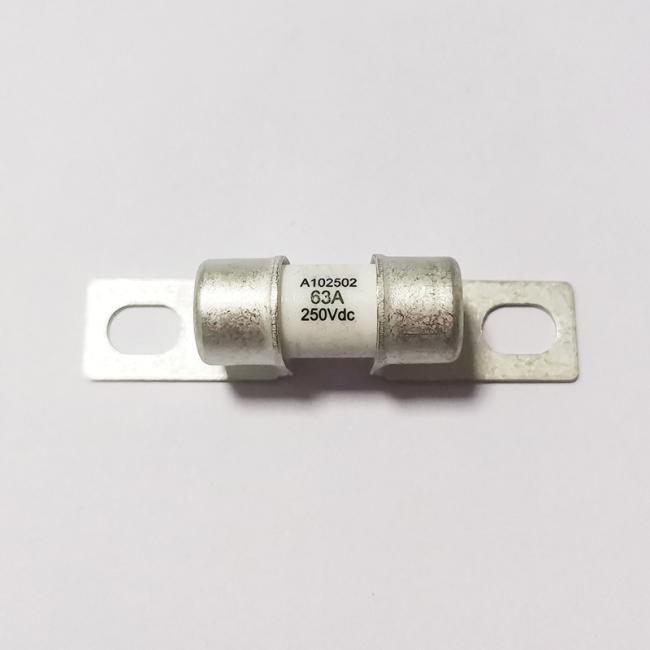

EV Fuse Link 15A to 100A 200V 250V DC with 33kA to 50kA Breaking Capacity for Electric Vehicles and Energy Storage Systems
Fuse Link 15A 20A 25A 30A 40A 50A 63A 80A 100A 200V 250V DC 33kA 50kA for EV HEV ESS
This high-performance series of DC fuse links is specifically engineered for modern electric vehicles (EV), hybrid electric vehicles (HEV), and energy storage systems (ESS). Ranging from 15A to 200A with voltage ratings of 200V and 250V DC, these fuses are designed to deliver reliable overcurrent protection in high-voltage DC circuits. With exceptional breaking capacities of 33kA and 50kA, they ensure superior safety and system integrity under severe fault conditions.
Specification
Rated Current: 15A to 100A
Rated Voltage: 200V~250V DC
Beaking Capacity: 33kA to 50kA
Material: Ceramic body
End Caps: Brass
Standard: UL248-20
Mounting: Stud-mount
Application: EV/HEV/ESS
Ratings
| Model No. | Rated Current (A) | Rated Voltage/ Interrupting Rating |
| A102502-15 YY | 15 | 250Vdc/50000A |
| A102502-20 YY | 20 | |
| A102502-25 YY | 25 | |
| A102502-30 YY | 30 | |
| A102502-40 YY | 40 | |
| A102502-50 YY | 50 | |
| A102502-63 YY | 63 | |
| A102502-80 YY | 80 | |

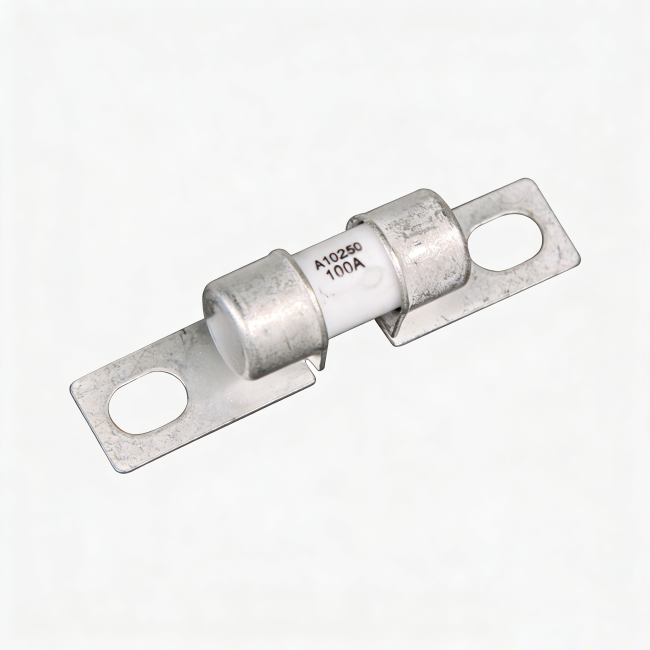

| A102502-100 YY | 100 | 200Vdc/33000A |
Features
•Wide Current Range: Available in ratings from 15A, 20A, 25A, 30A, 40A, 50A, 63A, 80A, 100A, to 200A, providing flexible design options for various power requirements.
•High DC Voltage Rating: Suitable for 200V and 250V DC systems, making them ideal for battery and power conversion applications.
•High Breaking Capacity: Rated at 33kA and 50kA, offering robust protection against high-energy short circuits and ensuring reliable interruption in demanding environments.
•Compact & Robust Design: Engineered to withstand mechanical stress, temperature fluctuations, and high current loads typical in automotive and industrial storage applications.
•Fast-Acting Protection: Provides rapid response to overcurrent conditions, safeguarding sensitive semiconductor components and battery systems from damage.
Applications
•Electric Vehicles (EV) & Hybrid Electric Vehicles (HEV): Main battery protection, auxiliary circuits, and onboard charging systems.
•Energy Storage Systems (ESS): Battery packs, power conversion systems (PCS), and DC distribution units.
•DC Power Distribution: Industrial battery backups, high-voltage DC power supplies, and renewable energy systems.
