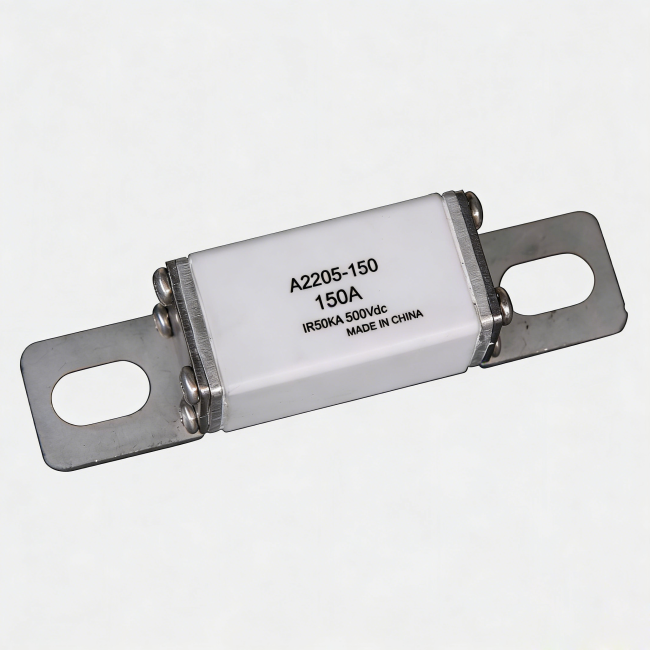

High Voltage DC EV Fuse with 500V DC Rating 50kA Breaking Capacity and Stud-mount for Hybrid Electric Vehicles

High Voltage DC EV Fuse 100A 150A 200A 250A 500V 50kA for Hybrid Electric Vehicle

Our high voltage DC EV fuse is specifically engineered for hybrid electric vehicle (HEV) applications requiring robust overcurrent protection at elevated voltages. With a voltage rating of 500V DC and a high interrupting capacity of 50kA, this fuse series delivers superior safety and reliability for the demanding electrical architectures found in modern hybrid vehicles.

Specification

Rated Current: 100A to 250A

Rated Voltage: 500V DC

Beaking Capacity: 50kA

Material: Ceramic body

Terminal: Brass

Compliant: RoHS Compliant

Mounting: Stud-mount

Application: EV/HEV/ESS

Ratings

Features

•Wide Current Range: Available in 100A, 150A, 200A, and 250A to accommodate various power stage requirements in hybrid electric systems.High Voltage DC Rating: Rated at 500V DC, suitable for high-voltage battery packs, inverters, and power distribution units in HEV applications.

•High Interrupting Capacity: Capable of safely interrupting fault currents up to 50kA, ensuring robust protection against severe short-circuit events.

•Fast-Acting Performance: Designed to respond quickly to overcurrent conditions, minimizing the risk of damage to sensitive powertrain and battery management components.

•Compact & Durable Construction: Engineered to withstand vibration, temperature extremes, and thermal cycling commonly encountered in automotive environments.

•Compliant with Industry Standards: Built to meet automotive-grade reliability requirements, ensuring consistent performance throughout the vehicle's lifespan.

Applications

•Hybrid Electric Vehicles (HEV): Provides critical circuit protection for high-voltage DC systems, including battery packs, traction inverters, DC-DC converters, and onboard chargers.

•Battery Protection: Safeguards lithium-ion battery packs from overcurrent and short-circuit conditions, enhancing overall system safety.

•Power Distribution Units (PDU): Ideal for use in high-voltage junction boxes and power distribution modules within hybrid vehicle architectures.

•Industrial Machinery: Suitable for high-voltage DC circuits in forklifts, excavators, and other heavy equipment utilizing hybrid or electric powertrains.

•Energy Storage Systems: Delivers reliable protection for high-voltage battery banks in stationary and portable energy storage applications.
