6125 Time Delay SMD Fuse 125VAC DC 250mA 315mA 400mA 500mA 630mA 800mA 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 3.5A 4A 5A 7A
6125 Time Delay SMD Fuse 125VAC DC 250mA 315mA 400mA 500mA 630mA 800mA 1A 1.25A 1.6A 2A 2.5A 3A 3.15A 3.5A 4A 5A 7A

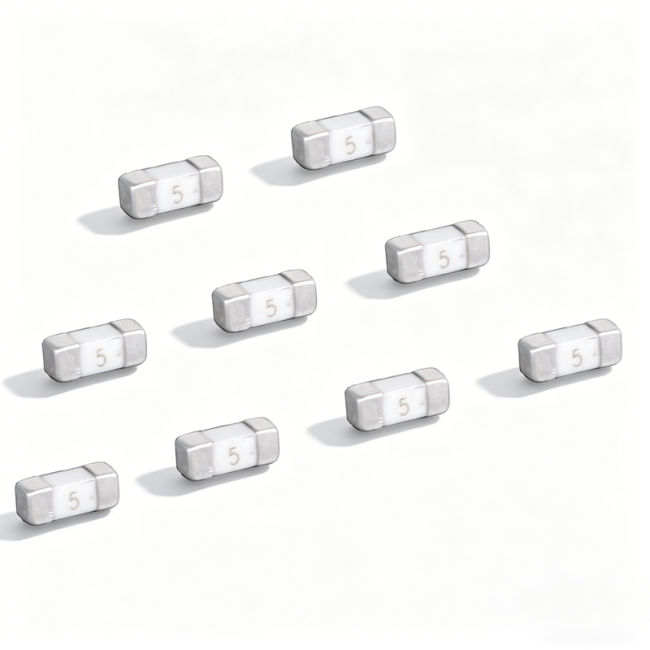

The 6125 series Time Delay SMD Fuse is a compact, surface-mount overcurrent protection component designed for 125V AC/DC circuits. It is available in a wide current rating range from 250mA to 7A, making it a versatile solution for various electronic applications requiring reliable and delayed response to transient surges.
Specification
| Product Name | SMD Fuse |
| Rated Current | 250mA to 7A |
| Rated Voltage | 125VAC/125VDC |
| Size | 6125 1808 2410 |
| Breaking Capacity | 50A |
| Type | Brick Fuse |
| Feature | One Time Positive Disconnect |
| P/N | Max. Voltage | Rated Current | |
| AC | DC | A | |
| PB04.0.25 | 125V | 125V | 0.25 |
| PB04.0.315 | 0.315 | ||
| PB04.0.4 | 0.4 | ||
| PB04.0.5 | 0.5 | ||
| PB04.0.63 | 0.63 | ||
| PB04.0.8 | 0.8 | ||
| PB04.1 | 1 | ||
| PB04.1.25 | 1.25 | ||
| PB04.1.6 | 1.6 | ||
| PB04.2 | 2 | ||
| PB04.2.5 | 2.5 | ||
| PB04.3 | 3 | ||
| PB04.3.15 | 3.15 | ||
| PB04.3.5 | 3.5 | ||
| PB04.4 | 4 | ||
| PB04.5 | 5 | ||
| PB04.7 | 7 | ||

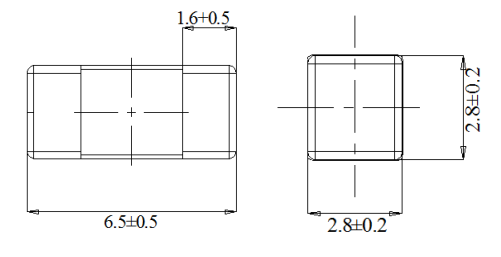

Dimension (mm)
Features
•Time-delay (slow-blow) characteristic – tolerates inrush currents without nuisance opening
•Surface-mount 6125 package (6.1mm × 2.5mm footprint, approximate) – ideal for automated PCB assembly
•Rated voltage: 125V AC / 125V DC
•Wide current options: 250mA, 315mA, 400mA, 500mA, 630mA, 800mA, 1A, 1.25A, 1.6A, 2A, 2.5A, 3A, 3.15A, 3.5A, 4A, 5A, 7A
•Suitable for both AC and DC operation
•RoHS compliant and halogen-free available (depending on manufacturer)
Applications
•Power supplies and adapters
•Battery management systems (BMS)
•LED lighting drivers
•Industrial control equipment
•Consumer electronics (TVs, monitors, home appliances)
•Telecommunication devices
•Automotive electronics (aftermarket or non-critical 12V/24V systems with appropriate derating)
