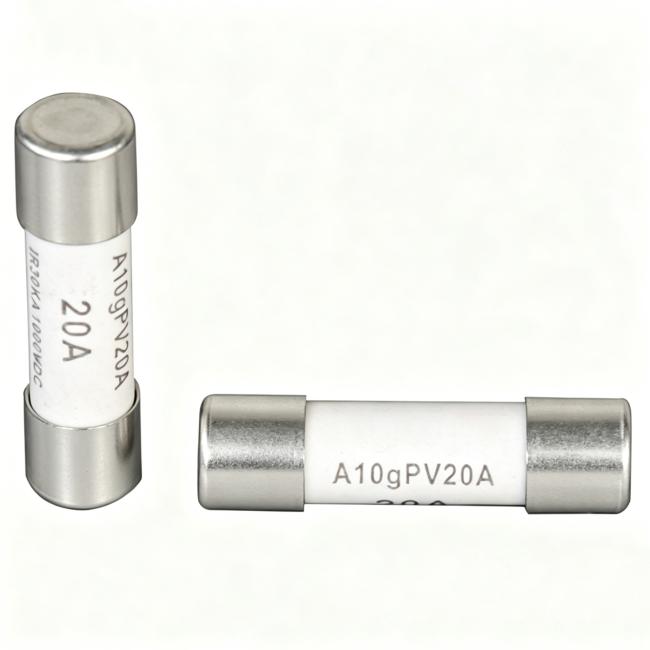

10×38mm Ceramic Fuse Link IEC gPV 1000V DC 10A 15A 20A 30kA for Solar Power


10×38mm Ceramic Fuse Link IEC gPV 1000V DC 10A 15A 20A 30kA for Solar Power

The 10×38mm Ceramic Fuse Link is a high-performance DC fuse specifically designed for photovoltaic (PV) systems. Compliant with the IEC gPV standard and rated for 1000V DC, this fuse provides reliable overcurrent protection for solar power installations. Available in current ratings of 10A, 15A, and 20A, it features a high breaking capacity of 30kA, ensuring safety and stability under fault conditions.


Specifications of 10x38mm Ceramic Fuse

Product Name: Fuse Link

Rated Current: 10A-20A

Rated Voltage: 1000VDC

Main Material: Ceramic

Ends Material: Brass

Breaking Capacity: 30kA @ 1000VDC

Utilization category according to IEC 60269: gPV

Application: for Solar Power

Features of 10x38mm Ceramic Fuse

•IEC gPV Compliance: Meets the stringent requirements of the IEC 60269-6 gPV standard, making it suitable for photovoltaic applications.

•High Voltage & Breaking Capacity: Rated at 1000V DC with a 30kA interrupting rating, effectively handling severe overcurrent faults.

•Compact 10×38mm Form Factor: Standard footprint allows easy integration into PV combiner boxes, string inverters, and DC distribution panels.

•Ceramic Body: Provides excellent thermal and mechanical strength, along with arc-quenching properties for enhanced safety.

•Wide Current Options: Available in 10A, 15A, and 20A ratings to accommodate different string sizes and system loads.

•Reliable DC Performance: Specifically engineered for DC circuits, minimizing arc risk and ensuring long-term reliability.



Applications of 10x38mm Ceramic Fuse

•Solar photovoltaic (PV) string protection

•PV combiner boxes and recombiner units

•DC side of solar inverters

•Battery energy storage systems (DC coupling)

•Industrial DC power supplies in renewable energy systems
