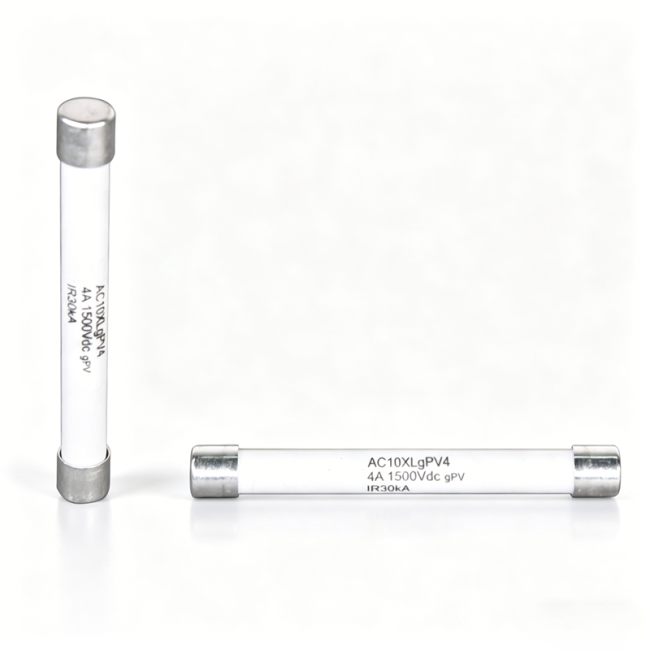

The High Current Solar PV Fuse in the 10×85mm form factor is a robust overcurrent protection device designed for demanding photovoltaic systems. Rated at 1500V DC and compliant with solar industry standards, this fuse is capable of handling higher continuous currents, with a broad rating range from 2A up to 30A. It is an ideal solution for large-scale solar arrays, high-power strings, and commercial PV installations requiring reliable DC protection.


Specifications of 10x85mm Ceramic Fuse

Product Name: Fuse Link

Rated Current: 2A-30A

Rated Voltage: 1500VDC

Main Material: Ceramic

Ends Material: Brass

Breaking Capacity: 30kA @ 1500VDC

Utilization category according to IEC 60269: gPV

Application: for Solar Applications

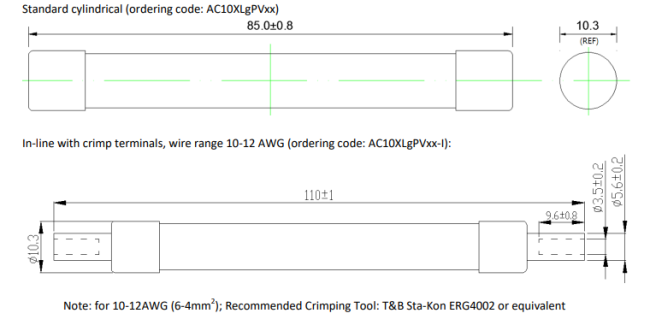

Dimension of 10x85mm Ceramic Fuse

Features of 10x85mm Ceramic Fuse

•High Current Ratings: Available in 2A, 4A, 5A, 10A, 12A, 15A, 20A, 25A, and 30A, offering flexibility for various string currents and system configurations.

•1500V DC Rating: Suitable for modern high-voltage PV systems, reducing string combiner losses and improving overall system efficiency.

•10×85mm Cylindrical Ceramic Body: Larger than standard 10×38mm or 10×57mm fuses, providing increased current-carrying capacity and enhanced arc-extinguishing performance.

•High Breaking Capacity: Engineered to safely interrupt high fault currents in DC circuits, protecting inverters, combiner boxes, and cabling from damage.

•Excellent Thermal Management: The ceramic housing ensures superior heat dissipation and mechanical strength under continuous high-current operation.

•PV-Optimized Design: Specifically developed for photovoltaic applications, addressing the unique challenges of DC arc suppression and long-term reliability in solar environments.



Applications of 10x85mm Ceramic Fuse

•Main string protection in 1500V DC solar PV systems

•High-current PV combiner boxes and array junction boxes

•DC output protection for large-format solar panels and high-wattage strings

•Commercial and utility-scale ground-mount solar farms

•DC side of 1500V central and string inverters

•Solar pumping stations, agrivoltaics, and floating PV systems

•Overcurrent protection in battery-coupled DC systems for energy storage
