PCB Mounting Industrial Power Fuse 10x38mm 500VAC 125VDC 31.5A 32A 40A 50A 63A 80A 1.5kA for Charging Pile


PCB Mounting Industrial Power Fuse 10x38mm 500VAC 125VDC 31.5A 32A 40A 50A 63A 80A 1.5kA for Charging Pile

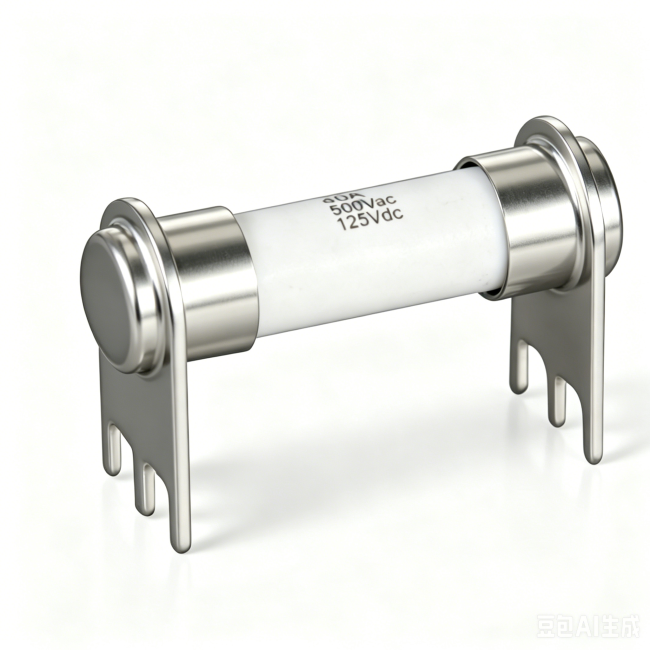

The PCB Mounting Industrial Power Fuse in the 10×38mm form factor is a high-performance overcurrent protection device designed for AC and DC power circuits in industrial applications. Rated at 500VAC and 125VDC, this fuse series offers a wide current range from 31.5A to 80A, including 31.5A, 32A, 40A, 50A, 63A, and 80A. Featuring a PCB-mountable design, it is specifically suited for use in electric vehicle (EV) charging piles (charging stations) and other industrial power equipment.

Specifications of Industrial Power 10x38mm Fuse

Product Name: Industrial Power Fuse

Rated Current: 31.5A-80A

Rated Voltage: 500VAC/125VDC

Main Material: Ceramic

Ends Material: Brass

Breaking Capacity: 1500A@500VAC 1500A@125DC

Mounting: PCB Mounting

Application: for Industrial Power

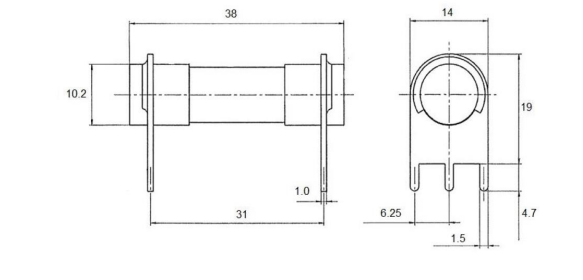

Dimension of Industrial Power 10x38mm Fuse

Features of Industrial Power 10x38mm Fuse

•PCB Mounting Design: Allows direct soldering onto printed circuit boards for compact, reliable, and vibration-resistant installation—ideal for modern charging pile electronics.

•Wide Current Range: Available in 31.5A, 32A, 40A, 50A, 63A, and 80A, covering typical power levels in AC and DC charging modules.

•Dual Voltage Rating: Rated at 500VAC for AC input protection and 125VDC for low-voltage DC circuits, offering flexibility in mixed-power designs.

•Compact 10×38mm Ceramic Body: Standard cylindrical size with ceramic housing providing excellent arc extinction, thermal dissipation, and mechanical strength.

•Breaking Capacity: Rated at 1.5kA, capable of safely interrupting moderate fault currents in charging pile power supplies and industrial control circuits.

•Industrial-Grade Reliability: Engineered for continuous operation under demanding conditions, including temperature fluctuations, humidity, and electrical noise common in EV charging environments.

Applications of Industrial Power 10x38mm Fuse

•AC input protection in EV charging piles (level 2 and DC fast chargers)

•DC output protection for low-voltage auxiliary power supplies within charging stations

•Power supply units (PSUs) for industrial battery chargers

•Rectifier modules and converter circuits in charging infrastructure

•Industrial control panels and automation equipment

•Power distribution units (PDUs) in EV fleet charging depots

•Protection for onboard chargers and charging cable monitoring systems
