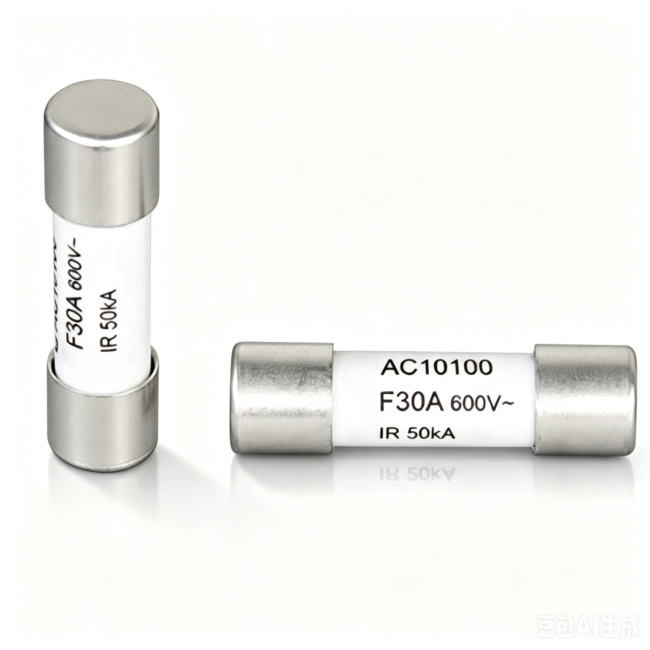

Fast Acting 10x38mm Ceramic Fuse 600VAC/DC 1A to 30A Industrial Power Fuse

Fast Acting 10x38mm Ceramic Fuse 600VAC 600VDC 1A 2A 3A 4A 5A 6A 8A 10A 12A 15A 20A 25A 30A

The Fast Acting 10×38mm Ceramic Fuse is a high-speed overcurrent protection device rated for both 600VAC and 600VDC circuits. Covering an extensive current range from 1A to 30A — including 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, and 30A — this fuse is designed to respond rapidly to fault conditions. Its fast-acting characteristic makes it ideal for protecting sensitive electronic components where even short-duration overloads or surges can cause damage.

Specifications of Fast Acting 10x38mm Ceramic Fuse

Product Name: Industrial Power Fuse

Rated Current: 1A-30A

Rated Voltage: 600VAC/DC

Main Material: Ceramic

Ends Material: Brass

Breaking Capacity: 1A-30A 50kA@600Vac,1A-30A 50kA@600Vdc

Application: for Industrial Power

Dimension of Fast Acting 10x38mm Ceramic Fuse

Features of Fast Acting 10x38mm Ceramic Fuse

•Fast-Acting Response: Provides instantaneous interruption under overcurrent conditions, minimizing exposure of downstream components to fault energy.

•Dual High-Voltage Rating: Rated at 600VAC and 600VDC, offering versatile protection for both AC and DC applications with a single fuse series.

•Wide Current Selection: Available in 13 ratings from 1A to 30A, allowing precise coordination with various load requirements.

•Compact 10×38mm Form Factor: Standard industrial size compatible with common fuse holders, blocks, and panels.

•Ceramic Body Construction: Delivers superior arc-quenching capability, high thermal stability, and excellent mechanical strength.

•High Breaking Capacity: Engineered to safely clear severe fault currents in both AC and DC circuits, reducing the risk of equipment damage or fire.

Reliable Performance: Fast-acting design ensures consistent tripping characteristics, even under challenging operating conditions.

Applications of Fast Acting 10x38mm Ceramic Fuse

•Protection of sensitive power supplies (SMPS) and DC-DC converters

•Input/output protection for inverters, rectifiers, and drives

•Control circuits in industrial automation and PLC systems

•AC and DC auxiliary circuits in HVAC, lighting, and instrumentation

•Battery management systems (BMS) and energy storage equipment

•Protection for semiconductor devices, capacitors, and other sensitive electronics

•Test and measurement equipment requiring fast fault clearing
