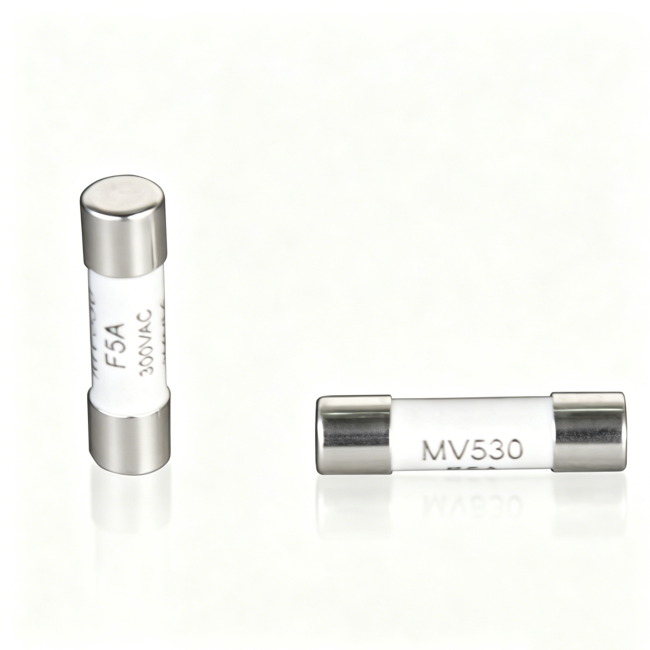

High Breaking Capacity Fast Acting 5x20mm DMI Ceramic Fuse 300V 250mA 400mA 500mA 600mA 10A

The High Breaking Capacity Fast Acting 5×20mm DMI Ceramic Fuse is a compact, high-performance protection component specifically engineered for digital measuring instruments (DMIs) and portable test equipment. Rated at 300V AC/DC, this fuse series offers precise current ratings of 250mA, 400mA, 500mA, 600mA, and 10A. Despite its miniature 5×20mm size, it delivers exceptional fault current interruption capability, making it an ideal choice for applications where space is limited but safety and reliability cannot be compromised.


Specifications of 300V 5×20mm Ceramic DMI Fuse

Product Name: DMI Fuse
Rated Current: 250mA-10A
Rated Voltage: 300VAC/DC
Main Material: Ceramic
Ends Material: Brass
Breaking Capacity: 3000A@300V AC/DC
Application: Digital measuring instrument, new energy. industrial control

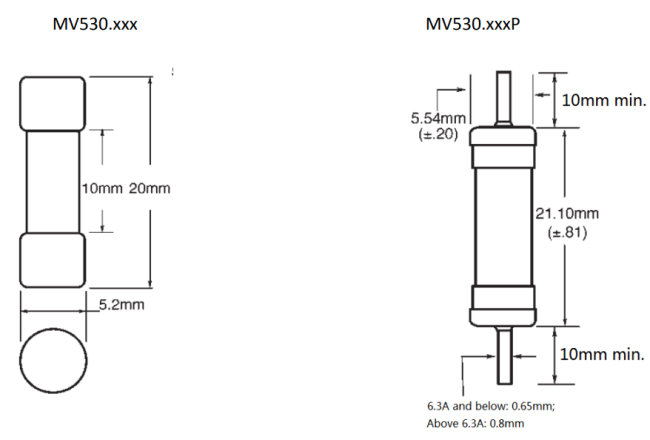

Dimension of 300V 5×20mm Ceramic DMI Fuse






Features of 300V 5×20mm Ceramic DMI Fuse



•High Breaking Capacity: Capable of safely interrupting severe fault currents within a compact 5×20mm ceramic body, providing superior protection for both sensitive instruments and users.

•Fast-Acting Performance: Instantaneous response to overcurrent conditions minimizes energy let-through, safeguarding delicate measurement circuits, precision shunts, and input protection components.

•300V AC/DC Rating: Suitable for both alternating and direct current measurement applications up to 300V, covering common industrial, automotive, and low-voltage electrical systems.

•DMI-Specialized Design: Engineered specifically for digital measuring instruments, ensuring precise and consistent tripping characteristics that do not interfere with measurement accuracy or cause nuisance blowing.

•Compact 5×20mm Form Factor: Standard miniature size compatible with most handheld multimeters, portable testers, and other space-constrained instruments.

•Ceramic Construction: Provides superior arc-quenching capability, high dielectric strength, and excellent thermal stability compared to glass fuses, reducing the risk of rupture under fault conditions.

•Wide Current Selection: Available in 250mA, 400mA, 500mA, 600mA (for low-current mA/μA inputs), and 10A (for high-current measurement ranges).



Applications of 600V 6×32mm DMI Fuse



•Handheld digital multimeters (DMMs) accepting 5×20mm fuses

•Portable clamp meters and current testers

•Battery-powered measuring and diagnostic instruments

•Automotive diagnostic tools (12V / 24V / 48V systems)

•Data loggers and portable calibrators

•Low-voltage industrial control panels and test points

•Laboratory test leads and accessory protection

•Replacement fuses for compact multimeters from major brands
