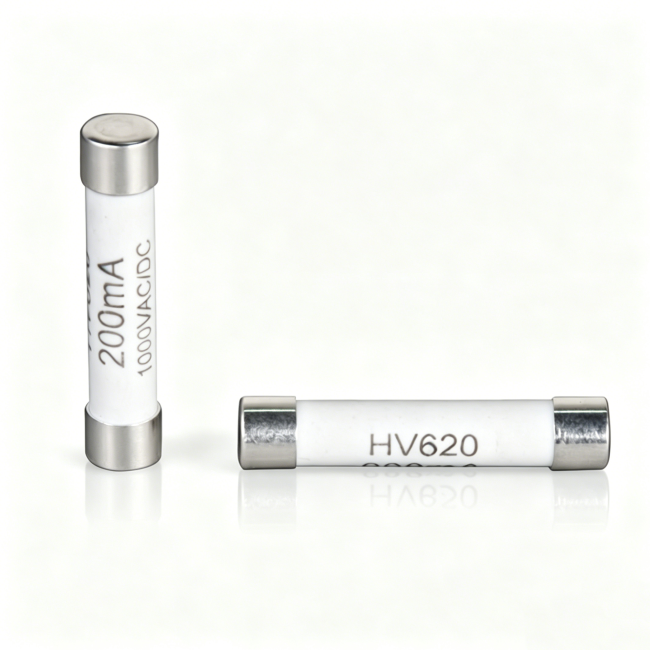

Fast Acting 6x32mm DMI Fuse 1000V 200mA 250mA 315mA 400mA 500mA 600mA 800mA 1A 1.25A 1.6A 2A 2.5A 3A

The High Voltage 6×32mm DMI Fuse is a precision protection component designed for digital measuring instruments operating in high-voltage environments. Rated at 1000V AC/DC, this fuse series offers current ratings from 200mA to 3A, including 200mA, 250mA, 315mA, 400mA, 500mA, 600mA, 800mA, 1A, 1.25A, 1.6A, 2A, 2.5A, and 3A. Housed in the compact 6×32mm (3AG) cylindrical body, it provides reliable overcurrent protection while enabling safe high-voltage measurements in CAT III and CAT IV applications.


Specifications of 1000V 6×32mm DMI Fuse

Product Name: DMI Fuse
Rated Current: 200mA-3A
Rated Voltage: 1000VAC/DC
Main Material: Ceramic
Ends Material: Brass
Breaking Capacity: 200mA-1A 10kA@1000Vac/dc, 1.25A-3A 10kA@1000Vdc
Application: Digital measuring instrument, new energy. industrial control

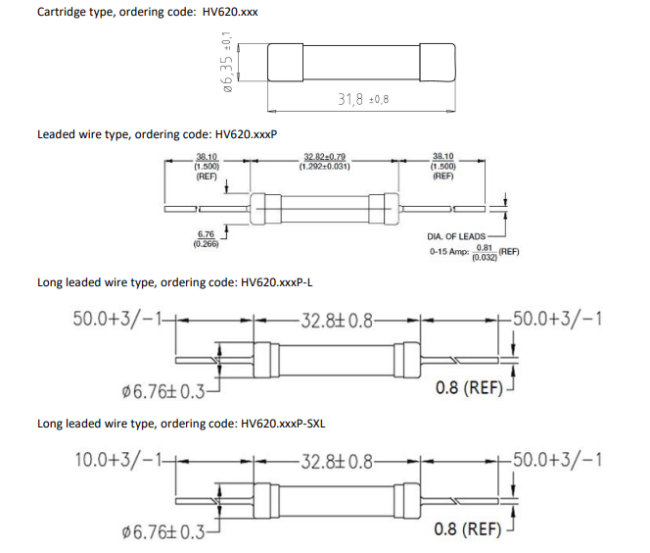

Dimension of 1000V 6×32mm DMI Fuse






Features of 1000V 6×32mm DMI Fuse



•High Voltage Rating: Rated at 1000V AC/DC, suitable for high-energy measurement environments including 1000V solar systems, industrial power distribution, and utility applications.

•DMI Specialized Design: Engineered specifically for digital multimeters and measuring instruments, ensuring precise tripping characteristics that protect sensitive input circuits without interfering with measurement accuracy.

•Standard 6×32mm (3AG) Form Factor: Compatible with most multimeters, panel meters, and test equipment designed to accept this industry-standard size.

•Precise Current Range: Available in 13 ratings from 200mA to 3A, covering low-current mA/μA inputs and intermediate measurement ranges.

•Compact Ceramic Construction: Provides superior arc quenching, high dielectric strength, and mechanical robustness to withstand high-voltage fault conditions without rupturing.

•High Breaking Capacity: Capable of safely interrupting fault currents encountered in high-voltage DC circuits (e.g., PV strings, battery banks) and AC power systems.

•Fast-Acting Characteristic: Responds quickly to overcurrent events, minimizing potential damage to precision shunts, input protection circuits, and ensuring operator safety.

Applications of 1000V 6×32mm DMI Fuse

•High-voltage digital multimeters (1000V CAT III / CAT IV rated)

•PV solar installation testers and insulation testers

•Power quality analyzers for high-voltage systems

•Industrial multimeters used in 1000V DC battery and solar applications

•EV (electric vehicle) high-voltage system diagnostic tools

•Laboratory and calibration equipment for high-voltage measurement

•Panel meters in high-voltage distribution panels

•Replacement fuses for Fluke 87V, 287, 289, and other 1000V-rated DMMs
