Radial Lead Micro Fuse 50mA 63mA 80mA 100mA 125mA 160mA 200mA 250mA 315mA 400mA 500mA 630mA 800mA

Radial Lead Micro Fuse 50mA 63mA 80mA 100mA 125mA 160mA 200mA 250mA 315mA 400mA 500mA 630mA 800mA

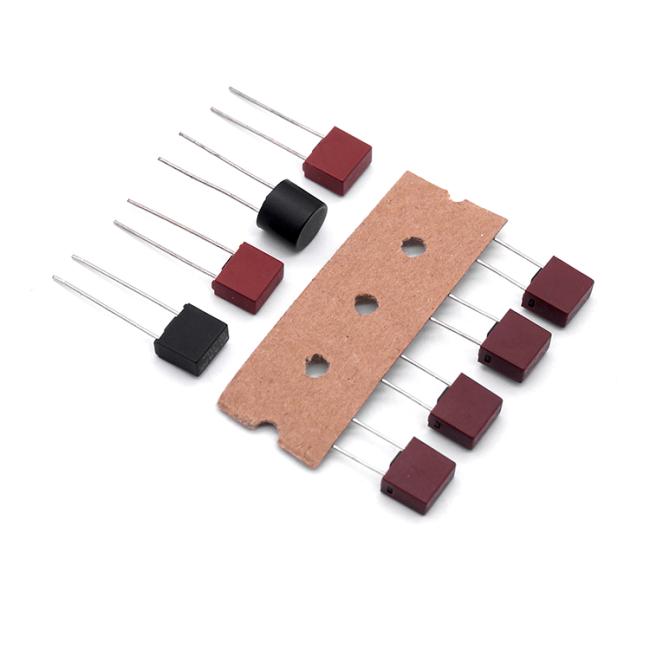

Product Features of Square Type Subminiature Fuse

1. Pin tensile strength: 5 N 10±1 S

2. Pin thrust strength: 2 N 10±1 S

3. Solderability: wave soldering: 260℃, ≤ 3S; iron soldering: 350±10℃, ≤1S

4 Welding heat resistance: wave soldering: 260℃, 10s; iron soldering iron: 350℃, 3S

Electrical Characteristics of Square Type Subminiature Fuse

1. Experimental conditions
The ambient temperature for all tests is 25±5℃.

2. Segmentation ability
Fuse withstand segment capacity: at 250V AC power supply, 35A or 10 times the rated current among the larger.
The insulation resistance of the fuse after the sectional ability test is greater than 0.1MΩ.

3. Temperature rise test
The temperature rise at any part of the fuse is measured not to exceed 135 ° C and the ambient temperature is 25±5 ° C when the fuse is disconnected by 1.5 times the rated current for 15 minutes, followed by 0.1 times the rated current every 15 minutes.

Application of Square Type Subminiature Fuse

This product is suitable for various kinds of electronic devices’ circuit over current protection. Widely used in industrial of Battery Charges, Consumer Electronics, Power supplies, Industrial Controllers, etc.
