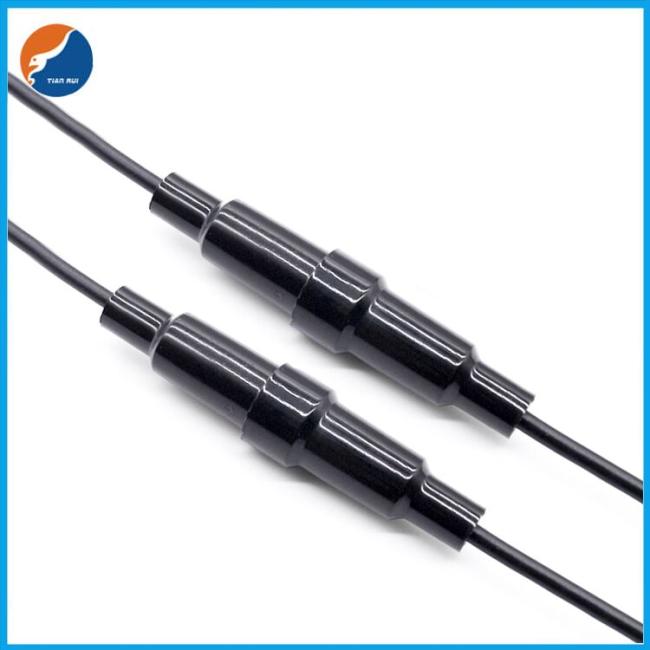

UL1015 Wire 16 Cable Gauge 3AG AGC 6x30MM 30A Inline Fuse Holders Bakelite Screw Type
Bakelite Screw Type In-line 3AG AGC 6X30MM Ceramic Glass Tube Inline Fuse Holder
Specification of Tube Inline Fuse Holder
IN-LINE FUSEHOLDER
FOR 6.35X30mm and 6.35X32mm FUSES
| APPLICABLE | FOR 3AG FUSE TYPE AGC SFE,JSO AND MFA. |
| ELECTRICAL RATING | MAX. 30A |
| INSULATING BODY | NYLON ,BLACK |
| AVAILABLE WIRE GAUGE | #12~#20 |
| WIRE LENGTH | CUSTOMIZED |
Description of Bakelite Inline Fuse Holder
Fuse holders can be used in any applications where you need to ensure electrical protection, isolation and switching under load of inductive or resistive loads. The technology solutions applied to reduce power dissipation help to minimize module heating.
Fuse holders are suitable for protection against overloads and short circuits.

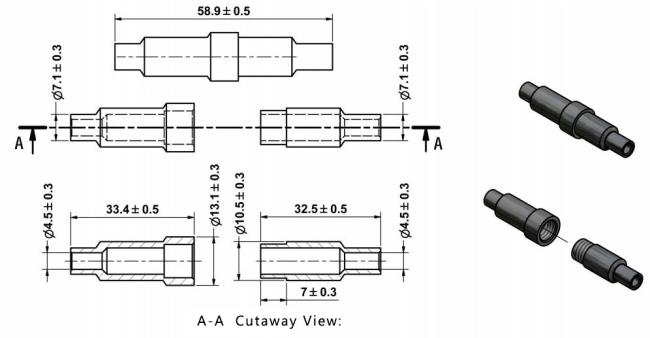

Dimension of In-line Ceramic Glass Fuse Holder
