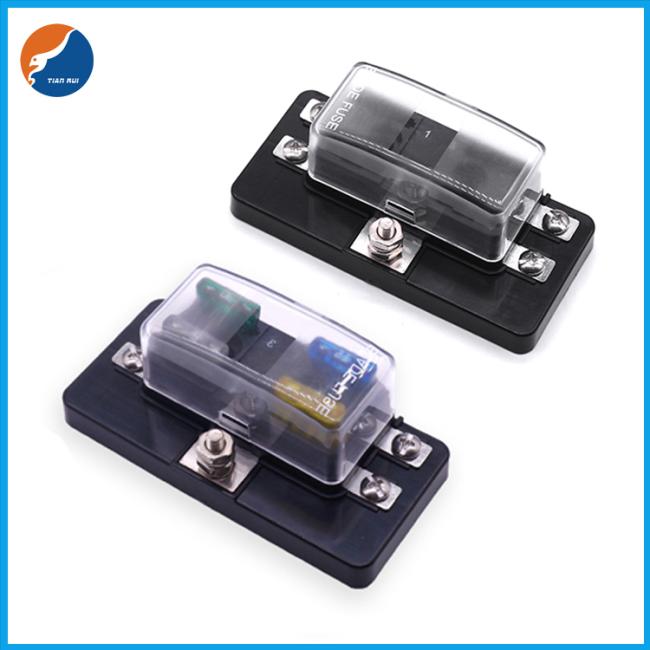

PBT Base PC Transparent Cover 4 Ways Automotive Car Blade Fuse Box With Screw Terminals
PBT Base PC Transparent Cover 4 Ways Automotive Car Blade Fuse Box with Screw Terminals
Specifications of PBT Base PC Transparent Cover 4 Ways Automotive Car Blade Fuse Box with Screw Terminals
Product name: 4 Ways Blade Fuse Holder without LED indicator
Material: PC cover, transparent; PBT body, black; Terminal: copper tin plated.
Weight: 4 ways-65g
Voltage: 32VDC (common use within 32V)
Current: The maximum can withstand 100A, it is recommended that each circuit does not exceed 30A.
Applicable fuse: standard blade fuse (1A-30A).
Applicable terminals: Y-type terminal on the input end, which can be used with #4-6AWG wire; 250 in-line terminals for the output end, which can be used on #12-16AWG wire.
| Max Current Rating | 30A per Circuit - 100A Max Input |
| Fuse Type | Regular Auto Blade Fuse- ATC ATO. |
| Base | PBT (UL flame: 94V-0), Black |
| Cover | PC (UL flame: 94V-2 ), Transparent |
| Push Button | POM (White) |
| Terminals | Copper, Tin plated |
| Mechanical Dimensions | Inches [mm] |
| Temperature Rating | -20° C~ +85° C . |
Drawing of PBT Base PC Transparent Cover 4 Ways Automotive Car Blade Fuse Box with Screw Terminals
Application of PBT Base PC Transparent Cover 4 Ways Automotive Car Blade Fuse Box with Screw Terminals
Suitable for electric vehicles, auto audio, auto assembly insurance, sightseeing/fire fighting/new energy vehicles, forklifts, air conditioners, buses and high-power meters, instruments, generators, etc.
