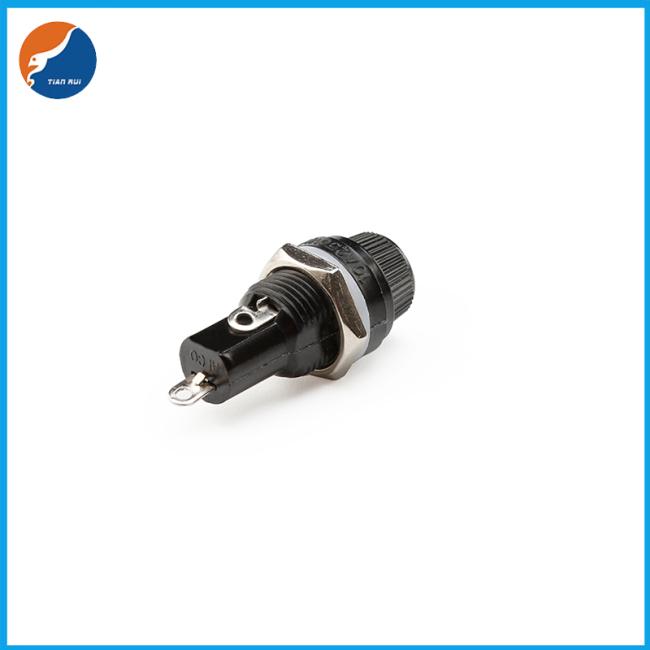

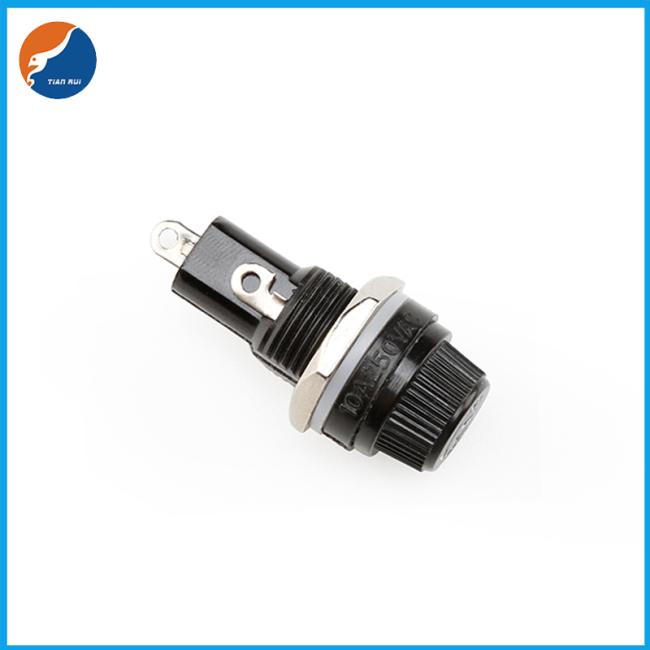

OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
OP520 Series Panel Mount Fuse Holder For Glass Ceramic 5x20 Fuse
Model No. OP520
Rating: 10A 250VAC
Fuse Size: Φ 5.2 X 20 mm
Insulation resistance: DC 500V 100MΩ Min
Voltage breakdown AC 1500V 1 minute
Specification
| Electrical | Rated at 10A 250VAC |
| Fuse | 5.0x20mm |
| Insulating Body | NYLON |
| Konb |

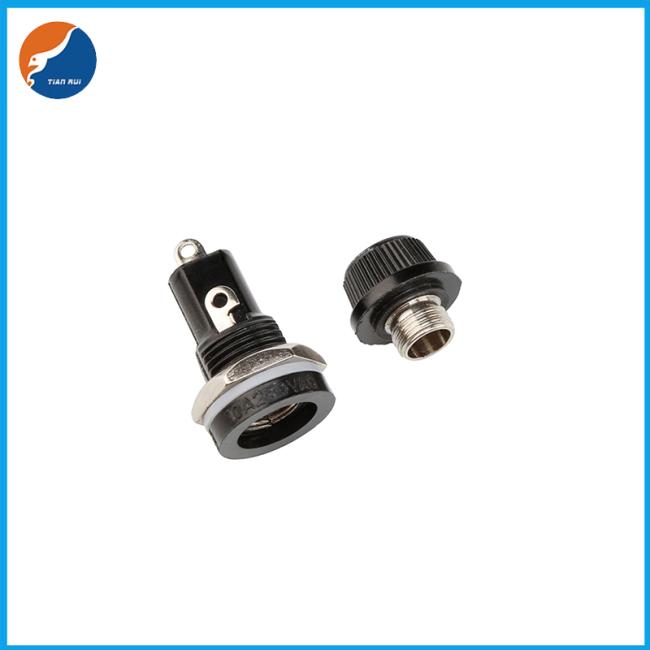

Screw-driver slot fuse extractor type with nickel-plated copper alloy insert. Spring loaded. |
| Terminals | Nickel-plated copper alloy,right angle teminal,solder type. |
Features
The durable PBT shell material is not easy to corrode
The metal clip has strong electrical conductivity and has an overload fuse protection function
Panel installation is simple and convenient to strictly follow safety standards
Application
Circuit overload protection, automotive electronics, household appliances, beauty equipment, medical equipment, instrumentation, consumer electronics, industrial controllers

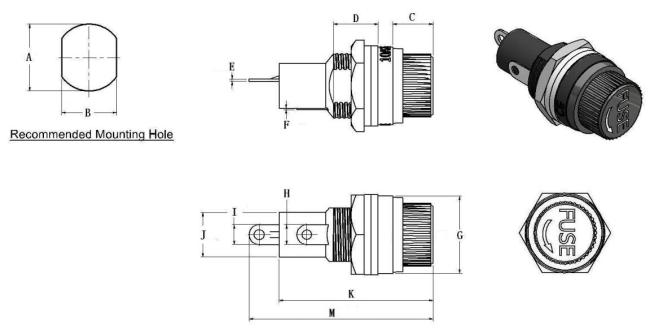

Drawing
