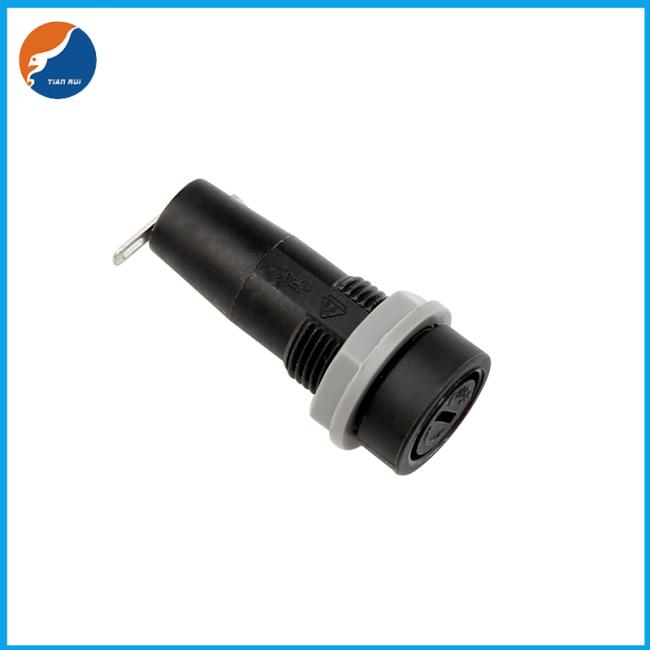

PTF35 Round Screw Type 10A 250V 5X20MM Glass Fuse Panel Mount Fuse holder
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
5-7 Days
Brand:
Tian Rui
Product Description
PTF35 Round Screw Type 10A 250V 5X20MM Glass Fuse Panel Mount Fuse holder
FUSE HOLDER PANEL MOUNT TYPE FOR FUSES 5.2X20mm
SPECIFICATIONS
| Rated current | 10A 250V |
| Insulation resistance at 500V DC | 100MQ Min. |
| Contact resistance | 5mΩ at 1A DC |
| Dielectric strength for 60 seconds | AC 2000V min. |
| Plastic material for body and cover | PBT |
| Insulating body | Flame retarding UL 94V0 thermoplastic material. |
| Contact | Nickel or tin plated copper alloy |
| Cap type | Screw Type |
| Usage | For panel mounting |
| Mounting | Fastening by nut |
| Satety Approval | UL ROHS |
Scope of Application
power adapters, car navigation, mobile phones, LCD TVs, notebook computers, communication equipment, instruments, tuners, wireless remote control materials, car audio equipment, household industrial electrical appliances and other electronic products
Product Advantages
(1) Small size, easy to install and use
(2) Shell insulation, flame retardant
(3) One-word spiral bakelite material
(4) 5*20 fuse installation
Drawing
