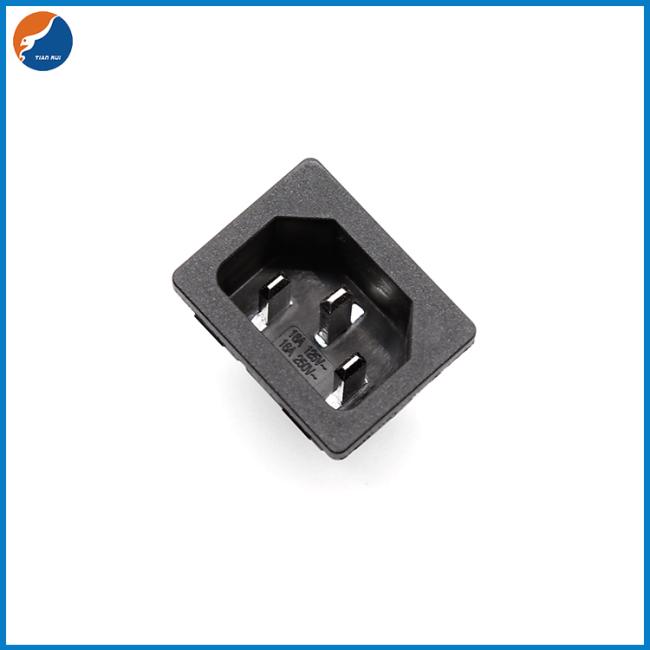

R14-A-1CB1 C14 Electric Insert Male AC Plug Power Connector Socket 10A 250V For Home Appliances

R14-A-1CB1 C14 Electric Insert Male AC Plug Power Connector Socket 10A 250V For Home Appliances

Specification of AC Power Connector Socket

Product name: AC plug power socket
Model Number: R14-A-1CB1
Type: Plug With Socket
Rated Voltage: 250V
Rated Current: 10A

Material: Plastic
Color: Black White

Plug type: 3 Pin IEC

Function: Electrical Outlet Connection
Configuration: 3*outlet

Certification: UL KC CQC CCC
Application: Industrial

Usage: Home Applicance
MOQ: 1000pcs
Packing: PE bag

Features of C14 Power Socket

Screw installation: Power socket with screw mounting hole, easy to fall off, easy to install.

Secure self-locking clamp: Power socket with double/side self-locking latch,easy to fall off.

Multiple connection mode: Different types of cables can be connected to 4.8MM wiring terminals or welding lines to connect the circuit board.

Application of C14 Electric Insert AC Power Socket

The power sockets are widely applied to control all kinds of Medical equipment, Commercial food machine, Household appliances such as the mist mechanism, Baling press, water dispenser, treadmill, coffee pot, and so on.

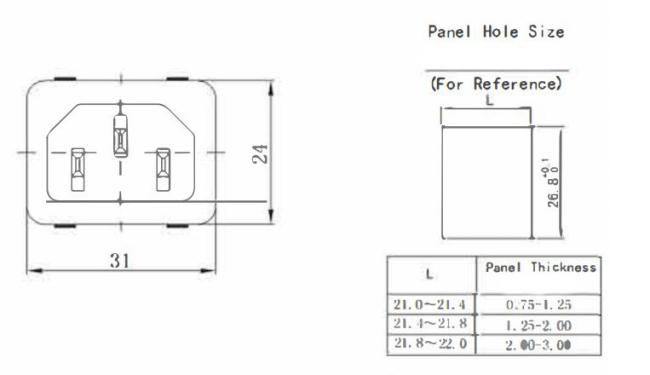

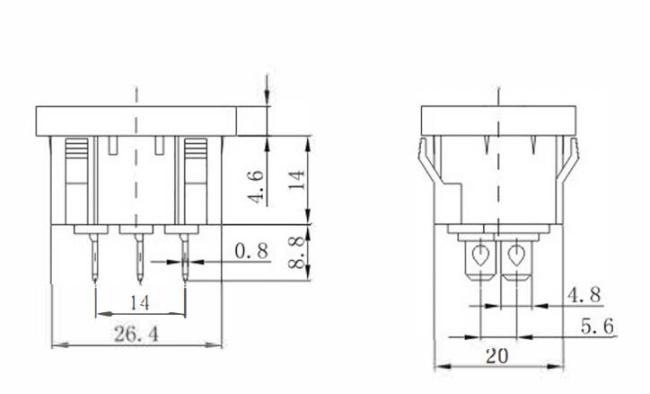

Drawing of Male AC Power Socket

We solemnly promise: The company's products use environmentally friendly materials, the socket shell material is imported PA66 or PBT raw material, and the conductor material is environmentally friendly copper. Eliminate the use of manganese steel, iron and other alternative materials. We produce in strict accordance with CCC, VDE, UL, CE and other well-known certification system standards at home and abroad. Please note: Inferior products will bring serious safety hazards and health to consumers.
