SL-25A Middle Medium Standard ATO ATC ATY 257 287 Car Blade Fuse Clip
SL-25A Middle Medium Standard ATO ATC ATY 257 287 Car Automotive Auto Blade Fuse Clip

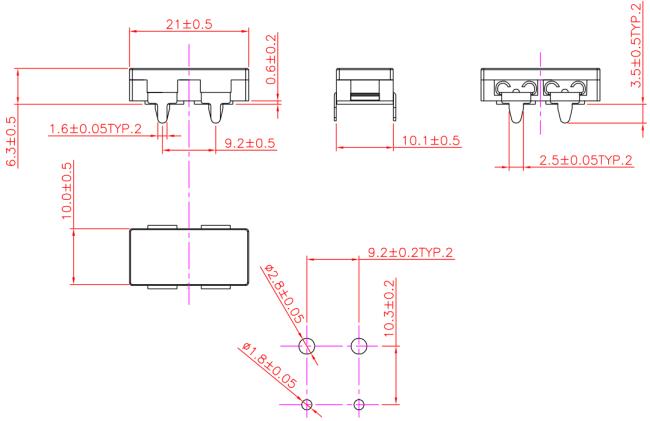

Specification
1. Material: Contacts--brass, T=0.3mm; Insulator--Glass Filled PBT, 94-V0;
2. Terminal finish: Tin plated;
3. Removed burrs and sharp edge.
4. For ATO/ATC/ATN/257 automotive blade Fuses.
5. Suitable rated current: 30A@500VAC.
6. Flammability Rating: 94V0
7. Use fuse type: blade type fuse , auto insert fuse , car plug-infuse , automotive fuse
8. Other: Environmental protection product , High temperature material
| Insertion and extraction force | 1Kg Min |
| Dielectric Strength | Min .AC1000V |
| Contact Resistance | Max 50mw |
| Temperature rise | 50° Max |
| Insluation Resistence At 500V DC | 100Mw |
Application
Products are widely used in LED drive power energy-saving lamps, mobile communications, computers, consumer electronic information products, household appliances, industrial automation control equipment.
