1 Pole 10x38mm Ceramic Cylinder Fuses Holder 600V 700V Fuse Base

Model Number: MH1P

600Vac/dc @ 200kA

700Vdc @ 50kA

Description of 1 Pole 10x38mm Ceramic Cylinder Fuses Holder 600V 700V Fuse Base

The MH series fuse base accommodates the installation of 10x38mm series small radial fuses. A choice of base, screw, or pressure plate connectors are available for mounting with a wide range of stranded or solid copper wire. The base material is glass fiber filled polycarbonate (GFPC) with a proven maximum dielectric strength of over 2500 V. It can be divided into 1&3 pole modules, and can form multi-pole segments, as many poles in parallel as possible. All matching fuse contact part clips are made of high conductivity tinned copper alloy.

Advantages of 1 Pole 10x38mm Ceramic Cylinder Fuses Holder 600V 700V Fuse Base

MH series fuse base has convenient installation method and space saving ability.
It can greatly improve the planning and utilization value of the installation area. It can be installed by rail or fixed position.
Applicable to the application of most modular areas.

Characteristic of 1 Pole 10x38mm Ceramic Cylinder Fuses Holder 600V 700V Fuse Base

1. Space saving design
2. Convenient universal installation method
3. The internal metal structural parts are clearly positioned and can be operated with one hand
4. High-quality metal parts, reduce contact resistance and heat transmission
5. There is a linkage function between the base modules, allowing any number of modules to be used in combination
6. Clips/Terminals: Tinned copper alloy end clips
7. Shell material: high thermoplastic polycarbonate containing glass fiber, in line with UL94-V0 flammability grade standard
8. Compliant with RoHS standard

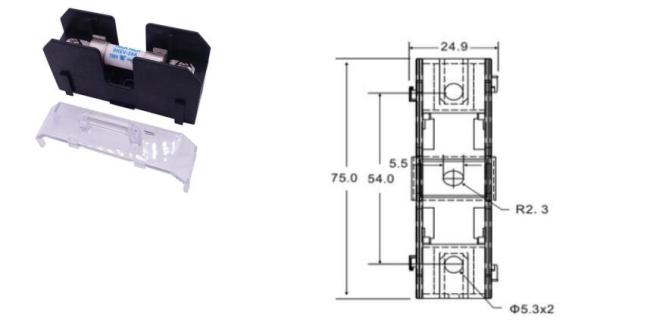

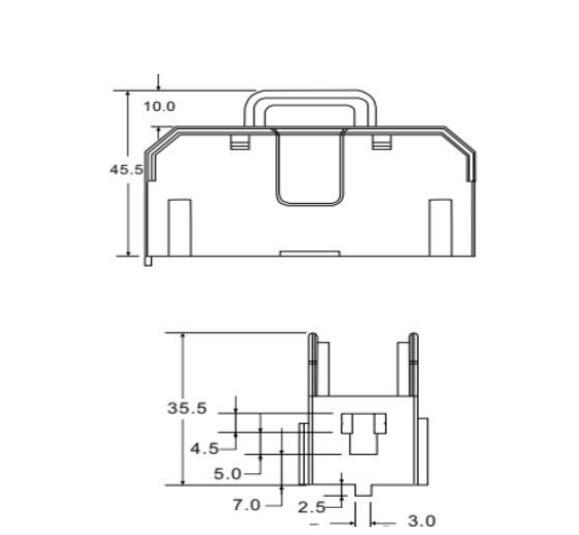

Dimension of 1 Pole 10x38mm Ceramic Cylinder Fuses Holder 600V 700V Fuse Base

(unit in mm)
