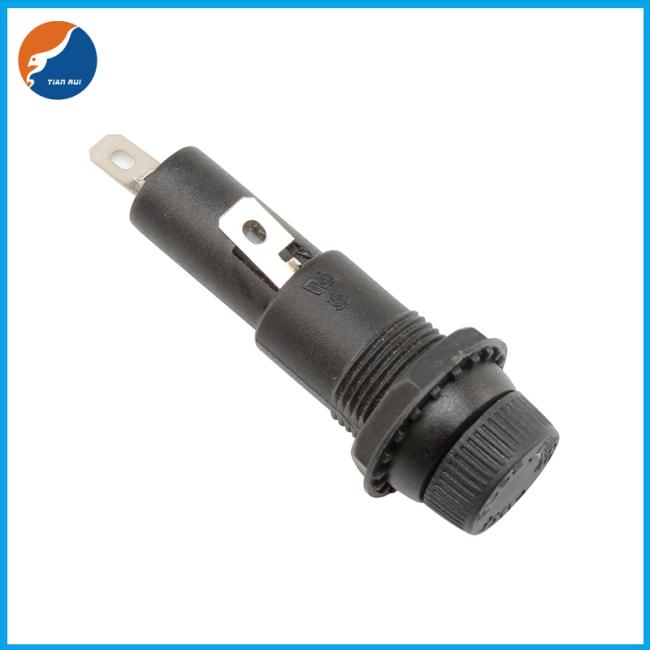

6x30mm 15A 250V AC Bayonet Panel Mount Glass Tube Fuse Holder
Price:
Negotiable
MOQ:
1000PCS
Delivery Time:
5-7 Days
Brand:
Tian Rui
Product Description
R3-46 6x30mm 15A 250V AC Bayonet Panel Mounted Glass Tube Fuse Holder
Rating: 15A 250V AC
Fuse size: 6x30mm tube fuse
Body: Phenolic
Cap: PBT, bayonet type
Terminal: 4.8mm(0.187''), Tin plated brass
Panel thickness: 0.5-4.5mm
| ●Material | |
| Body phenolic(UL flame.:94V-1). | |
| Cap | PBT(UL flame: 94V-0). |
| Terminal | tin plated brass, |
| ●Mounted by nut. | |
R3-46
| CAP | FUSE |
| A Bayonet (release by tool) | 6.4*31.8 /6.4*30 |
| B Bayonet (release by tool) | 5.0*20 |
| C Screw (release by tool) | 6.35*31.8 /6.4*30 |

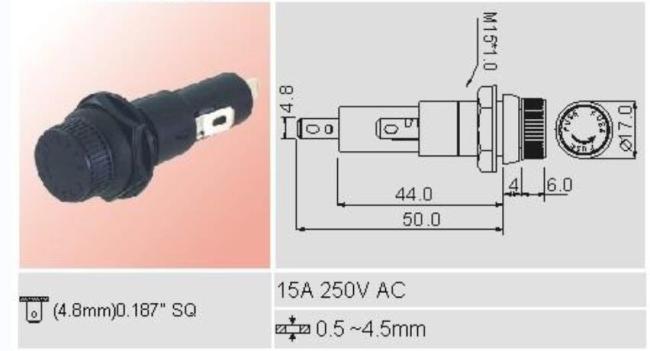

Drawing
