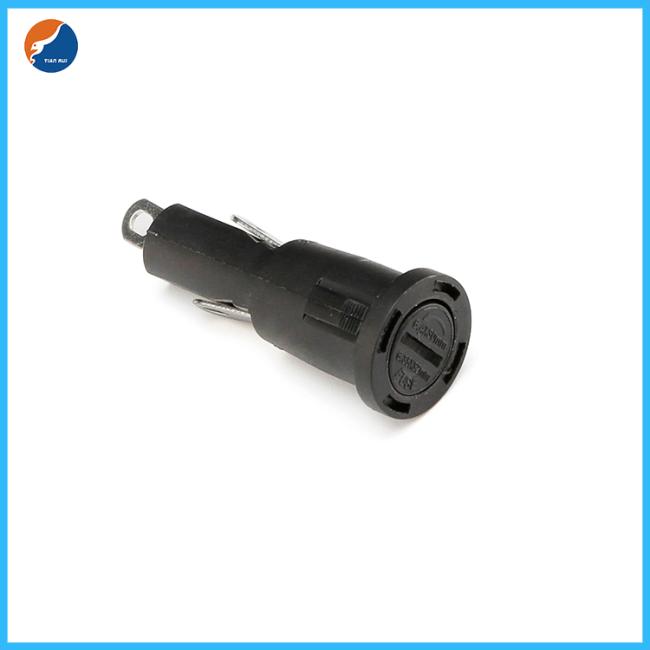

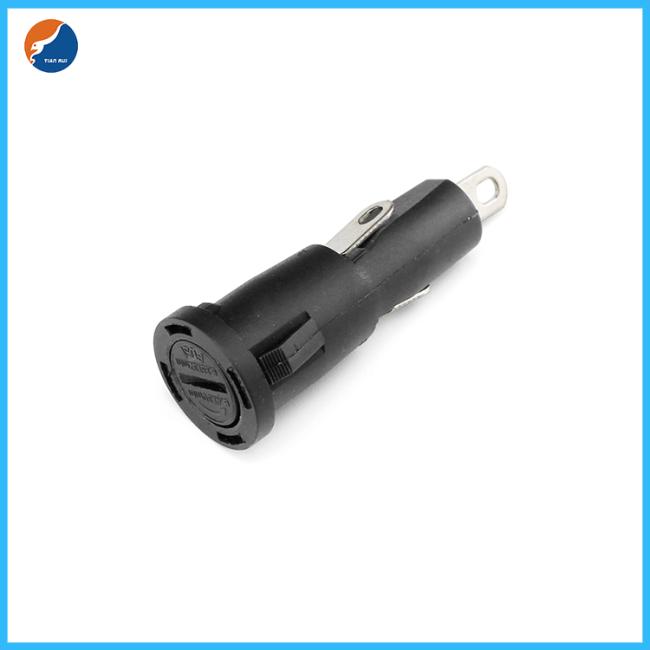

R3-55A 6.35x30mm 6.35x31.8mm 20A 250V Panel Mounted Sealed Fuse Holder
H3-55A 6.35x30mm 6.35x31.8mm Screw Type Nylon 20A 250V Panel Mount Sealed Fuse Holder
Rated Current: 20A
Rated Voltage: 250V AC
Fuse Size: 6.35x30mm 6.35x31.8mm
Terminal: (6.4mm) 0.250'' Solder
Panel Thickness: 0.75-3.5mm
Cap: Screw type(too release)
| Material | |
| Frame and cap: nylon(UL flame: 94V-2). | |
| Terminal | silver plated copper. |
| . Snap-in mounting, easy to install fuse holder into panel. | |
Features
High-quality high-temperature resistant shell + copper sheet: Environmental protection, good conductivity, not easy to oxidize
Stable mechanical performance and longer service life: Withstand voltage: AC 1500V 1 mintute; Insulation resistance: DC 500V 100M Ω
Strictly follow the implementation standard: GB/T2828.1-2012
Application
Applicable to all kinds of electrical equipment circuit overload protection. Widely used in power amplifier, DVD, speaker , massage chair and other electrical euipment.

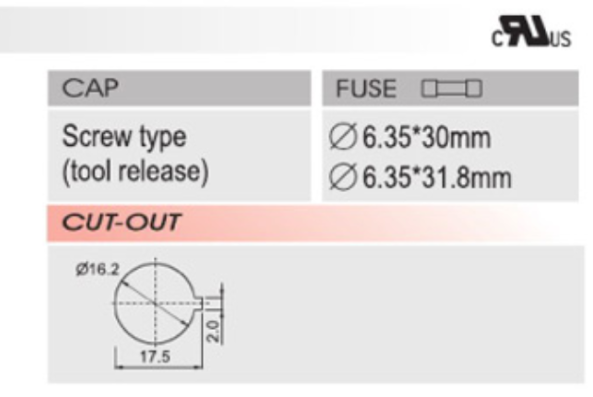

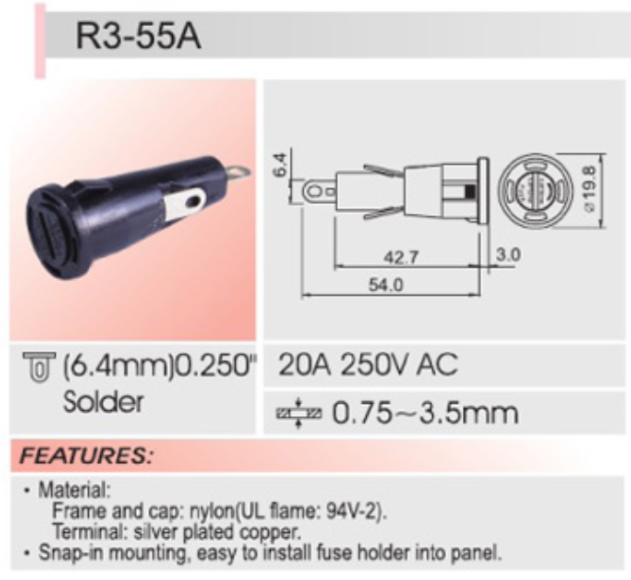

Drawing
