Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse PCB Board
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
5-7 work days
Brand:
Tianrui
Product Description

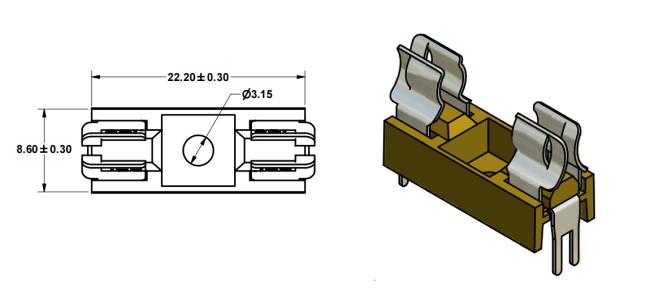

Insurance Tube Socket Fuse Holder For 5x20mm 5x20 Fuse Pcb Board
510F
Electrical Characteristics
| Nominal CurrentVoltage | 6.3A 250V |
| Operating Power | 1.6W |
| Contact Resistance | <5mΩ |
| Insulation Resistance | > 100MΩ |
| Dielectric Strength | > 3000Vac/60sec. |
| Insulation Body | Nylon+Glass FiberUL 94 V1 |
| Contact Fuse Clip | CuZn37 Tin Plated |
510G
Electrical Characteristics
| Nominal CurrentVoltage | 6.3A 250V |
| Operating Power | 1.6W |
| Contact Resistance | <5mΩ |
| Insulation Resistance | > 100MΩ |
| Dielectric Strength | > 3000Vac/60sec. |
| Insulation Body | Nylon+Glass FiberUL 94 V0 |
| Contact Fuse Clip | CBrass, Tin Plated |
510H
Electrical Characteristics
| Nominal CurrentVoltage | 6.3A 250V |
| Operating Power | 1.6W |
| Contact Resistance | <5mΩ |
| Insulation Resistance | > 100MΩ |
| Dielectric Strength | > 3000Vac/60sec. |
| Insulation Body | Nylon+Glass FiberUL 94 V0 |
| Contact Fuse Clip | CBrass, Tin Plated |
510I
Electrical Characteristics
| Nominal CurrentVoltage | 6.3A 250V |
| Operating Power | 1.6W |
| Contact Resistance | <5mΩ |
| Insulation Resistance | > 100MΩ |
| Dielectric Strength | > 3000Vac/60sec. |
| Insulation Body | Nylon+Glass FiberUL 94 V1 |
| Contact Fuse Clip | CuZn37 Tin Plated |
510K
Electrical Characteristics
| Nominal CurrentVoltage | 6.3A 250V |
| Operating Power | 1.6W |
| Contact Resistance | <5mΩ |
| Insulation Resistance | > 100MΩ |
| Dielectric Strength | > 3000Vac/60sec. |
| Insulation Body | Nylon+Glass FiberUL 94 V0 |
| Contact Fuse Clip | CBrass, Tin Plated |
