520-PTF60 5x20mm Glass Ceramic PCB Mounting Fuse Holder 5.2mm Fuse Block
Price:
Negotiable
MOQ:
1000pcs
Delivery Time:
5-7 work days
Brand:
Tianrui
Product Description

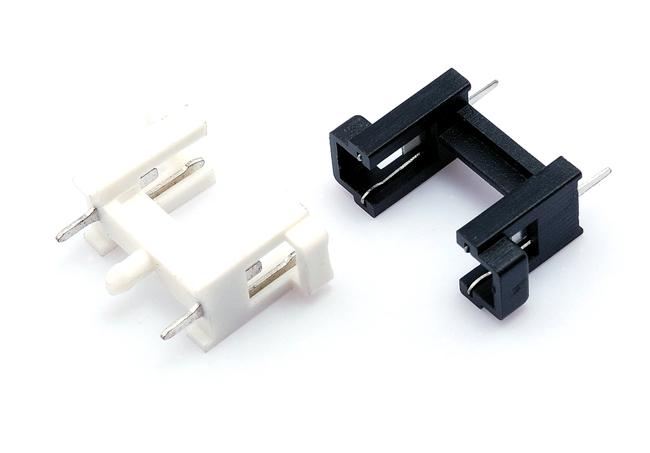

520-PTF60 5x20mm Glass Ceramic PCB Mounting 5.2mm Fuse Block
5.2mm FUSE BLOCK
Specifications
| Electrical | Rated for currents up to 10A |
| Clip/Terminals | Nickel-plated or Tin-plated spring Brass |
| Insulation | Nylon |
| #Specification | |
| Insertion & Extraction Force= 1 kg.Min. | |
| Dielectric Strength For 60 Seconds=AC 2000 V Min. | |
| Suitable Rated Current=6.3A 250V | |
| Insulation Resistance At 500V DC=1 00M ΩMin. | |
| Temperature Rise=50°C Max. | |
| Voltage Drop=20 mV Max. | |
