646 PC Board Mounting Fuse Holder 10A 250V for 5x20mm Glass Fuse
PC Board Mounting Fuse Holder 6.3A 250V for 5x20mm Glass Fuse

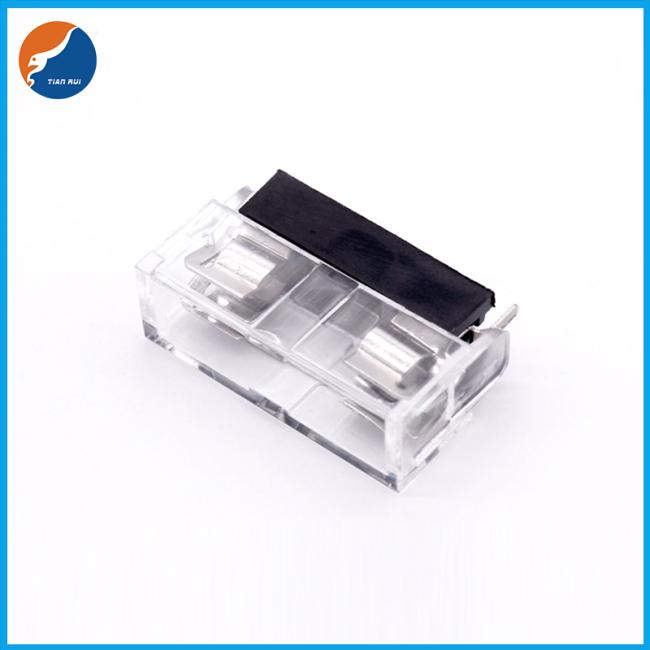

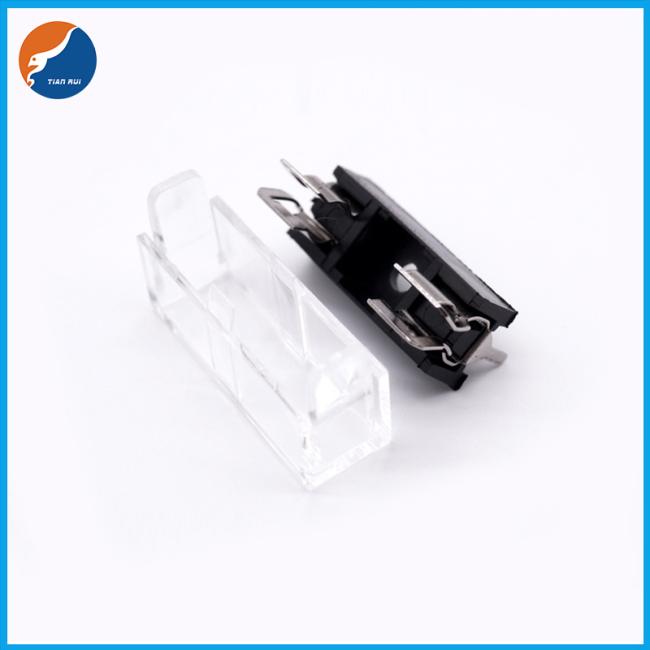

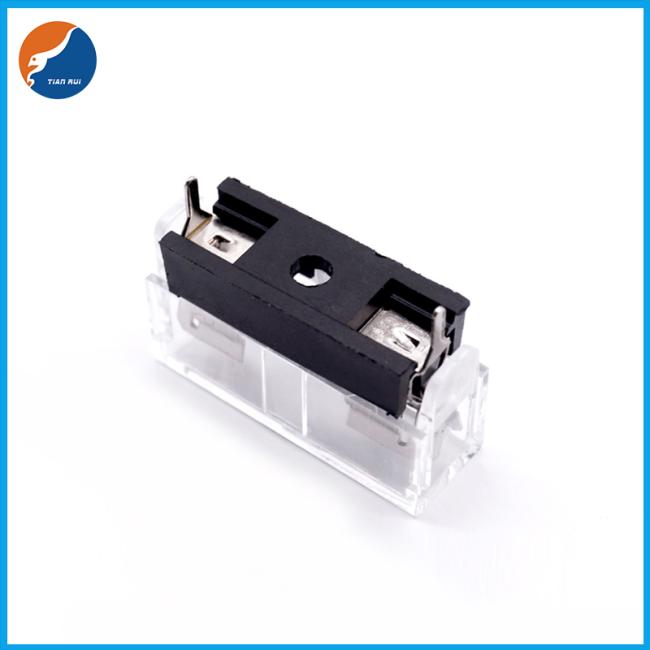

Product name: PTF-15 PCB Fuse Holder
Current Rating: 10A
Voltage Rating: 250V
Material: PBT
Plated: Tin plated
Fuse Specification: 5x20mm Tube Fuse
Mounting: PCB
Net Weight: 3.2G
| Operating Power | 1.6W |
| Contact Resistance | <5mQ |
| Insulation Resistance | > 100MQ |
| Dielectric Strength | 3000Vac/60sec. |
Features
High-quality flame-retardant shell + copper sheet, environmental protection, good electrical conductivity, not easy to oxidize.
Stable mechanical performance and longer service life
Strictly follow the implementation standards
Application
Suitable for all kinds of small appliance control board. Widely used in household appliances, beauty equipment, medical equipment, instrumentation, electrical consumption, comsumer electromics, industrial controller and other fields.
