BLX-A 6.3A 250V PA66 Material 5x20mm Ceramic Glass PCB Mounting Fuse Holder With Cover
BLX-A 6.3A 250V PA66 Material 5x20mm Ceramic Glass PCB Mounting Fuse Holder with Cover
Product Name:BLX-A Fuse Holder
Main Body:PA66
Contacts:Brass Plated Nickel
Rated voltage:250V
Rated current:6.3A
Applicable fuse; 5x20mm
Flammability rating:UL94V0
Application: PC Board
Mounting: Insert, Solder
Temperature: -10 to +120C
Compliance:ROHS
| Contact Resistance | ≤0. 02Ω |
| Insulated Resistance | ≥500mΩ |
| Withstand Voltage | AC 1000V/MIN |
Features of BLX-A 6.3A 250V PA66 Material 5x20mm Ceramic Glass PCB Mounting Fuse Holder with Cover
The durable nylon shell material is not easy to corrode
The metal clip has strong electrical conductivity and has an overload fuse protection function
PCB installation is simple and convenient to strictly follow the safety standards

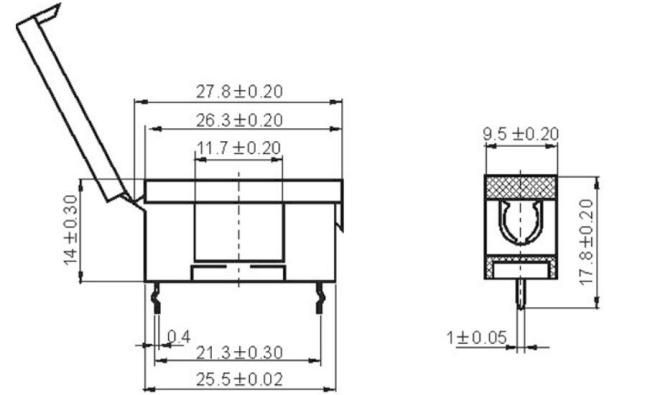

Drawing of BLX-A 6.3A 250V PA66 Material 5x20mm Ceramic Glass PCB Mounting Fuse Holder with Cover
