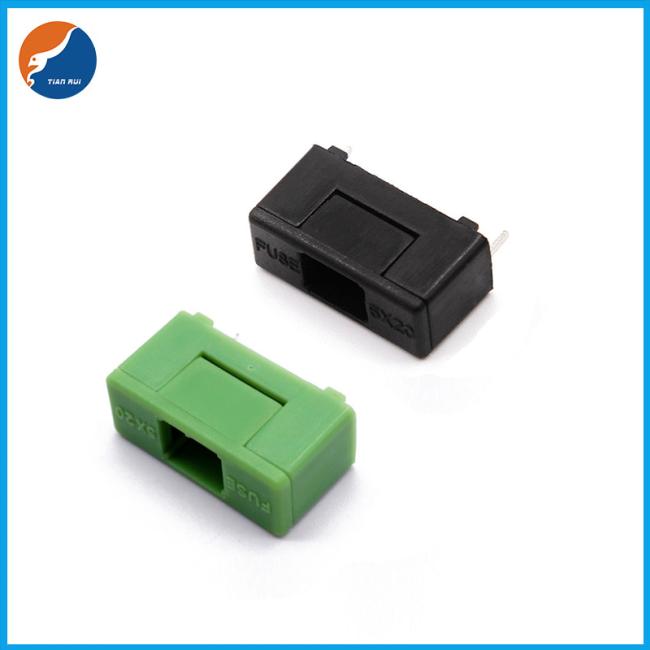

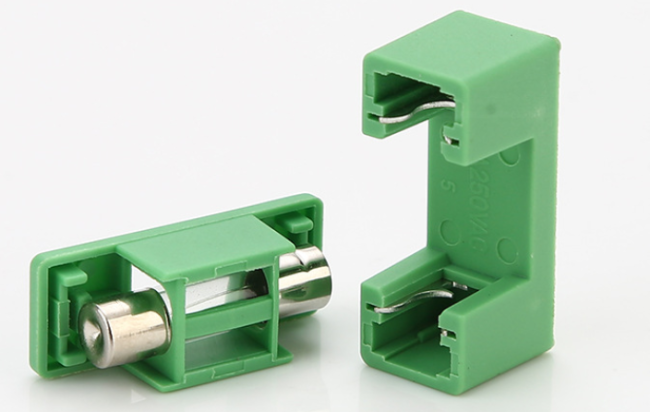

PTF-78 PTF78 Electrical PA Housing 5x20mm PCB Mount Ceramic Glass Current Fuse Holder
PTF-78 PTF78 Electrical PA Housing 5x20mm PCB Mount Ceramic Glass Current Fuse Holder
Product Name: PTF-78 PCB Fuse Holder
Rated Current: 6.3A
Rated Voltage: 250VAC
Housing: PA66
Plating: Nickel Plated Copper
Applicable fuse: 5x20mm Ceramic Glass Fuse
Mounting: PCB

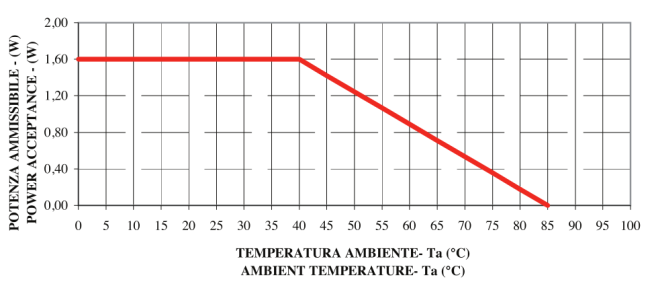

| Rated Power Acceptance | 1.6W |
| Temperature | -30 °C to 85 °C |
| Contact Resistance | < 5mΩ |
| Degree of Protection | IP00 |
Features
High-quality copper feet, large contact area, good conductivity and long service life
Two foot pitches are optional, more user-friendly
Plastic shell has good heat resistance and wear resistance
Excellent material, smooth surface, no scratches, no blemishes
Install and disassemble without tools, convenient and convenient, making installation easier
