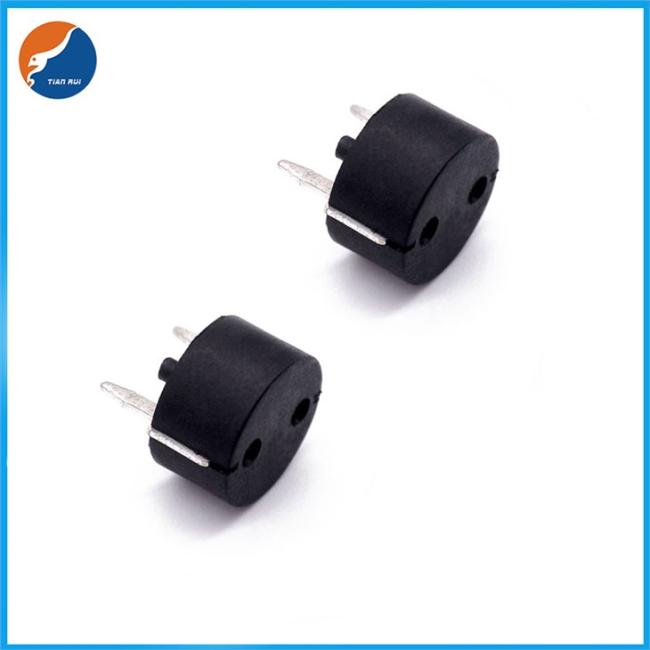

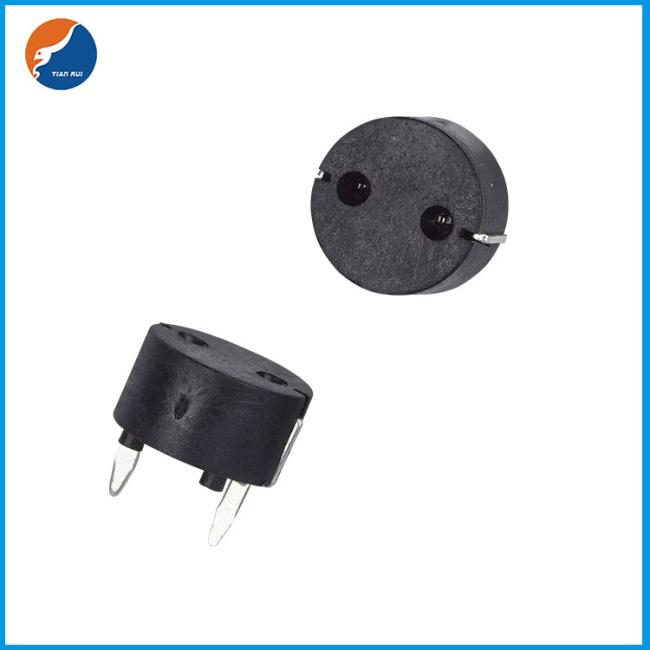

Lead-Free 7.18MM PIN Spacing 559 Series PCB Mount Holder For Round Micro Suminiature Fuse
Lead-free 7.18MM PIN Spacing 559 Series PCB Mount Holder for Round Micro Suminiature Fuse
Product name: 559 Series Fuse Holder
Compatible Fuses: Micro Subminiature Fuse
Materials: Holder: Black Thermoplastic, UL 94 V-0
Metal Parts: Copper alloy; solderable tinned
Electrical Data (23ºC): Rated Voltage: 250V
Max. Current/Power: 6.3 A /1.6 W

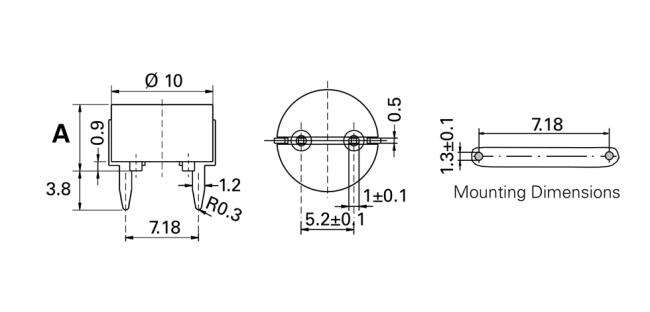

Mounting: PC Board, 7.18 mm pin spacing
Solderability: max. 260 ºC, 10 s (Wave)
Minimum Cross Section: Conducting path - 0.1 mm2
Unit Weight: 0.63g
Ambient Temperature:40 °C to +85 °C
Application
Suitable for power supply and circuit overload protection.
Widely used in battery charging, consumer electronics, power supply, industrial controller and other fields.

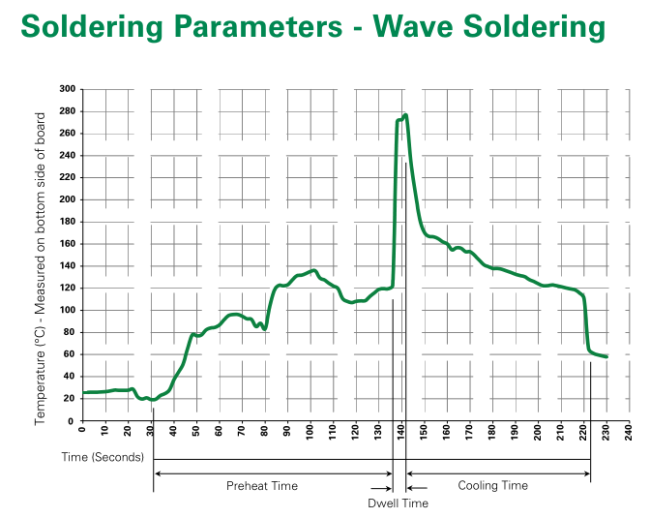

Recommended Process Parameters:
| Wave Parameter | Lead-Free Recommendation |
| Preheat: (Depends on Flux Activation Temperature) |
(Typical Industry Recommendation) |
| Temperature Minimum: | 100° C |
| Temperature Maximum: | 150° C |
| Preheat Time: | 60-180 seconds |
| Solder Pot Temperature: | 280° C Maximum |
| Solder Dwell Time: | 2-5 seconds |
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Heating Time: 5 seconds max.
