2 3 Poles 450V 17.5A T110 0.5-2.5mm2 20-16AWG Super Slim Push Wire Connector
2 3 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
1. Product name : Super Slim Push Wire Connector
2. Part number: P02-M2, P02-M3
3. Type : Push-in Wire Connectors
4. Housing : Polycarbonate
5. Flammability : 94V-2
6. Wire Range : 20-16 AWG 0.5-2.5 mm2
7. Pole: 2 Poles, 3 Poles
8. Clamping Unit: Copper and Stainless Steel Spring
9. Application: Lamps, Appliances, Wiring Installation
Features of 2 3 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
* Push wire connector

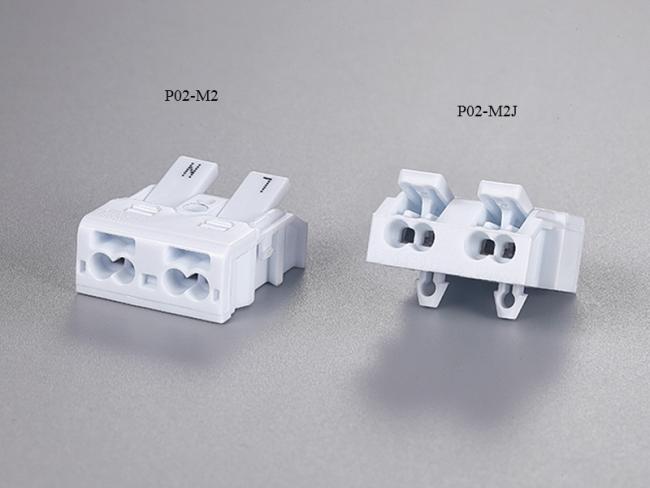

P02-M2 2 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
|
Electrical Data
|
|||
|
|
|
IEC/EN
|
UL
|
|
Rated Voltage (V)
|
450
|
300
|
|
|
Rated Current (A)
|
17.5
|
9
|
|
|
Ambient Temperature
|
Polyamide 66
|
T110
|
105℃
|
|
Connection Data
|
|||
|
Cross Section
|
IEC/EN
|
UL
|
|
|
Installation side
|
Solid conductor
|
0.5-2.5mm²
|
AWG 16-20
|
|
Stranded conductor
|
0.5-1.5mm²
|
||
|
Flexible conductor
|
-
|
||
|
Lighting side
|
Solid conductor
|
0.5-1.5mm²
|
AWG 16-20
|
|
Stranded conductor
|
|||
|
Flexible conductor
|
-
|
||
|
Strip length (mm)
|
8-10
|
|
|
|
Materials
|
|||
|
Insulating materials
|
Designation
|
Polyamide 66
|
|
|
|
Flammability class
|
UL 94V-2
|
|
|
Clamping unit
|
Copper+stainless steel
|
||

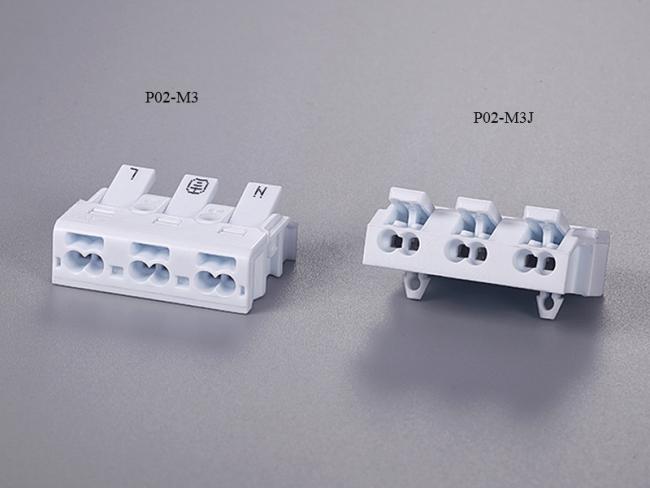

P02-M3 3 Poles 450V 17.5A T110 0.5-2.5 mm2 20-16 AWG PA Lighting Parts Super Slim Push Wire Connector
|
Electrical Data
|
|||
|
|
|
IEC/EN
|
UL
|
|
Rated Voltage (V)
|
450
|
300
|
|
|
Rated Current (A)
|
17.5
|
9
|
|
|
Ambient Temperature
|
Polyamide 66
|
T110
|
105℃
|
|
Connection Data
|
|||
|
Cross Section
|
IEC/EN
|
UL
|
|
|
Installation side
|
Solid conductor
|
0.5-2.5mm²
|
AWG 16-20
|
|
Stranded conductor
|
0.5-1.5mm²
|
||
|
Flexible conductor
|
-
|
||
|
Lighting side
|
Solid conductor
|
0.5-1.5mm²
|
AWG 16-20
|
|
Stranded conductor
|
|||
|
Flexible conductor
|
-
|
||
|
Strip length (mm)
|
8-10
|
|
|
|
Materials
|
|||
|
Insulating materials
|
Designation
|
Polyamide 66
|
|
|
|
Flammability class
|
UL 94V-2
|
|
|
Clamping unit
|
Copper+stainless steel
|
||
