2 3 4 5 Ports 450V 24A 0.5-2.5mm2 PA Housing Screwless Push In Wire Connector For LED Light
2 3 4 5 Ports 450V 24A 0.5-2.5mm2 PA Housing Screwless Push In Wire Connector For LED Light
1. Product name : Screw Less Push In Wire Connector
2. Series: P02 Series
3. Housing : Polyamide 66
4. Flammability Class : 94-V2
5. Wiring Capacity : 0.5-2.5mm2
6. Product Process : Injection Molding
7. Pole: 2 3 4 5 Ports
8. Color: White
9. Feature: Snap-in Pins for Easy Fixing
Features of Screwless Push In Wire Connector
* Push wire connector
* For various types of conductors
* Test ports for easy functional test
* Safe, fast and easy wiring
* Wire release function
* Various types of earth connection
* Various markings available

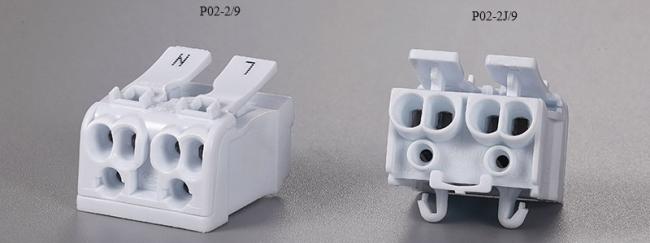

P02-2/9 P02-2J/9 2 Ports Screwless Push In Wire Connector
|
Electrical Data
|
||||
|
|
|
|
IEC/EN
|
UL
|
|
Rated Voltage (V)
|
450
|
300
|
||
|
Rated Current (A)
|
24
|
16
|
||
|
Ambient Temperature
|
Polyamide 66
|
T110
|
105℃
|
|
|
Connection Data
|
||||
|
Cross Section
|
IEC/EN
|
UL
|
||
|
Installation side
|
A holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-20
|
|
Stranded conductor
|
||||
|
B holes
|
Solid conductor
|
0.5-1.5mm²
|
AWG 16-20
|
|
|
Stranded conductor
|
||||
|
Lighting side
|
a/b holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-18
|
|
Stranded conductor
|
||||
|
Flexible conductor
|
-
|
|||
|
Strip length (mm)
|
8-10
|
|||
|
Materials
|
||||
|
Insulating materials
|
Designation
|
Polyamide 66
|
||
|
Flammability class
|
UL 94V-2
|
|||

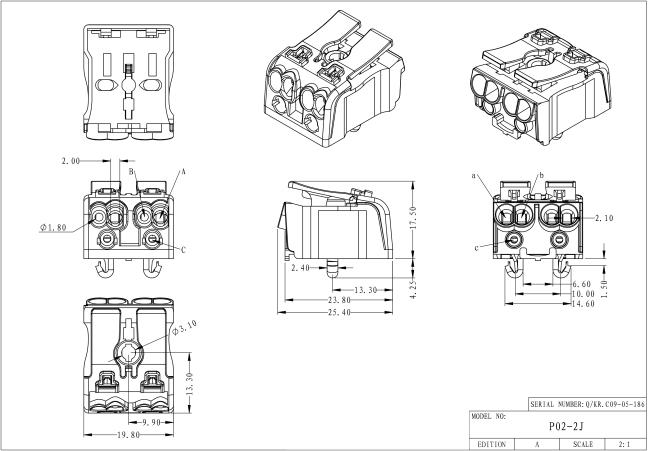

P02-2/(9) P02-2J/(9) 2 Ports Screwless Push In Wire Connector
P02-3/9 P02-3J/9 3 Ports Screwless Push In Wire Connector
|
Electrical Data
|
||||
|
|
|
|
IEC/EN
|
UL
|
|
Rated Voltage (V)
|
450
|
300
|
||
|
Rated Current (A)
|
24
|
16
|
||
|
Ambient Temperature
|
Polyamide 66
|
T110
|
105℃
|
|
|
Connection Data
|
||||
|
Cross Section
|
IEC/EN
|
UL
|
||
|
Installation side
|
A holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-20
|
|
Stranded conductor
|
||||
|
B holes
|
Solid conductor
|
0.5-1.5mm²
|
AWG 16-20
|
|
|
Stranded conductor
|
||||
|
Lighting side
|
a/b holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-18
|
|
Stranded conductor
|
||||
|
Flexible conductor
|
-
|
|||
|
Strip length (mm)
|
8-10
|
|||
|
Materials
|
||||
|
Insulating materials
|
Designation
|
Polyamide 66
|
||
|
Flammability class
|
UL 94V-2
|
|||

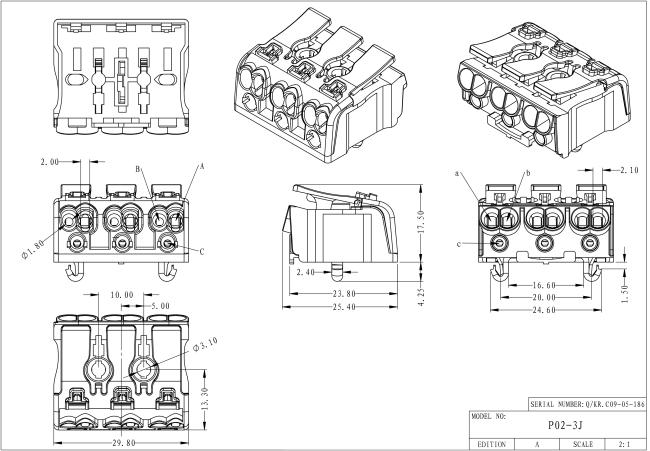

P02-3/(9) P02-3J/(9) 3 Ports Screwless Push In Wire Connector
|
Electrical Data
|
||||
|
|
|
|
IEC/EN
|
UL
|
|
Rated Voltage (V)
|
450
|
300
|
||
|
Rated Current (A)
|
24
|
16
|
||
|
Ambient Temperature
|
Polyamide 66
|
T110
|
105℃
|
|
|
Connection Data
|
||||
|
Cross Section
|
IEC/EN
|
UL
|
||
|
Installation side
|
A holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-20
|
|
Stranded conductor
|
||||
|
B holes
|
Solid conductor
|
0.5-1.5mm²
|
AWG 16-20
|
|
|
Stranded conductor
|
||||
|
Lighting side
|
a/b holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-18
|
|
Stranded conductor
|
||||
|
Flexible conductor
|
-
|
|||
|
Strip length (mm)
|
8-10
|
|||
|
Materials
|
||||
|
Insulating materials
|
Designation
|
Polyamide 66
|
||
|
Flammability class
|
UL 94V-2
|
|||
P02-4/9 P02-4J/9 3 Ports Screwless Push In Wire Connector
|
Electrical Data
|
||||
|
|
|
|
IEC/EN
|
UL
|
|
Rated Voltage (V)
|
450
|
300
|
||
|
Rated Current (A)
|
24
|
16
|
||
|
Ambient Temperature
|
Polyamide 66
|
T110
|
105℃
|
|
|
Connection Data
|
||||
|
Cross Section
|
IEC/EN
|
UL
|
||
|
Installation side
|
A holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-20
|
|
Stranded conductor
|
||||
|
B holes
|
Solid conductor
|
0.5-1.5mm²
|
AWG 16-20
|
|
|
Stranded conductor
|
||||
|
Lighting side
|
a/b holes
|
Solid conductor
|
0.5-2.5mm²
|
AWG 14-18
|
|
Stranded conductor
|
||||
|
Flexible conductor
|
-
|
|||
|
Strip length (mm)
|
8-10
|
|||
|
Materials
|
||||
|
Insulating materials
|
Designation
|
Polyamide 66
|
||
|
Flammability class
|
UL 94V-2
|
|||
|
Clamping unit
|
Copper+Stainless Steel Spring
|
|||
P02-5/9 P02-5J/9 3 Ports Screwless Push In Wire Connector
