24V 200Ah Lithium Iron Phosphate Battery with Built-in Smart BMS for AGV/AMR Robotics
Long Life 24V 200Ah Deep Cycle LiFePO4 Battery Pack with Smart BMS for Industrial Robots
24V 200AH Specification:
| Product Type | Lithium Iron Phosphate Battery |
| Brand Name | Benergy |
| Voltage | 25.6V |
| Nominal Capacity | 200AH |
| Minium Capacity | 200AH |
| Pack way | 8S1P |
| Size |
532*207*215mm (L,W,H) 20.94*8.15*8.46" |
| Weight |
38.5kg±150g 85.1 lbs |
| Charge Mode | CC/CV (Continuous current/Continuous Voltage) |
| Max Charge Current | 50A (Adjustable) |
| Charge Cut Off Voltage | 29.2V±0.05 |
| Standard Discharge Current | 50A(Adjustable) |
| Max Continuous discharge current | 150A(Adjustable) |
| Peak Discharge Current @3 sec | 200A(Adjustable) |
| Discharge Cut Off Voltage | 20V |
| Cycle Life | >2500 Times (0.5C charge/discharge, 100% DOD) |
| Discharge Temperature | -10～55℃ |
| Charge Temperature | 0～45℃ |
| Application | Electric boat, yacht, marine, EV etc. |
| Warranty | 2 Years |
| Indicator | Can match |
| IP range | IP65 |
| OEM/ODM | Yes(Accepted) |
Battery pack picture:

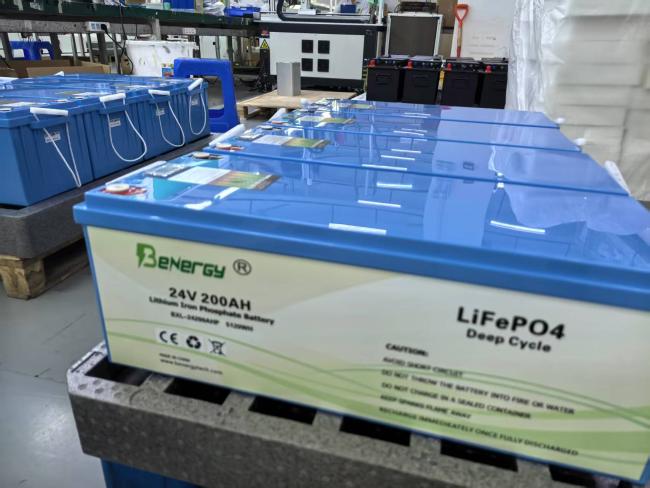

24V 200AH Lithium Battery Pack with indicator (Blue case)
24V 200AH Lithium Battery Pack without indicator (Black case)
With Bluetooth:

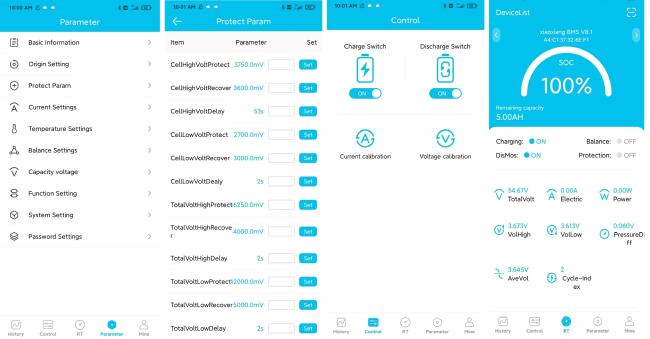

Bluetooth details to show battery conditions
Size detail:
Why choose Benergy 24V Lifepo4 battery pack?
Key Features of Benergy 24V LiFePO4 Battery Packs:
* Lead-Acid Replacement: Directly replace heavy lead-acid batteries with a lighter weight, smaller footprint solution that offers extended cycle life.
* Bluetooth Monitoring: Integrated Bluetooth function enables real-time battery monitoring via a smartphone APP for easy diagnostics.

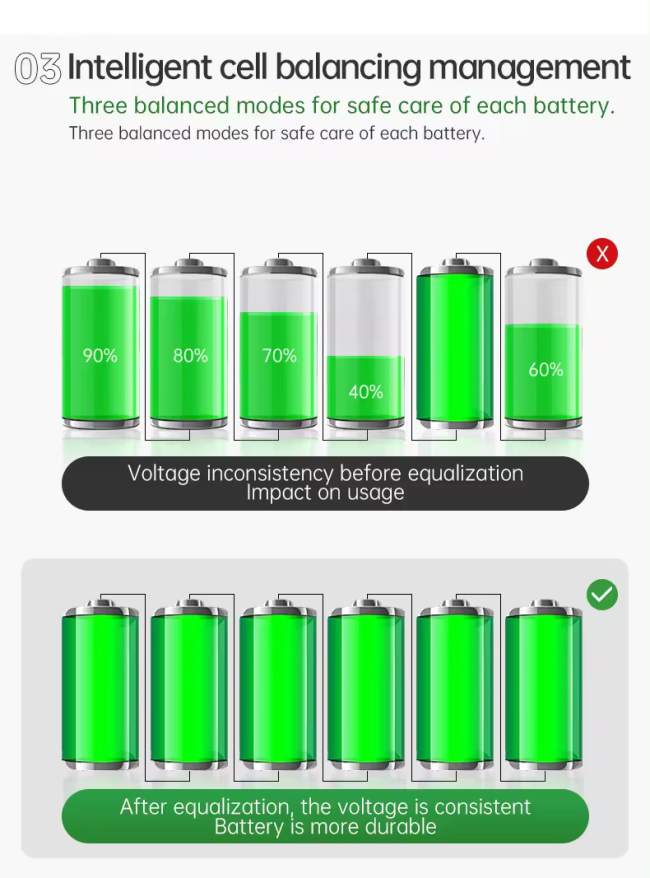

* Smart BMS Protection: Built-in advanced BMS safeguards the pack from over-charge, over-discharge, over-temperature, and short circuits. And with balancing function to balance the cells, longer the cycle life.
* Versatile Application: Ideal for solar energy storage, electric vehicles, UPS systems, and various industrial applications.
Certifications
Our batteries are certified. With CE, ROHS, MSDS,UN38.3, IEC certifications.
Packages
UN Certified Packaging: Benergy LiFePO4 packs are shipped in UN cartons for safe ocean freight, air freight, and ground transport, fully compliant with international battery shipping safety standards.
Contact us:
Experience the difference with our cutting-edge Lithium Iron Phosphate cells. Contact us for a partnership that sparks innovation.
