WNK Low Cost 0.5-4.5V Brass Pressure Sensor for Water/Oil/Air Gas

Price Negotiable
Price: $6.50/Pieces >=10 Pieces
MOQ: 10 Pieces
Delivery Time: 5-8 work days
Brand: WNK
Product Description
Product Description
WNK83MA Pressure Sensor
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

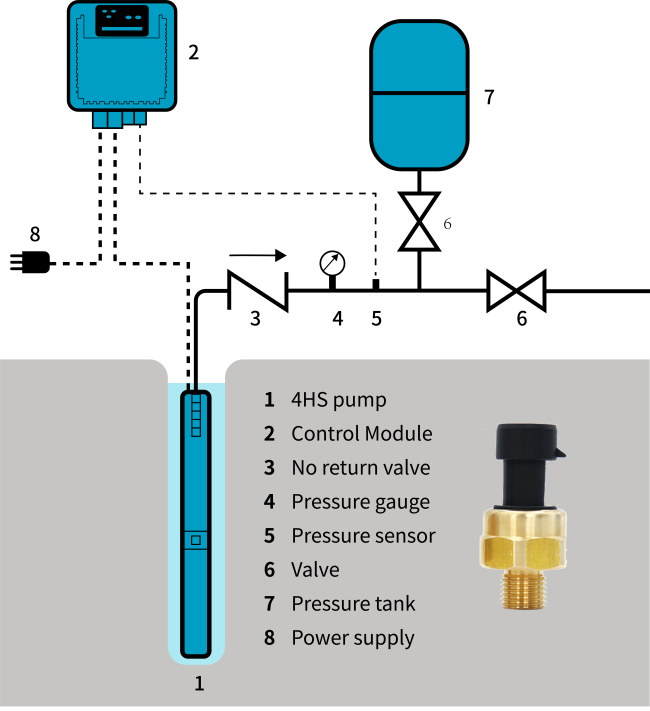

Application:

WNK83MA solution for below applications: •Pressure measurement of gas or liquid in various areas; •Liquid level measurement; •Integrated in a variety of user-defined solutions; •Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

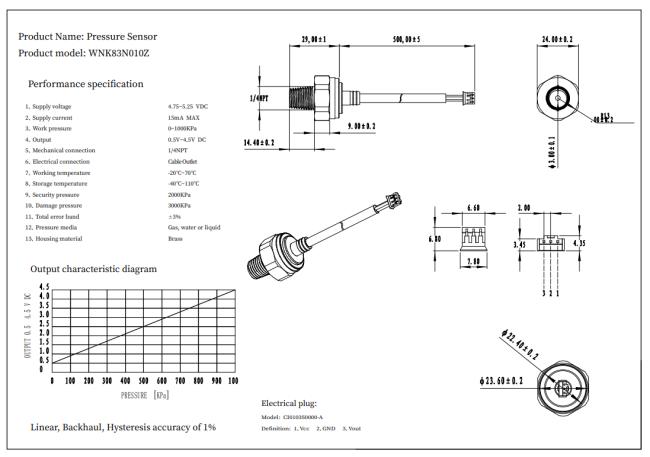

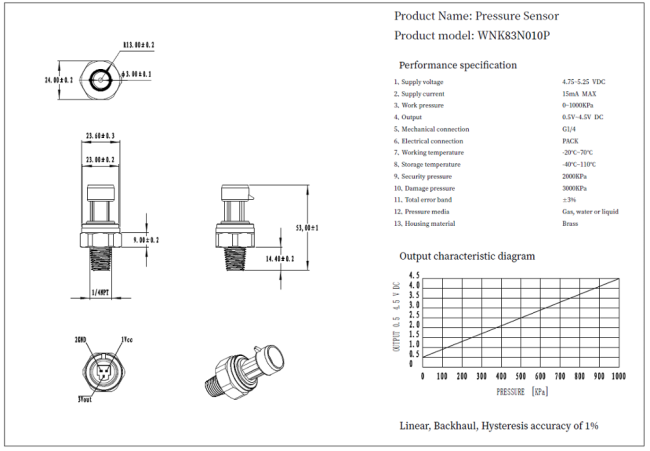

Specification
Applicable media
Liquid, gas, steam
Pressure range
0-10bar, 0-20bar
Cell
Ceramic capacitive pressure sensor
Pressure measurement
Gauge pressure, sealing pressure
Output
0.5-4.5VDC
Power supply
4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability)
1%F.S.
Work temperature
-20~70ºC
Ambient temp
-40~110ºC
Temperature drift(zero)
±0.15% F.S. (-20~70ºC)
Temperature drift(full range)
±0.15% F.S. (-20~70ºC)
Electrical connection
Cable Outlet/Parkard Connector
Mechanical connection
G1/4, NPT 1/4 Male
Housing material
Brass
