WNK Water Treatment Gas Pressure Sensors 4-20mA Pressure Transducer

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: Negotiable
Brand: WNK
Product Description
Product Description
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.
With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.

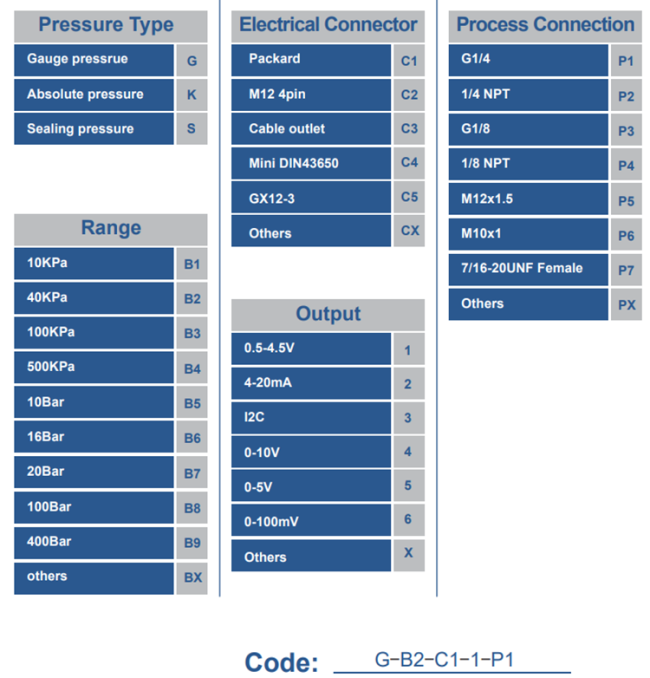

Pressure type
Gauge pressure,sealing pressure
Output
0.5...4.5V, 4...20mA, I2C
Accuracy
1%, 0.5%
Commensation Temperature

-20...70℃
Ingress protection

IP65/IP67
Housing material
Stainless steel 304
Electrical connector
Packard, M12*4P, Cable outlet, Minni DIN43650, GX12-3
Process connector
G1/4, 1/4-18NPT, 1/8-27NPT, M14×1.5, M12×1.5,1/4-19PT, 7/16-20UNF(female)

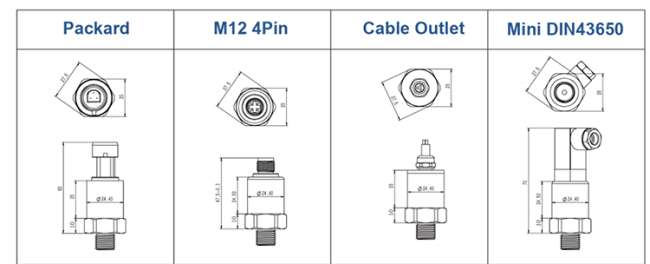

Electrical Connections

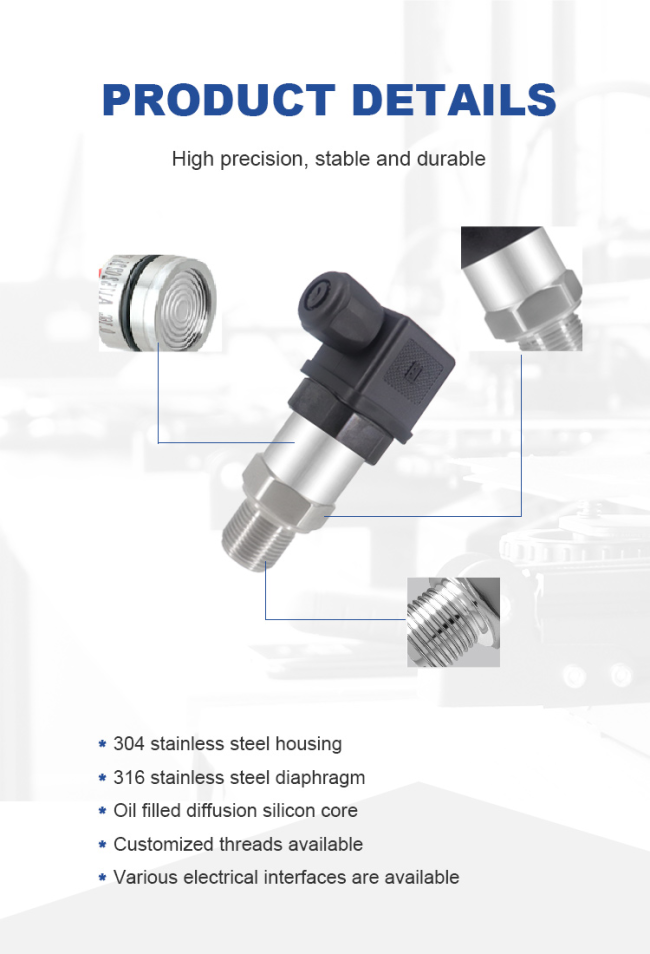

Product Show
