WNK 0.5-4.5V Small Mini Brass Pressure Sensor for Harsh Working Condition

Price Negotiable
Price: $6.50/Sets
MOQ: 1pcs
Delivery Time: 5-8 work days
Brand: WNK
Product Description





0.5-4.5V Pressure Sensor for Harsh Working Condition

Applicable media
Liquid, gas, steam
Pressure range
0-10bar, 0-20bar
Cell
Ceramic capacitive pressure sensor
Pressure measurement
Gauge pressure, sealing pressure, absolute pressure
Output
0.5-4.5VDC
Power supply
4.75-5.25VDC
Accuracy(linearity, hysteresis and repeatability)
1%F.S.
Work temperature
-20~70ºC
Ambient temp
-40~110ºC
Temperature drift(zero)
±0.15% F.S. (-20~70ºC)
Temperature drift(full range)
±0.15% F.S. (-20~70ºC)
Electrical connection
1/4NPT, G1/4
Mechanical connection
Packard , Cable outlet
Housing material
Brass

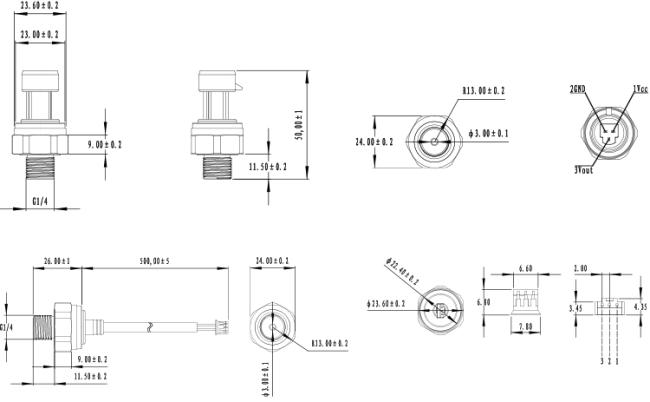

Mechanical Dimension:
Parkard connector ,G1/4 thread
Direct cable outlet ,1/4NPT theard
