Micro process full digital controlled synergy MIG welding machine Co2 gas shield
MICRO PROCESS FULL DIGITAL CONTROLLED
SYNERGY MIG WELDING MACHINE
Introduction :
This highly developed high-tech inverter synergy MIG welder is programmed by MCU chip , that guarantees smooth and excellent welding performance , and easy operation . the welder delivers versitle welding process for MIG+MMA+TIG lift .
It is light weighted that allows you to carry the unit for those off site jobs requiring portability. The beauty of this kind of MIG welder is that it does not sacrifice power output for its reduced weight. The welder’s robustness makes it usable for your weekend DIY all the way up to your Industrial welding purpose alike. The particular welder is appropriate for use with a wide range of materials such as metal, stainless steel, copper, carbon steel, iron, titanium, etc. When you want to get your task finished accurately and efficiently , Poney inverter MIG welder is the idea choice .
Features :
- Full digital , synergy operation .
- inverter IGBT transistors .
- able to load 15kg wire . compact design .
- avalible for single phase 230V or 3 phase 380V
- wire diameter is selecatble
- thermal protection , VRD, 2T/4T, inductance ,
- Energy saving,high efficiency ,fan cooled
- Overload protective circuit ,anti-static protection
- Stepless power control
PARAMETERS
Model | MIG-250SNY |
| Input voltage (V) | 230V or 380V |
| Frequency | 50/60Hz |
| Rated input capacity (kVA) | 6.5 |
| NO-load votalge (V) | 56 |
| Current range (A) | 30-250 |
| Usable wire diameter (mm) | 0.6-1.2 |
| Usable rod diameter (mm) | 1.6-4.0 |
| Duty cycle (%) | 60 |
| Protection degree | IP21S |
| Insulation degree | F |
| weight (kg ) | 18 |
| dimension (cm) | 56×27×43.5 |

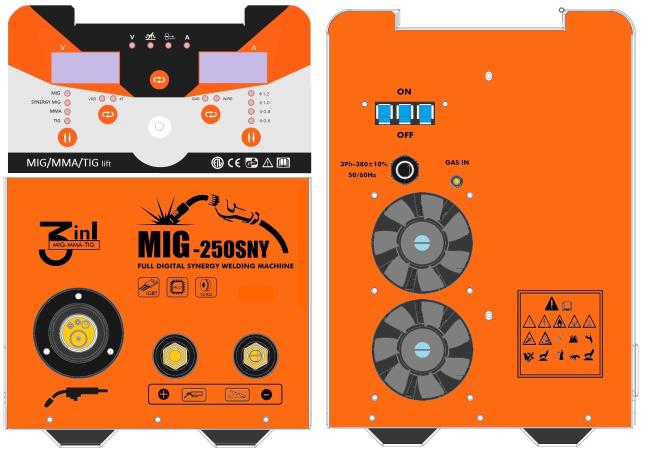

Control panel :

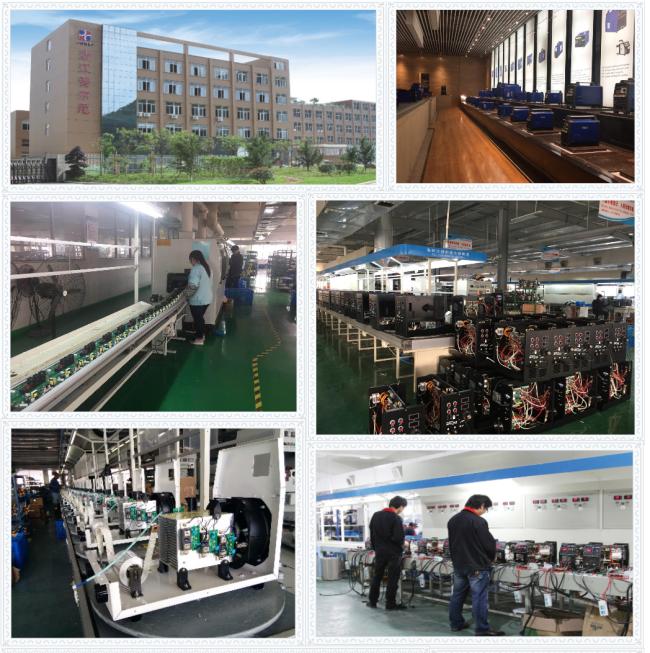

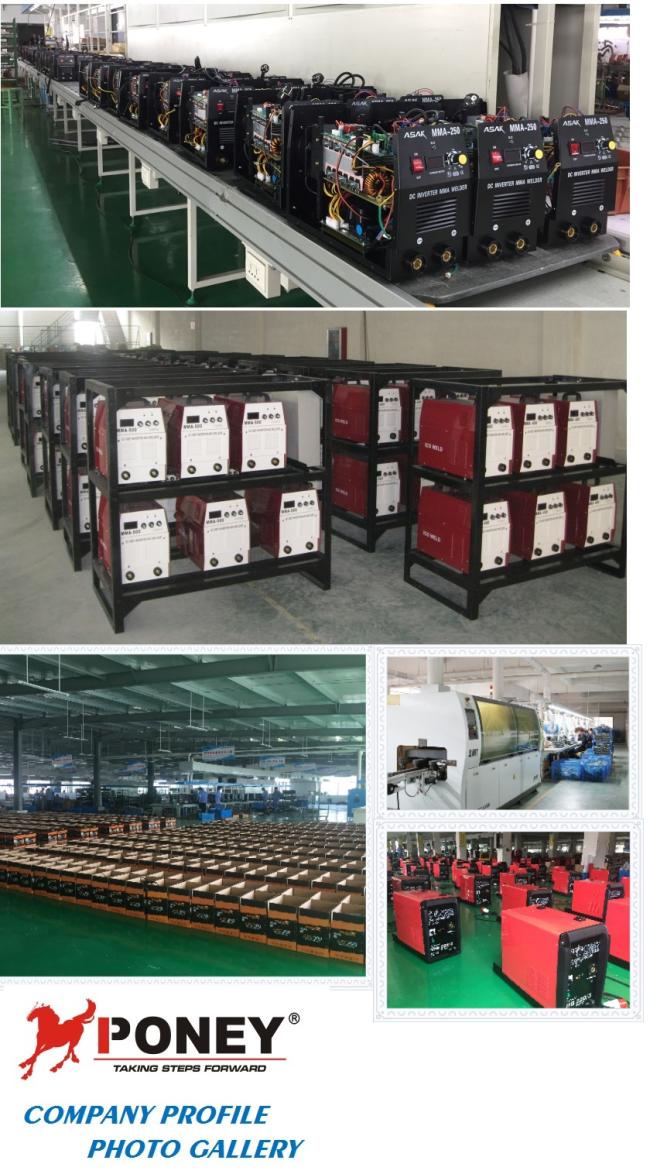

The Zhejiang Poney Electric Co.,Ltd is an export oriented enterprise which specializes in R&D , manufacturing , and sale. We are providing a diverse range of products which include welding machine , plasma cutting machine and battery charger . We believe quality is the key in the international arena ,thus sound management system and strict quality control system have been established to ensure stable performances of the goods . due to enormous investment on digital and automatic equipment , we have tripled our production capability .We pursue excellence by valuing the idea “ be careful in each detail , providing the world with the finest products “.
