D Type Q235 Steel Palisade Fence Panels 2700mm Height
Decorative Steel PVC Coated Palisade Garden Europe Fence
Features pf Palisade Fence
1)palisade fence is widely accepted as the industry leader to protect and deter general attack from all types and conditions of intrusion.
2)The pales are made of hot formed and cold rolled steel belts. These belts offer both strength and rigidity combined with a long life span.
3)It is easy to be installed, moved. And the price is competitive.
Specifications of Welded Wire Garden Fence
|
product name
|
Steel Palisade fence/Steel Palisade Fencing/Welded Wire Garden Fence |
| material | Q235 |
| Height | 1200mm/1500mm/1800mm/2100mm/2400mm/2700mm/3000mm/3600mm |
| Width | 2750mm per bay or as you requirement |

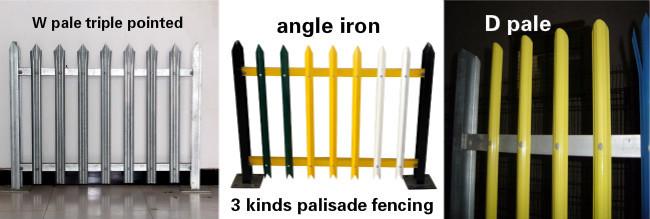

| pale type | D type, W type, or angle steel type |
| head type |
Pointed, Triple pointed, Rouned, Rouned and notched, Flat , star
|
| Pale thickness | 1.5mm/2.0mm/2.3mm/2.5mm/3.0mm |
| Angle rail | 50x50 RSA or 40x40 RSA, Rail thickness: 4mm/5mm/6mm |
| RSJ post | 100*55*3.5mm |
| Fish plate | 150*30*7mm |
| Bolts&Nuts | M8×25mm-34pcs and M12×30mm-4pcs |
| Surface treatment | Hot dipped galvanized (500g/m2, 70um) Galvanized and powder coated. |
| Lead time | 10 days for 20 feet container |

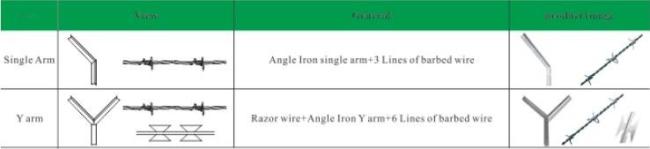

Extension arm
Application
Widely used for prevention for road, highway, railway, garden, airport, residential district, seaport, feeding and husbandry,military base.

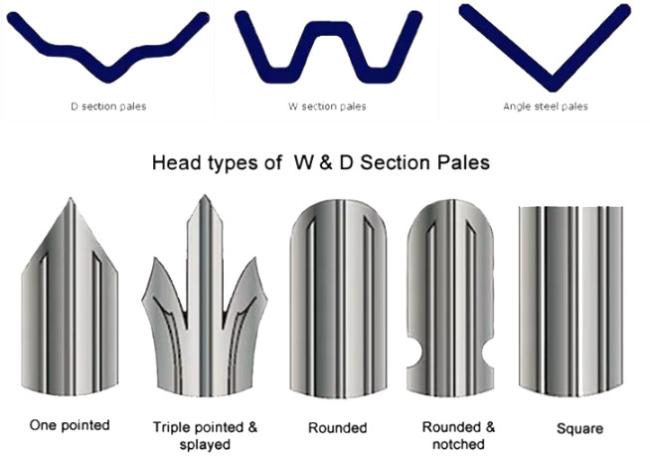

Head types of W & D Section Pales
"W"
| Width (mm) | Thickness(mm) | Surface treatment | Head | Height(mm) |
| 65,75 |
2.0 2.5 3.0 |
Galvanized and electrostatic Polyester powder coated ,hot dipped galvanized |
Single point Triple point |
1200 |
| 1500 | ||||
| 1800 | ||||
| 2000 | ||||
| 2100 | ||||
| 2400 | ||||
| 2700 | ||||
| 3000 |
"D"
| Width (mm) | Thickness(mm) | Surface treatment | Head | Height(mm) |
| 70 |
2.0 2.5 3.0 |
Galvanized and electrostatic Polyester powder coated ,hot dipped galvanized |
Single point Triple point |
1200 |
| 1500 | ||||
| 1800 | ||||
| 2000 | ||||
| 2100 | ||||
| 2400 | ||||
| 2700 | ||||
| 3000 |

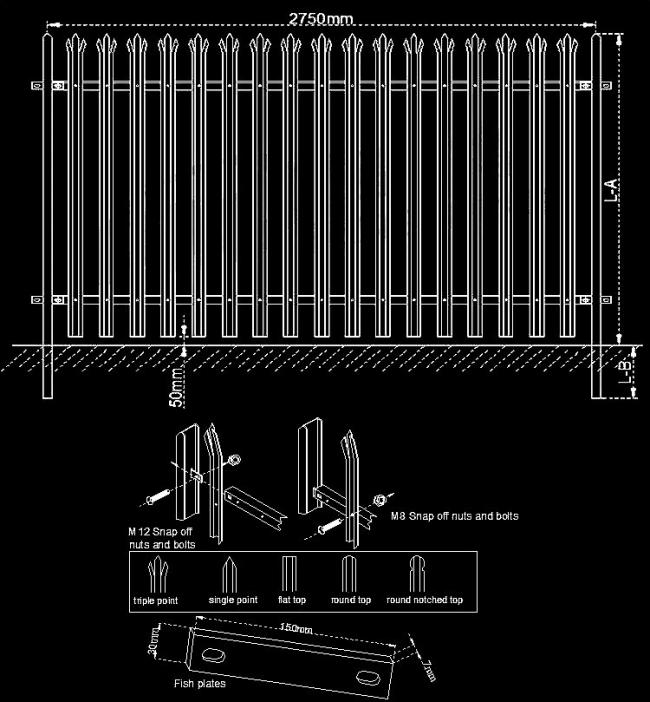

UK BS1722 Standard all 2 rails palisade fence bays of 2.75m includes:
- 1 Palisade Fencing Posts
- 17 Palisade Fencing Pales
- 1 Palisade Fencing Top Rail
- 1 Palisade Fencing Bottom Rail
- 2 Palisade Fencing Fish plates
- 4 Palisade Fencing Anti Tamper M12 Bolts
- 34 Palisade Fencing Anti Tamper M8 Bolts
