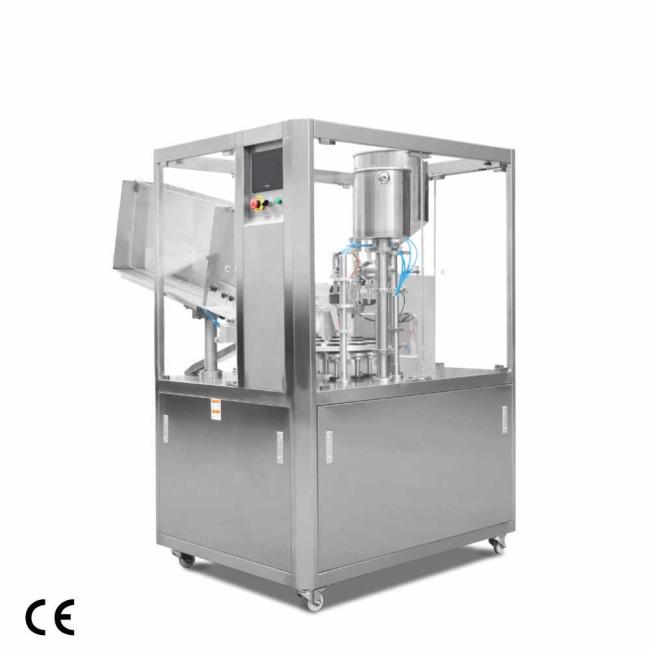

Stainless Steel Tube Filling Machine for Filling and Sealing of Plastic and Plastic Aluminum Laminated Tubes in Various Industrial Uses
It can fill and seal the plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, medicine, lubricants, adhesive and shoe polish, food industries.
- The material contact parts are made of stainless steel SUS304 and SUS316 is optional .
- The connection of the various is used the quick-change device, which is easy to disassemble and clean;
- high-quality pneumatic components
- The height of conveyor table can be adjusted easily by a hand wheel for different tubes
- Pistol plunger filling system processed by digital controlled lathe to guarantee a high filling precision of 1%. And the volume is adjustable.
- The filling speed can be adjusted freely a VFD
- Production counter could be displayed on the control cabinet

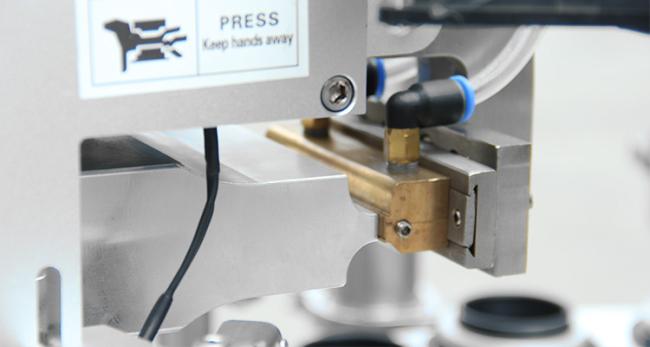

- Inner heating and out heating technology, a stable and good looking sealing is got.
| Tube Diameter | Φ12mm-50mm |
|---|---|
| Tube Length(customizable) | 50-240mm |
| Filling Volume (Adjustable) | 5-250ml/piece |
| Filling Accuracy | ≤±1% |
| Product Capacity | 80-120/min |
| Air Supply | 0.5-0.6Mpa |
| Motor Power | 2.2kw |
| Heat Sealing Power | 5kw |
| Overall Dimension(mm) | 2950*1310*2300 |
| Machine Weight (kg) | 3000 |
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Q: What is the warranty period for your machine?
A: 5 years free warranty.
Q: Are you a real factory/manufacturer?
A: Of course. Our factory is inspected by third party. We much welcome you to visit us and free to pick you up form hotel. You don't have time? We can use live video and you can visit us on line.
Q: Is engineer available to serve oversea?
A: Yes, we can send engineers to your factory but all the fee will be on buyers. In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you sastisfy. We will setting all the parameters well. And also you can arrange for quality checking by yourself or by your contacts in China.
