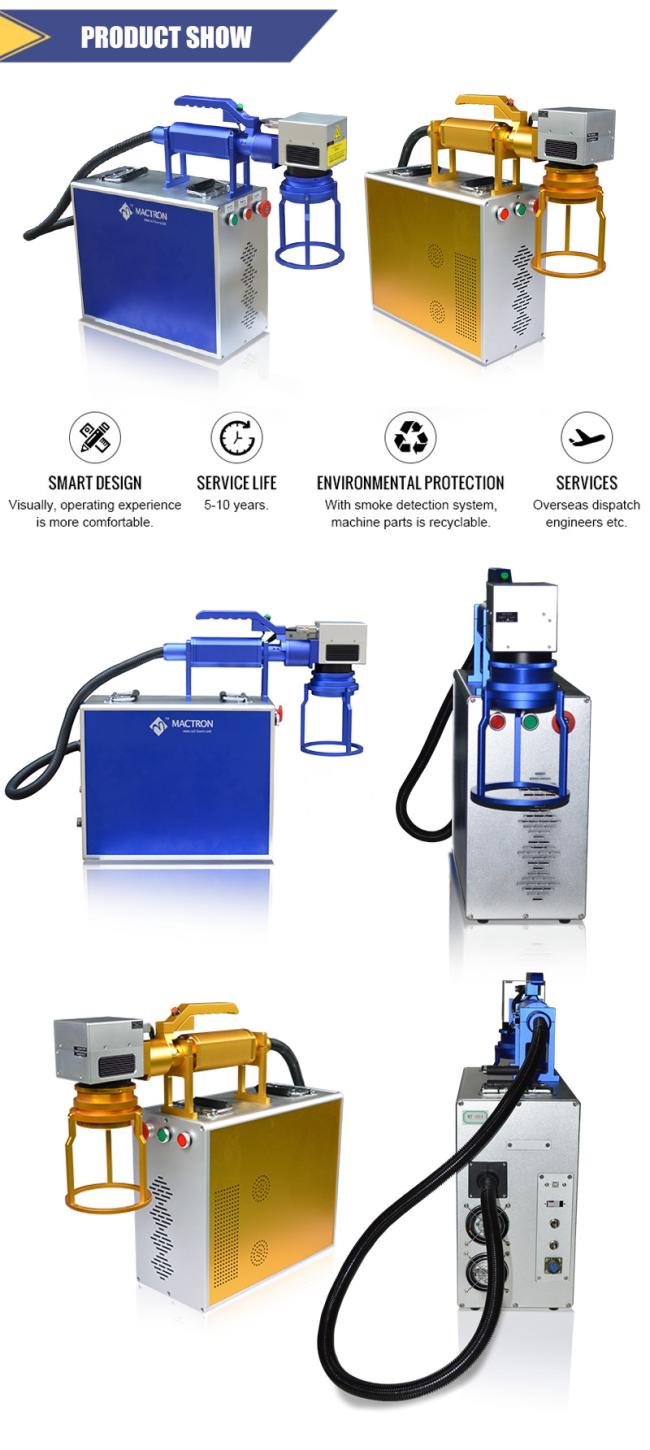

portable mini 20w metal fiber color laser marking machine with ezcad
portable mini 20w metal fiber color laser marking machine with ezcad
1-laser source
Laser source we use rex famous brand laser source, high stability, long life, no consumables.This is the key part of fiber laser marking machine.
2-Ftheta lens
Smart f theta lens with working area 110*110,200 * 200,300 x 300(mm)
The fiber laser beam through its focus to the work piece surface, so the energy is enough.This optical accessories control marking area.

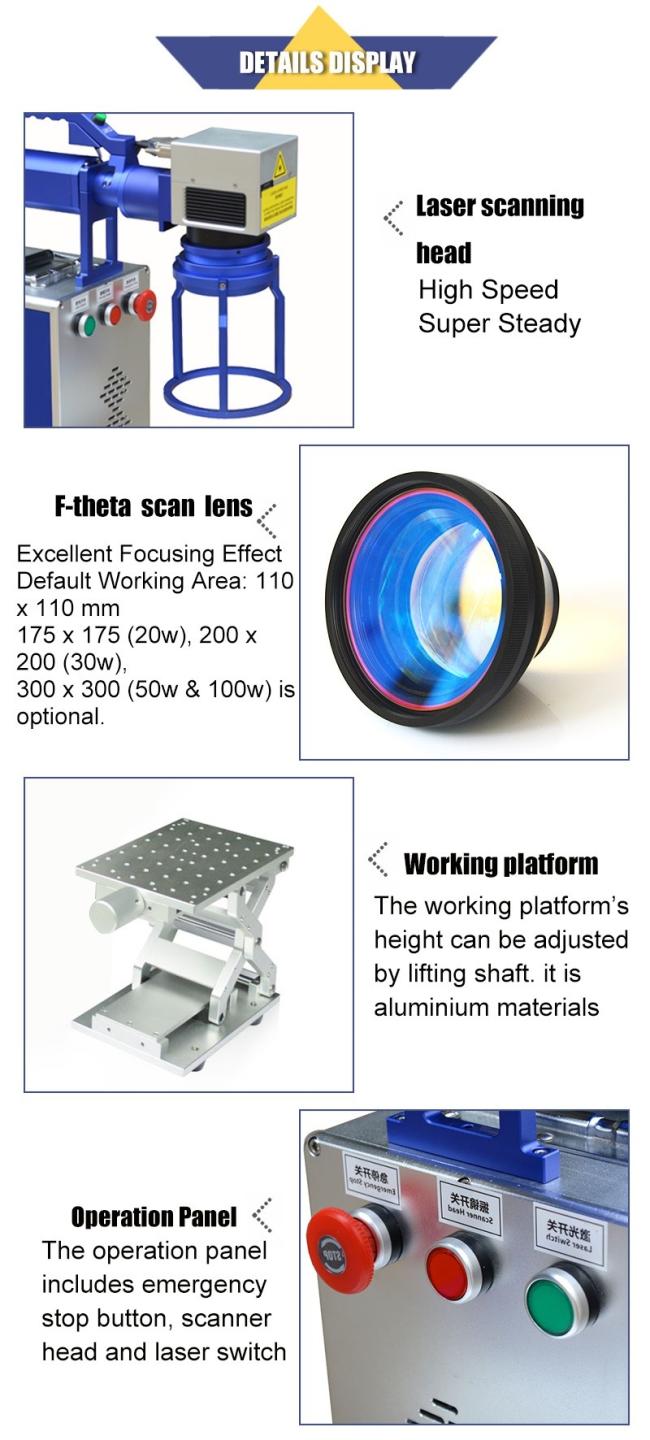

3-Galvo head
High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.
4-EZCAD control card
Famous brand directional EZCAD control system, easy to operate.
5-Power supply
Power supply for galvo head and control card
6-Lifting handle
To remove wheel to get the streng point to get focus.
Laser focus distance can be adjusted easily
|
Laser power
|
10w(20W,30W,50W optional)
|
|
Laser wavelength
|
1064nm
|
|
Laser type
|
Fiber Laser
|
|
Laser beam quality
|
M2:1.5
|
|
Repeat Frequency
|
20KHz-80KHz
|
|
Repeat Positioning Accuracy
|
0.005mm
|
|
Min linear width
|
0.01mm
|
|
Marking Depth
|
0.01-0.5mm
|
|
Standard Marking Area
|
110×110mm
|
|
Optional Marking Area
|
70×70mm/175×175mm
|
|
Rated Power Consumption
|
less 500W
|
|
Operating Voltage
|
220V/50Hz/15A
|
|
Graphic formate supported
|
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO. DXF,etc
|
|
Working temperature
|
5-35 centigrade
|
|
Cooling
|
Air Cooling
|
5-Power supply
Power supply for galvo head and control card
6-Lifting handle
To remove wheel to get the streng point to get focus.
Laser focus distance can be adjusted easily
5-Power supply
Power supply for galvo head and control card
6-Lifting handle
To remove wheel to get the streng point to get focus.
Laser focus distance can be adjusted easily
3-Galvo head
High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.
4-EZCAD control card
Famous brand directional EZCAD control system, easy to operate.
3-Galvo head
High speed galvanometer scanning head adopts scanning laboratory technology, digital signal, high precision.
4-EZCAD control card
Famous brand directional EZCAD control system, easy to operate.
