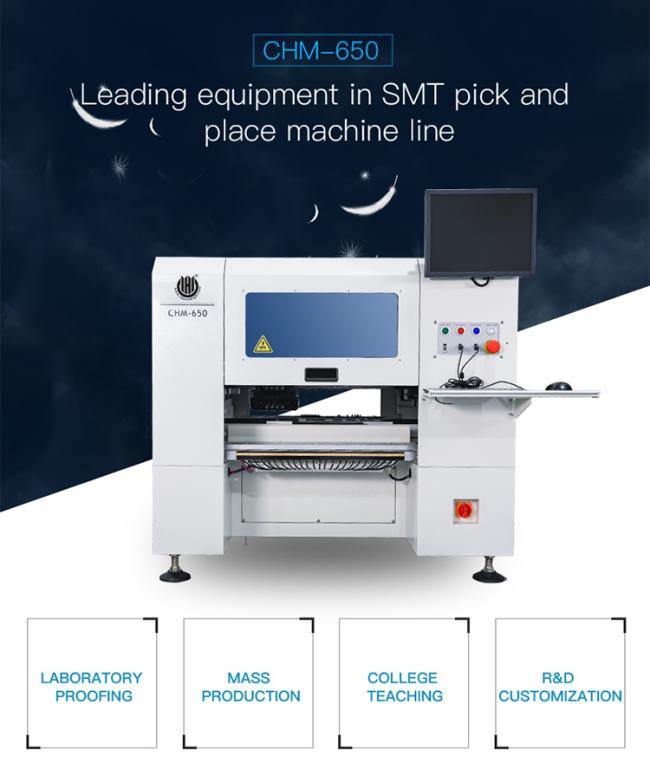

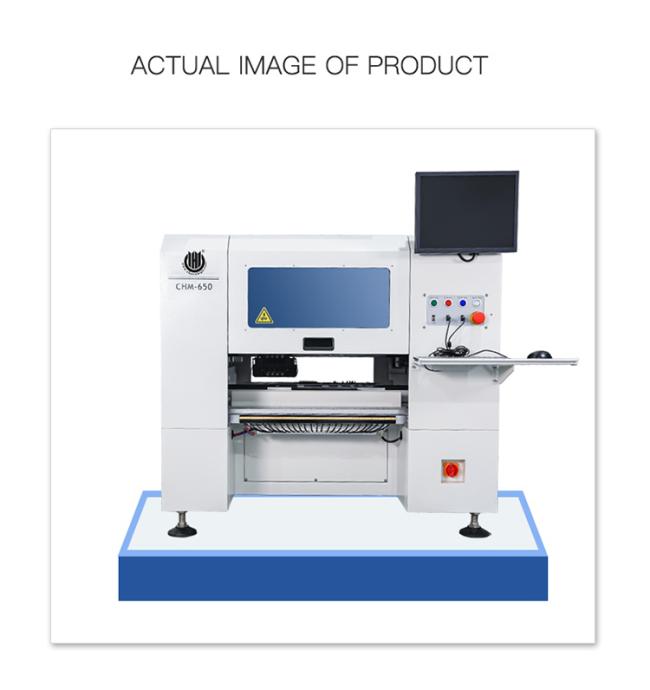

Smd Charmhigh CHM-650 Smt Pick N Place Electronic Products Pcb Making Machine
Best Smd Machine Charmhigh CHM-650 Smt Pick N Place Electronic Products Machinery Pcb Making Machine
Our company's pick and place machine software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
| CHM-650 Specifications | |
| Dimensions | 1280mm(L)×1190mm(W)×1050mm(H) |
| Weight | 310kg |
| Power Supply | AC220V (50Hz, single phase), 2.1kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Vacuum generator |

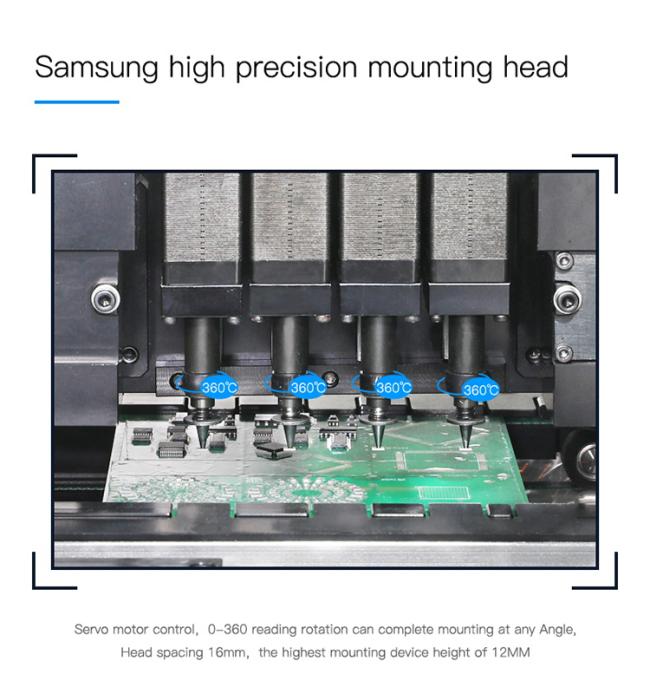

| Mounting Head Quantity | 4 |
| Mounting Speed | 10000cph(optimal) |
| Mounting Accuracy | ±50μm@μ±3σ/chip |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type |
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying |

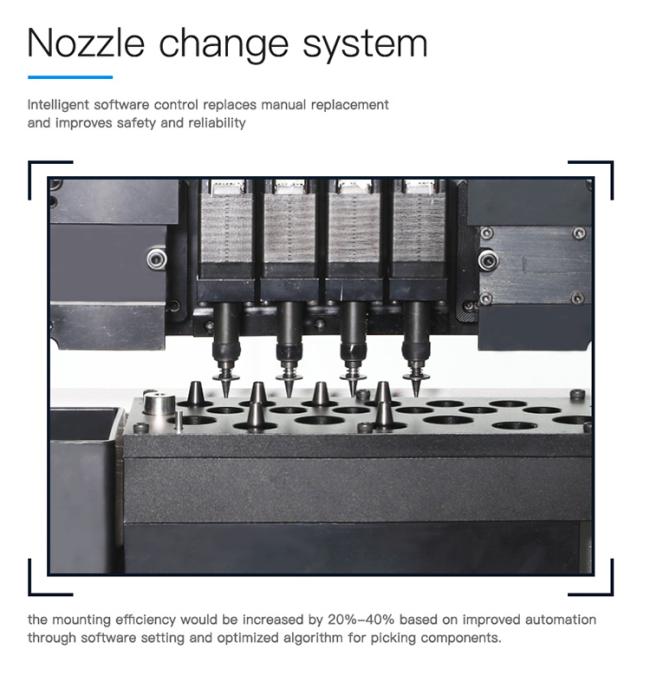

| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System |
Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |

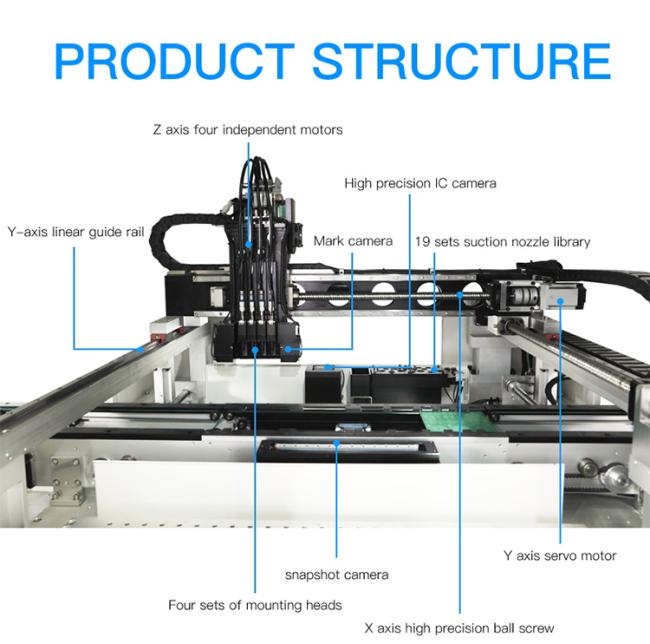

| Drive System | X&Y axis driven by servo motors;adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ball screw + linear guide |
| Feeding System |
50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |

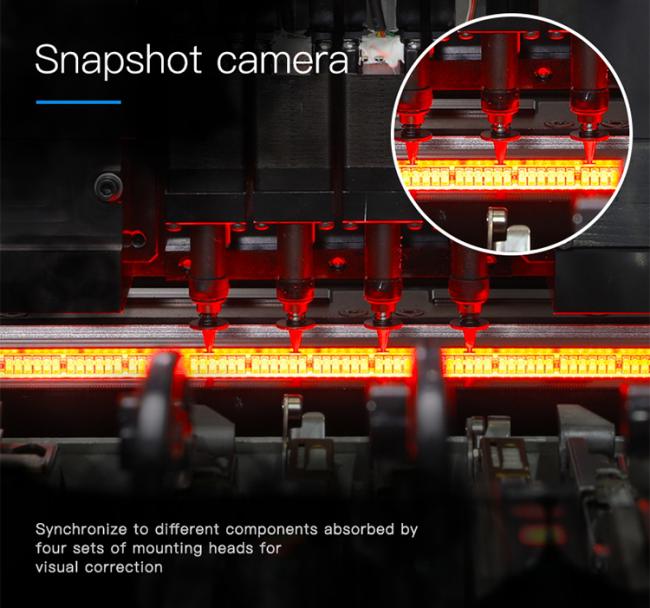

| Vision System |
Snapshot camera×4 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
FAQ:
Q:This is the first time I use this kind of machine, is it easy to operate?
A:There is an English manual or guide video that show you how to use machine.
If machine have any problem after I receive it, how can I do ?Free parts send to you in machine warranty period.
Q:MOQ ?
A:1 set machine, mixed order is also welcomed.
Q:How can I buy this machine from you?
A:
1. Consult us about this product on line or by e-mail.
2. Negotiate and confirm the final price , shipping , payment methods and other terms.
3. Send you the proforma invoice and confirm your order.
4. Make the payment according to the method put on proforma invoice.
5. We prepare for your order in terms of the proforma invoice after confirming your full payment.
6. And 100% quality check before shipping.
7. Send your order by air or by sea.
Q:Why choose us ?
A:
1. We're a real manufacturer.
2. We have more than ten years of experience in the machine industry.
3. We provide high quality and delivery on time.
4. We provide 24 hours after-sale timely
