Automatic Vision 6 Head Charmhigh Electric Bulb LED Making Machine SMT Line
Automatic Vision 6 Head Charmhigh Electric Bulb LED Making Machine SMT Line
Our company's pick and place machine software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.
Charmhigh already owns 24 property rights, including 22 national patents and two software copyrights, and has passed ISO quality management system certification, EU CE certification, ROHS certification, and US FCC, SGS and other international certifications.
| CHM-751 Specifications | |
| Dimensions | 1280mm(L)×1190mm(W)×1470mm(H) |
| Weight | 540kg |
| Power Supply | AC220V (50Hz, single phase), 2.8kW |
| Air Supply | 0.5MPa ~0.7MPa |
| Vacuum Generation | Japan PISCO Vacuum generator |
| Mounting Head Quantity | 6 |
| Mounting Speed |
17000cph (optimal) IPC9850: 12000CPH |
| Mounting Accuracy | ±60μm CPK≥1.0(XY) |
| Control Accuracy | 5μm |
| Component Height | 12mm |
| Component Type |
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |

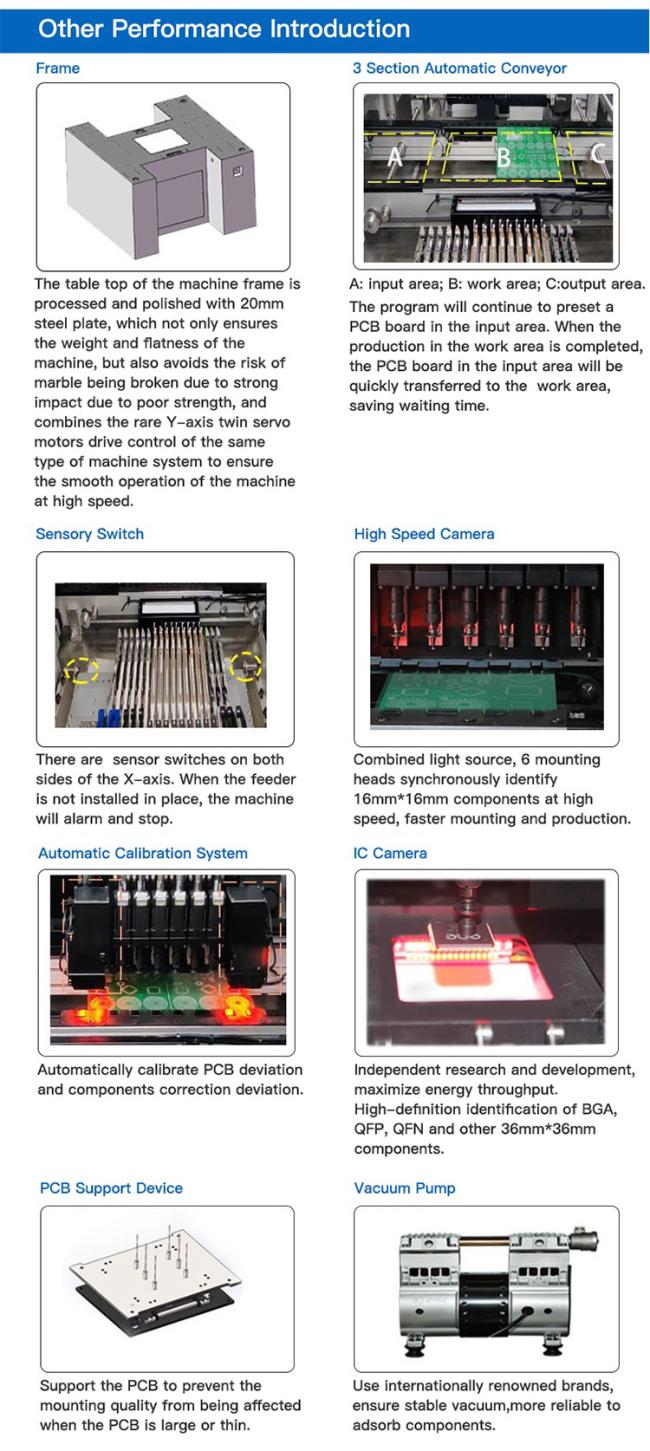

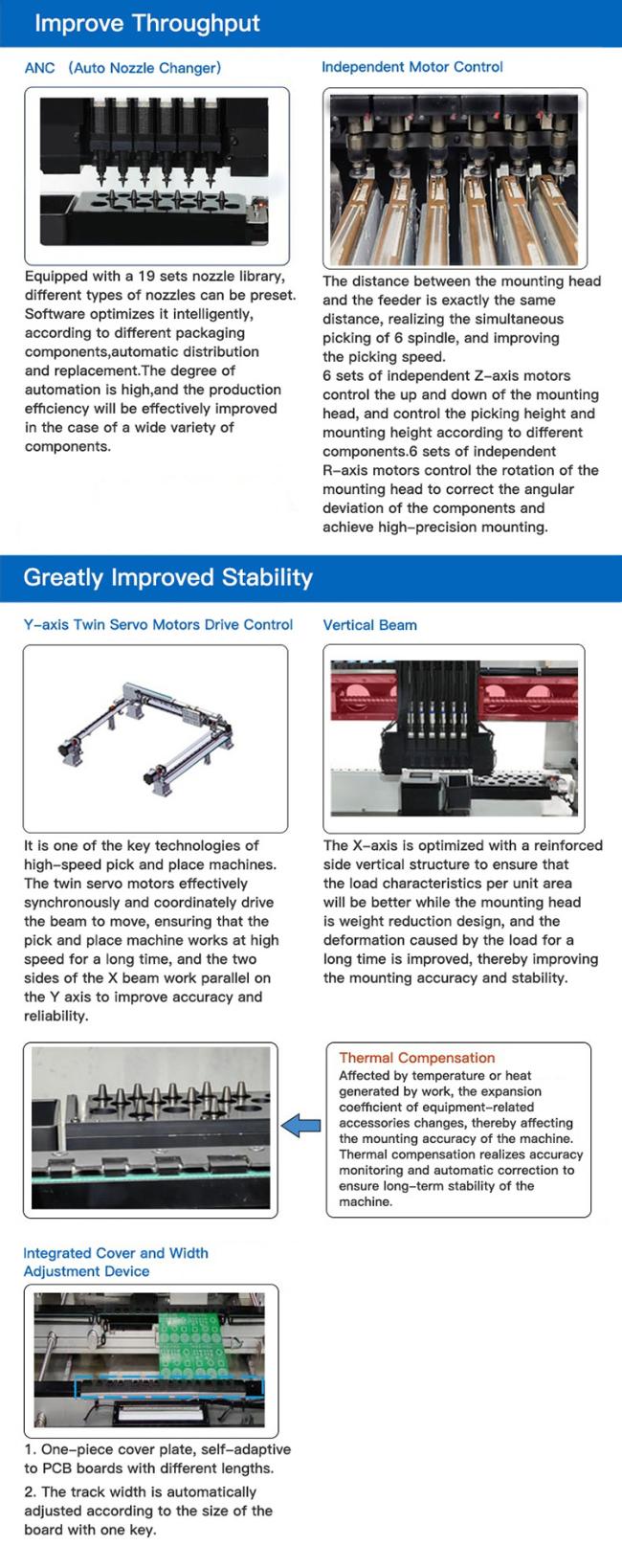

| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 400mm(L)×350mm(W) |
| PCB Conveying | 3-section-rail automatic conveying, PCB support |
| Nozzle Change | Automatic nozzle change (19-hole nozzle library) |
| Control System |
Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse |
| Drive System |
X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration |
| Transmission System | Ground Ball screw + linear guide (Y axis with double screws) |

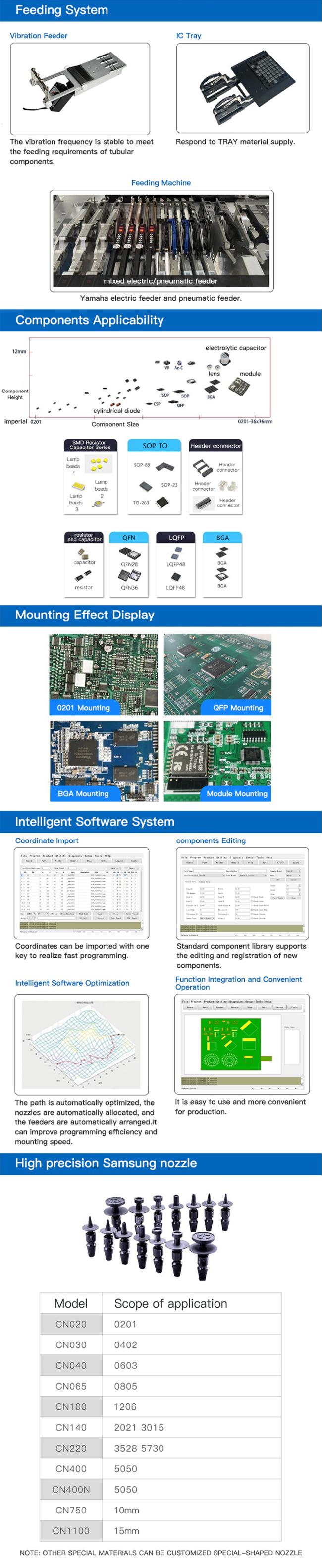

| Feeding System |
50 Yamaha 8mm standard pneumatic/electric feeder stacks (also suitable for IC tray and stick feeder) |
| Vision System |
Snapshot camera×6 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2 |
FAQ:
Q:This is the first time I use this kind of machine, is it easy to operate?
A:Yes. There are English manual and guide video that show you how to use machine.If there is any doubt in the process of operating the machine, please feel free contact us.We provide overseas distance learning services
Q;Can we customize the machine?
A:Of course. Our machines can custom made provide the number of stacks and the maximum size of PCB boards
Q;How about the warranty?
A;We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
