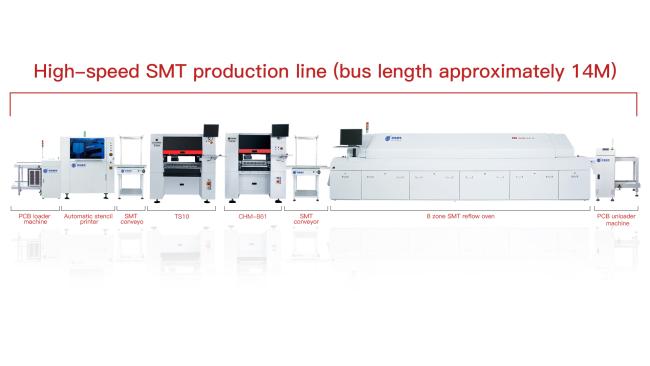

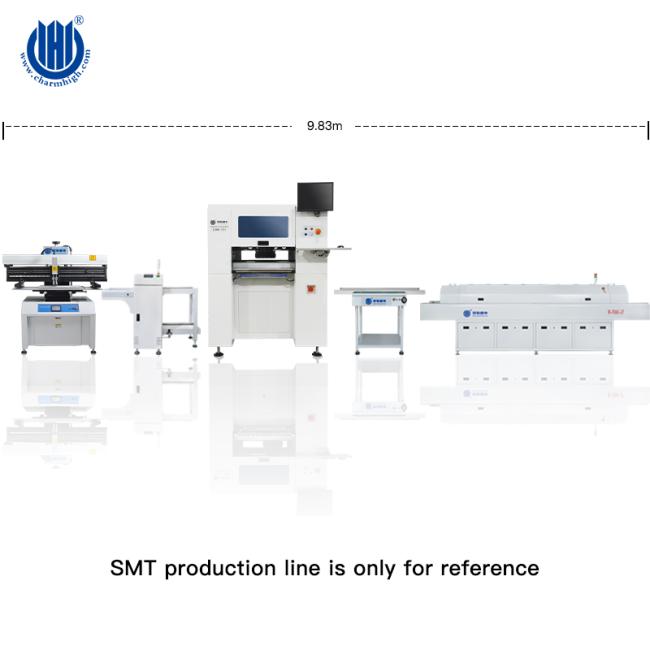

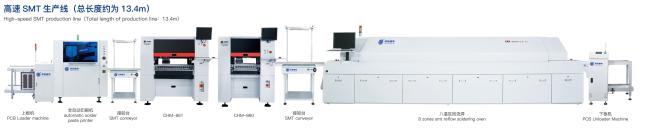

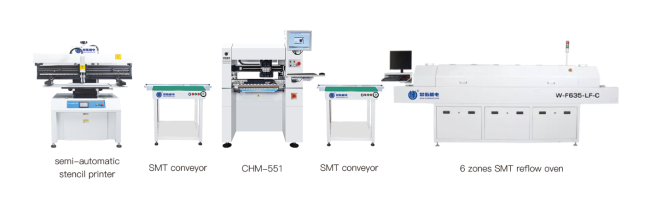

Fully Automatic / Semi Automatic Production Line SMT Pick And Place Machine

Price Negotiable

Price: Price Negotiable

MOQ: 1 set

Delivery Time: 15 work days

Brand: Charmhigh

Product Description

Fully Automatic/Semi-Automatic Production Line SMT Pick And Place Machine

TS10 Specifications
Dimensions	1600mm(L)×1688mm(W)×1560mm(H)
Weight	1930kg
Power Supply	AC380V (50Hz, three phase), 4.5kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	10
Mounting Speed	42000cph (optimal)
Mounting Accuracy	(XY)±0.04mm CPK≥1.0
Component Height	≤12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
Component Range	Inch size 0201 to 36mm*36mm, and larger components mounting.
PCB Thickness	0.6mm~3.5mm
PCB Size	600mm(L)×400mm(W) (standard); 1200mm(L)×400mm(W) (optional)
PCB Conveying	3-section-rail automatic conveying, PCB support
Nozzle Change	Automatic nozzle change (37-hole nozzle library)
Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System	100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Fly camera×10 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); It has the function of image stitching Mark camera×2
