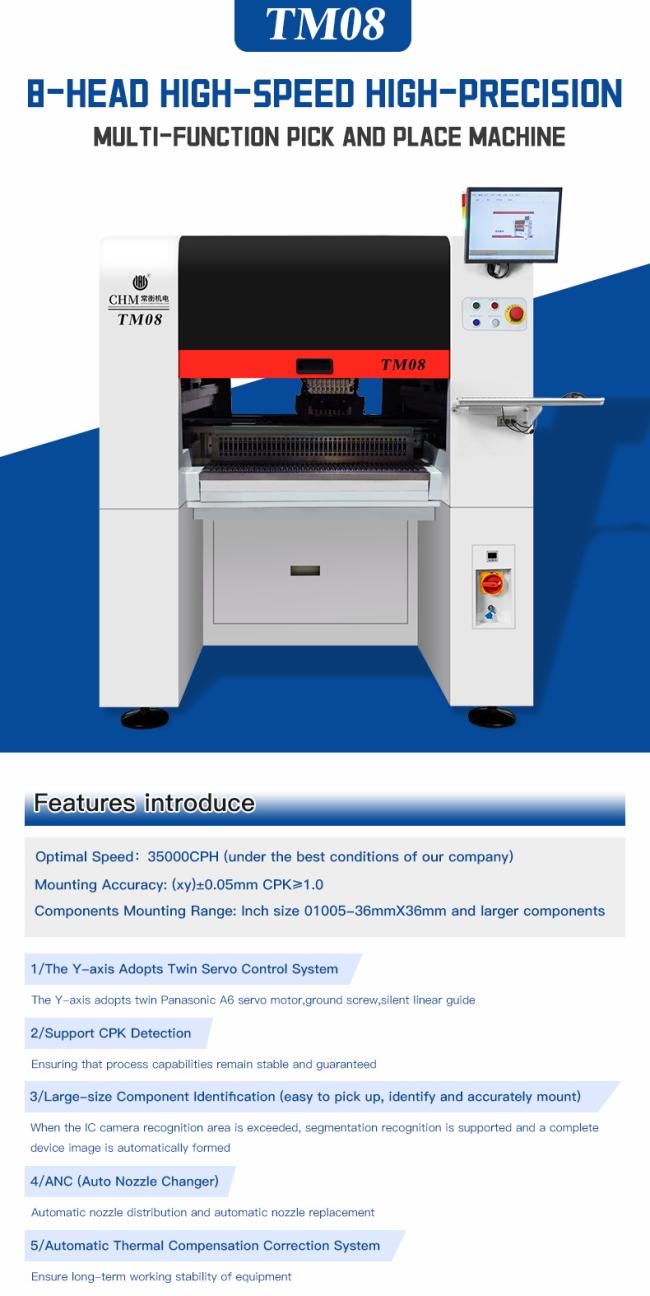

TM08 Manufacturer Electronics Production Machinery Pcb Exposure Pick And Place Motherboard Machine

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 15 work days

Brand: Charmhigh

Product Description

TM08 manufacturer electronics production machinery pcb exposure

pick and place motherboard machine

Dimensions	1280mm(L)×1320mm(W)×1500mm(H)
Weight	1500kg
Power Supply	AC220V (50Hz, single phase), 3.5kW
Air Supply	0.5MPa ~0.7MPa

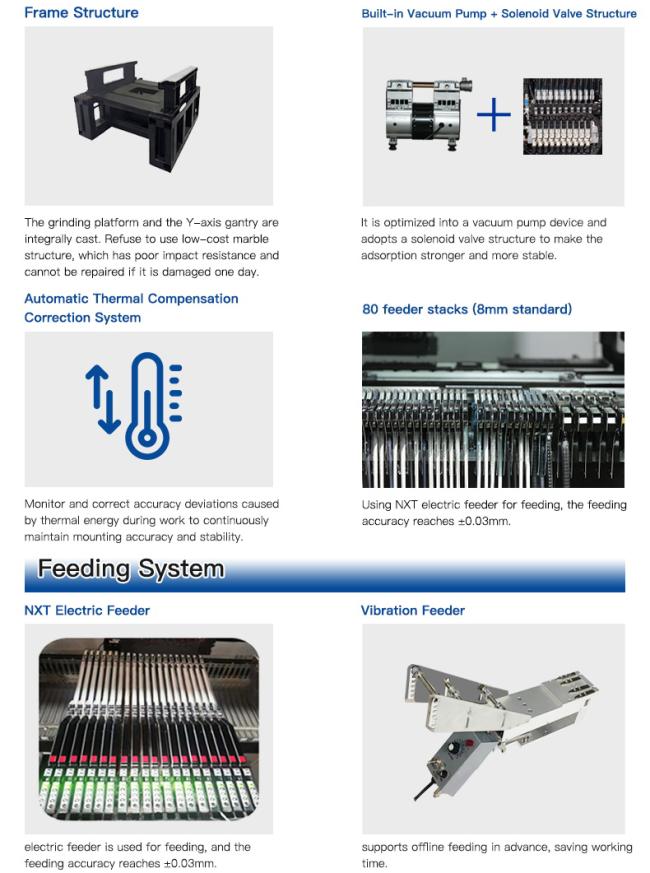

Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	8
Mounting Speed	35000cph (optimal)

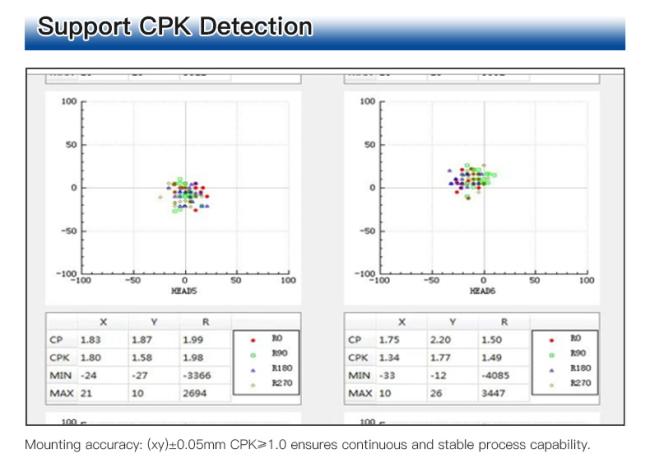

Mounting Accuracy	±0.04mm CPK≥1.0
Component Height	≤12mm
Component Type	01005/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional)
PCB Conveying	3-section-rail automatic conveying, PCB support device

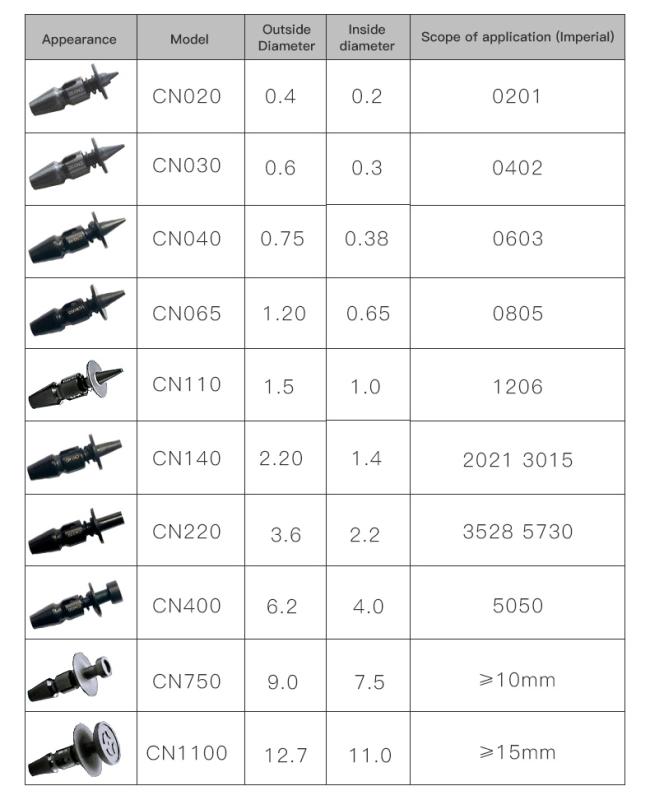

Nozzle Change	Automatic nozzle change (31-hole nozzle library)

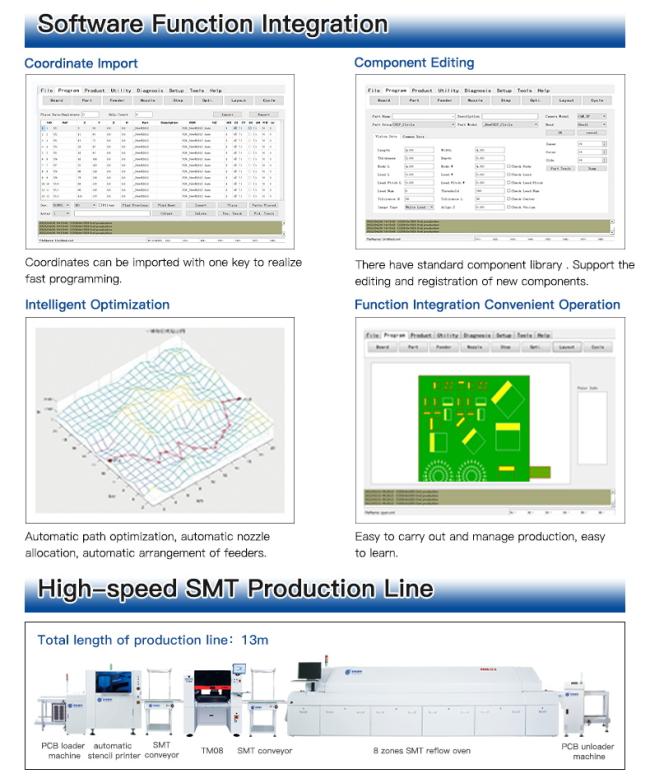

Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	X&Y axis adopting ground screw and mute linear guide (Y axis with double screws)

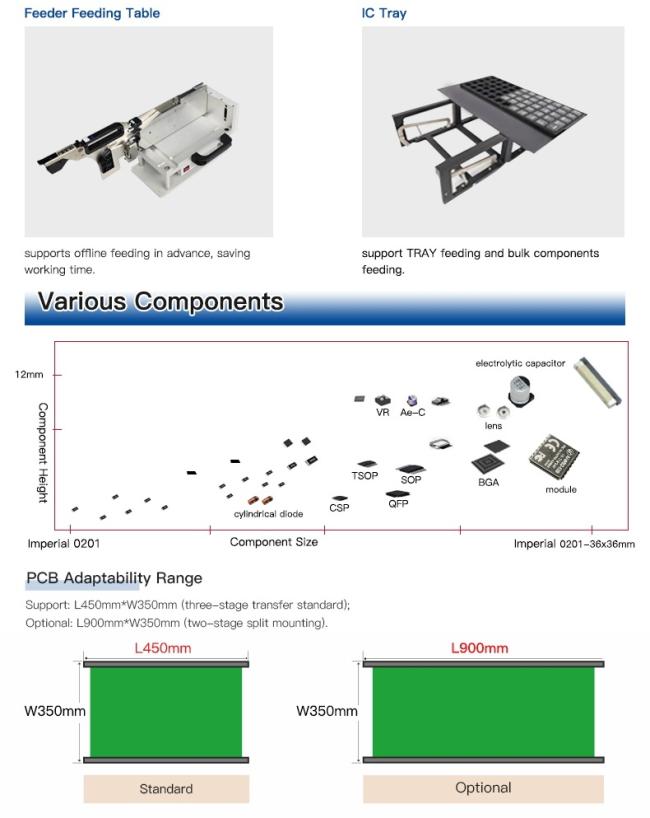

Feeding System	80 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)

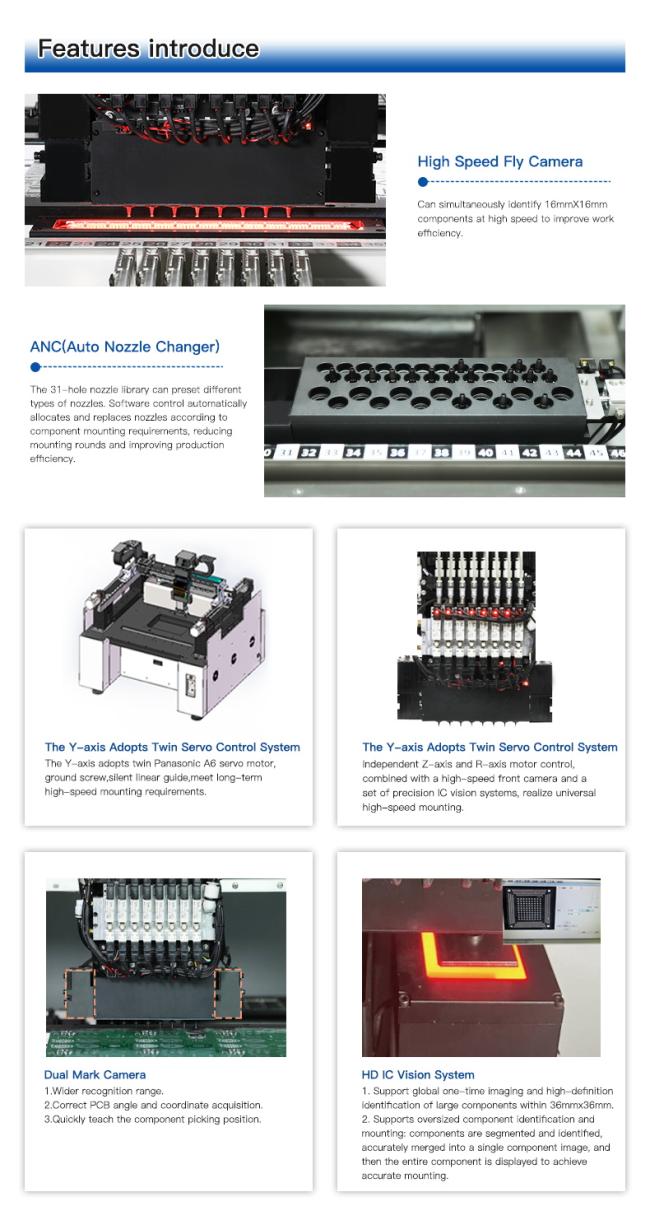

Vision System	Fly camera×8 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2

Q How about the warranty?

A: One year warranty for whole machine and free of charge for spare parts within the warranty period.Free On-line technical support for permanent.

Q Is it easy to operate?

A: Yes.It’s simple and easy to operate.. We provide English manual and guide video to show you how to use and We assure our timely support until you can control the machine.

Q.Payment Term?

A:We accept:T/T, VISA, PAYPAL, WEST UNION, BANK TRANSFER, ONLINE BANK PAYMENT.

Q:How about the quality certificate?

A: We havepassed CE certificate, ISO9001(IQNET) and have own patent.

Q: Which language is the software? Do you provide software updates?

A:English or Chinese. Free to upgrade software for lifetime.
