300mm Drawer Lead Free SMT Reflow Oven Stainless Steel Liner
300mm Drawer Lead Free SMT Reflow Oven Stainless Steel Liner

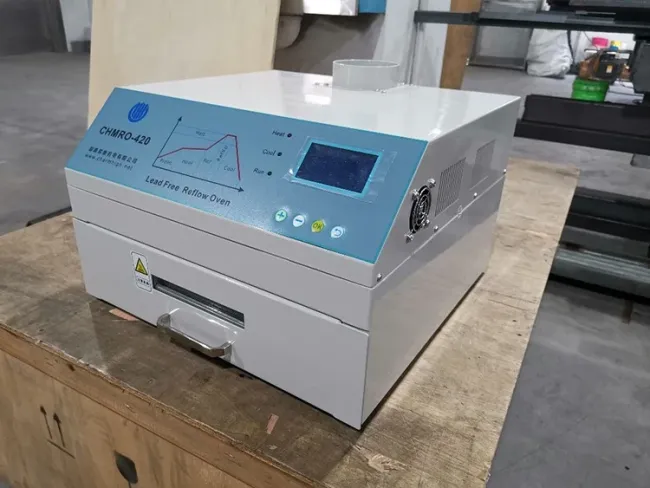

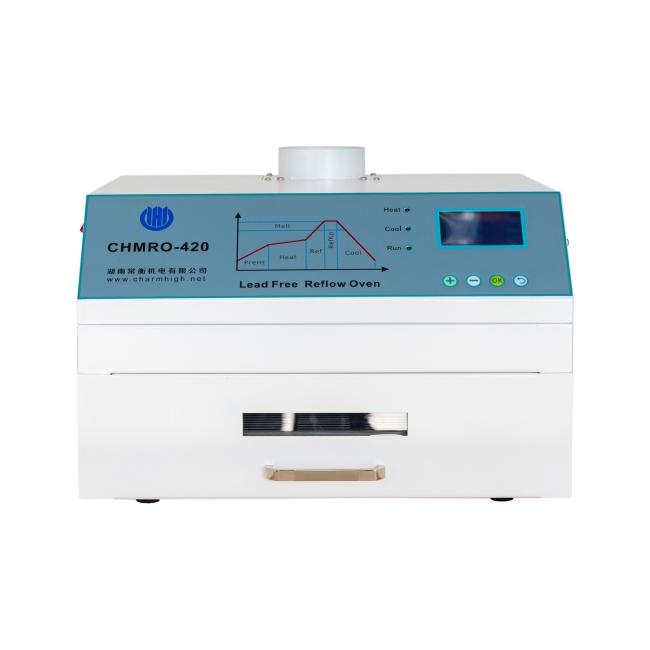

CHMRO-420 Reflow Oven
| Brand Name | Charmhigh |
| Model Number | CHMRO-420 |
| Power Supply | AC220V |
| Rated power | 2500W |
| Max temperature | 300 degree |
| Soldering max area | 270*270MM |
| Process Period | 5- 10 min |
| Welding type | Lead & Lead free |
| Soldering way | Hot air + IR mix |
Product Features:
Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;
8 reflow profile is optional, flexible production;
Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves
and visually displayed;
Built-in PID controllers, high precision temperature control;

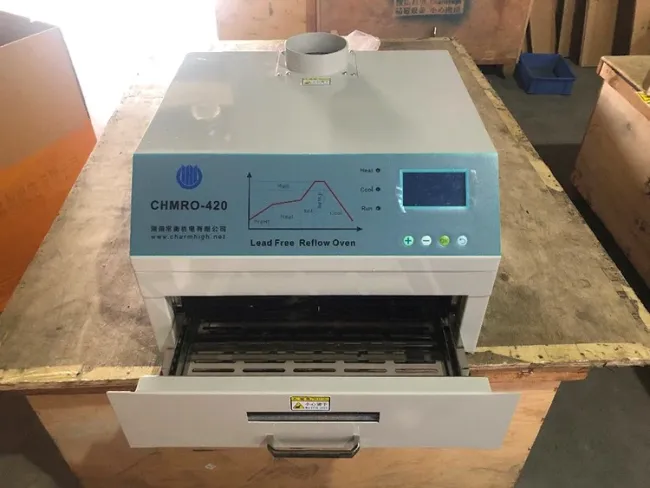

Drawer window design, commissioning and easy to use;
The use of special high alloy filament lamp life;
Dual sensor temperature;
Use iron double ball bearing fan, high temperature, long life;
Use pure stainless steel liner;
Drawer rail support with high temperature, easy to use;
Tight insulation processing;
Using industrial-grade display and control circuit;
Simple, intuitive, and efficient man-machine interface design.
Our Service:
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.
Each machine 100% test well before ship out.
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.
