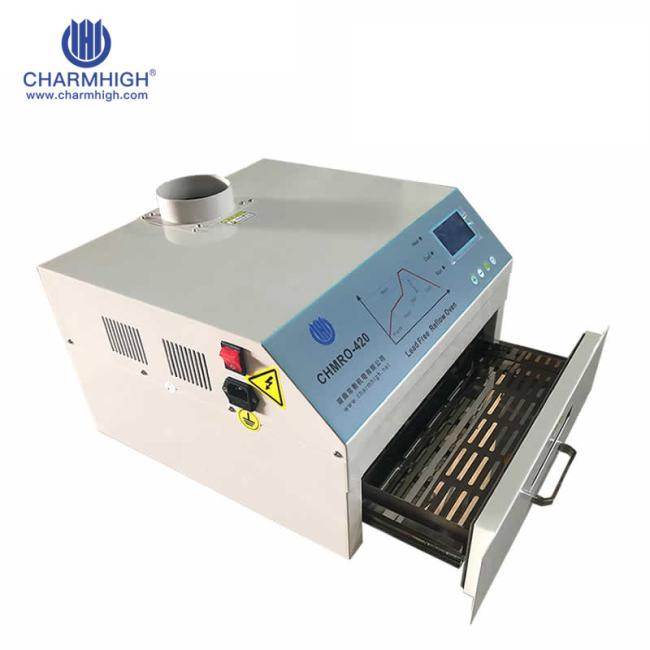

Mini High Temperature DIY Solder Reflow Oven Iron Double Ball Bearing Fan
Mini High Temperature DIY Solder Reflow Oven Iron Double Ball Bearing Fan
| Model | CHMRO-420 |
| Dimensions | 420*405*265mm |
| Net weight | 20KG |
| Rated power | 2500W(peak power) |
| Rated voltage | AC220V50Hz/60Hz |
| Drawer size | 300*300mm |
| Soldering Type | Lead soldering/Lead-free soldering |
| Maximum soldering Temperature | 300℃ |
| Temperature Control Accuracy | ±1℃(at constant temperature) |
| Soldering Cycle | 5~10minutes |
| Saved Roflow Curve Quantity | 8 |
Product Features:
Built-in PID controllers, high precision temperature control;
Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;
8 reflow profile is optional, flexible production;
Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves and visually displayed;
Drawer window design, commissioning and easy to use;
The use of special high alloy filament lamp life;
Dual sensor temperature;
