Visual And Vacuum Inspection Charmhigh SMT PNP Machine Chm-T530p4
Visual And Vacuum Inspection Charmhigh PNP SMT Pick And Place Machine Chm-T530p4
| CHM-T530P4Specifications | |
| Dimensions | 1060mm(L)×780mm(W)×600mm(H) |
| Weight | 115kg |
| Power Supply |
AC220V (50Hz, single phase) /AC110V (60Hz, single phase); 400W |
| Air Supply | 0.5MPa~0.7MPa |
| Vacuum Generation | Built-in vacuum pump |
| Mounting Head Quantity | 4 |
| Mounting Speed |
8000cph(optimalwithout vision detection); 5500cph (optimal with vision detection) |
| Control Accuracy | 0.015mm |
| Component Type |
0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.) |
| PCB Thickness | 0.6mm~3.5mm |
| PCB Size | 10mm(L)×10mm(W)～400mm(L)×330mm(W) |
| PCB Conveying | Manual operation |
| Nozzle Change | Manual operation |
| Control System |
Built-in computer (embedded Linux operating system), 7-inch touch screen |
| Drive System | X&Y-axisdriven by stepping motors in the way of closed-loop control; Z-axis capable of reset detection;all motors adopting flexible S-curve acceleration and deceleration |
| Transmission System | Synchronous belt + linear guide |
| Feeding System |
30 Yamaha standard pneumatic feeder stacks (also suitable for Yamaha electric feeder, IC tray, and stick feeder), 11 preset general IC stacks, worksurface custom IC trays supported |
| Vision System | Up-looking camara for component automatic calibration (component size applicable: 22mm×22mm); down-looking camera for PCB calibration via Mark Point and component positioning |
Machine description:

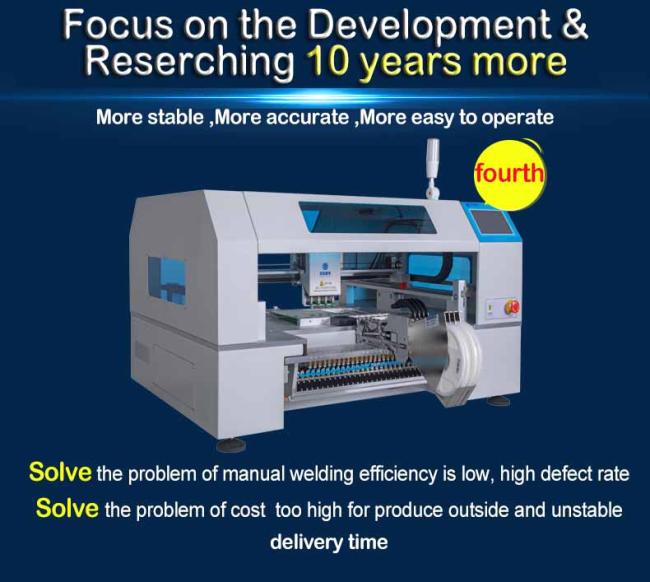

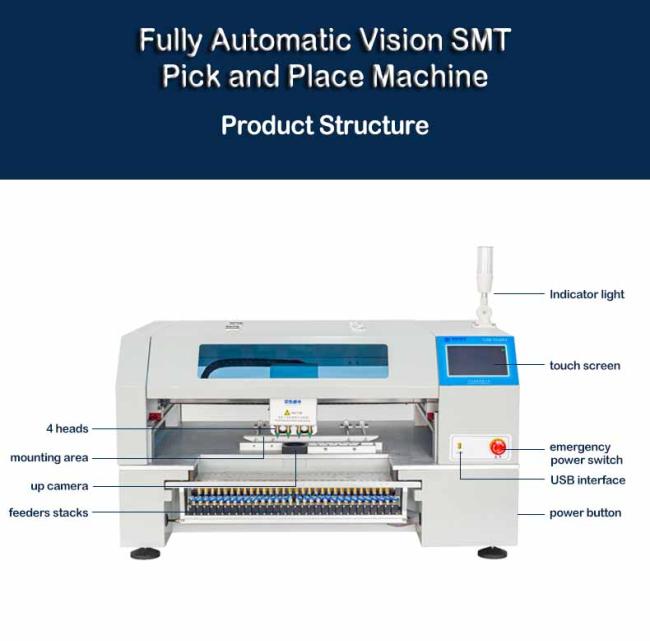

CHMT530P4 has 4 heads, mounting speed is faster. For small SMT production, it is your good helper!
The operation system is embedded Linux system, the main board of machine was researched by ourselves, which is more reliable than windows system, and life time is much longer. CHMT530P4 using 502---507 different kinds of Juki nozzles, suitable for 0402,0603,0805-5050, SOP, QFN, LQFP, Diode, Transistor, BGA...etc, which can meet more customers' demand.
Our Service:
This SMT machine will be tested well before ship out.
Tools and manuals are complete included in the package.
Each machine 100% test well before ship out.
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.
Support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
If you want to get more information ,Please don't hesitate to contact me,we will response you at first time.
