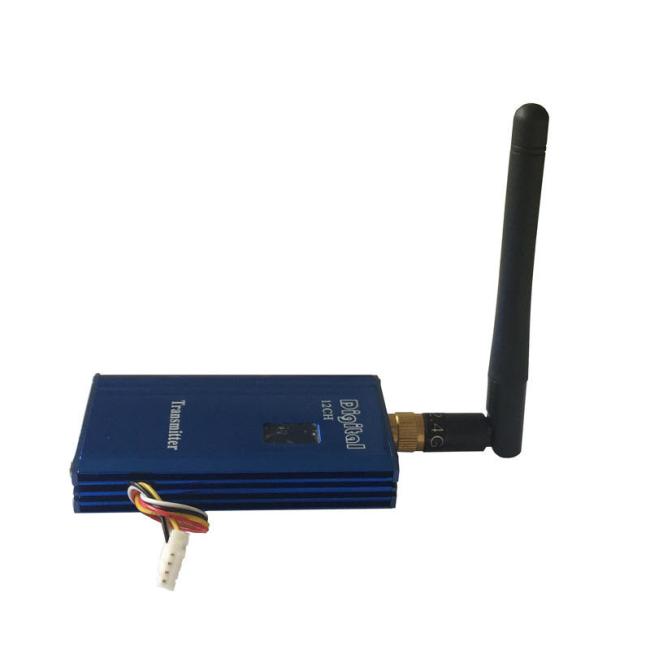

2.4Ghz FM Wireless Video Transmitter 12 Channels Long Range Transmitter and Receiver
High Quality Analog Wireless Video Transmitter and Receiver with 5 Watt BNC Input
CCTV wireless video sender Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
Specification:
| Model | DS-B1 |
| Voltage | DC 12V |
| Current | 600mA |
| Frequency | 2.4Ghz |
| Number of channels | 12 CHs |
| Transmit Power | 1000mW |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Distance (Open environment) | 1000m-2000m, 20km from air to ground |
| Overall Configuration | Transmitter, receiver, video cable, antenna |
| Temperature | -10°C ~ +50°C |
| Transmitter Weight | 82g |
| Receiver Weight | 120g |
| Dimensions (L * W * H) | Transmitter:73*41*14mm. Receiver:116*80*21mm |
| Box size (L * W * H) | 245*160*65mm |
