14500 3.2V600mah Lithium LiFePO4 Battery

Price Negotiable

Price: negotiable

MOQ: 10PCS/ORDER

Delivery Time: 3-5days

Brand: Purple Horn

Product Description

3.2V LiFePO4 Battery Cell AA 14500 600mah for Solar Lamp and Led

Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information

IFR14500 3.2v flat type

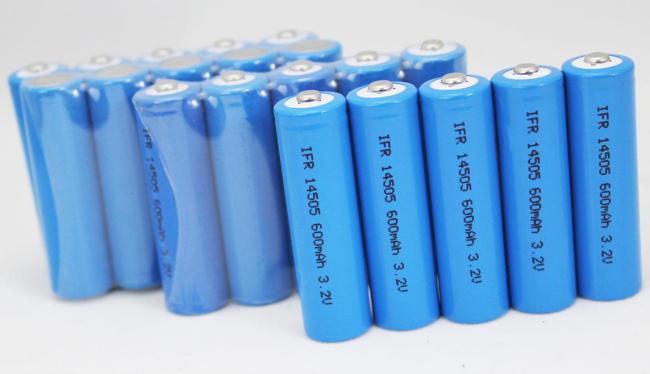

IFR14505 3.2V Top type

The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm

Pls check the max size if your measure with strict require .

1. 14500 /14505 cell ,the rated voltage is 3.2V and the normal capacity is 600mAh

2. Widely application in solar product field.

3. There are a varity of capacity for your choose,such as 250mAh,400mAh,500mAh,600mAh etc.

4. deep cycle life is about 2000 times

5. the cell is flat type can be assembled various lithium pack

6.Lithium Ion AA 3.2v Lifepo4 Battery 600mah For Led Lamp and Solar Lamp

No.	Items	Specifications		Remark
1	Nominal Capacity	600mAh		0.2C Standard discharge
2	Minimum Capacity	550mAh		0.2C Standard discharge
3	Nominal Voltage	3.2V		Mean Operation Voltage
4	Delivery voltage	3.28~3.32V		Within 10 days from Factory
5	Charge Voltage	3.65V±0.03V		By standard charge method
6	Standard charging method	0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7	Charge current	0.2C	120mA	Standard charge, charge time about 7h(Ref)
7	Charge current	1.0C	600mA	Rapid Charge, charge time about: ::1.5h(Ref)
8	Standard discharging method	0.2C constant current discharge to 2.5V,
9	Cell Internal Impedance	≤60m&OPurple Horn;		Internal resistance measured at AC 1KHZ after 50% charge

10	Maximum charge current	1C	600mA	For continuous charging mod
11	Maximum discharge current	3C	1800mA	For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)
12	Operation Temperature and relative humidity Range	Charge	0~45℃ 60±25%R.H.	Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
12	Operation Temperature and relative humidity Range	Discharge	-20~60℃ 60±25%R.H.
13	Storage temperature for a long time	-20~25℃ 60±25%R.H.		Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.
