Deepcycle 12.8V33Ah Lifepo4 Lithium Battery Pack For Solar Energy Storage
Price:
negotiable
MOQ:
1PCS/ORDER
Delivery Time:
3-5days
Brand:
Purple Horn
Product Description

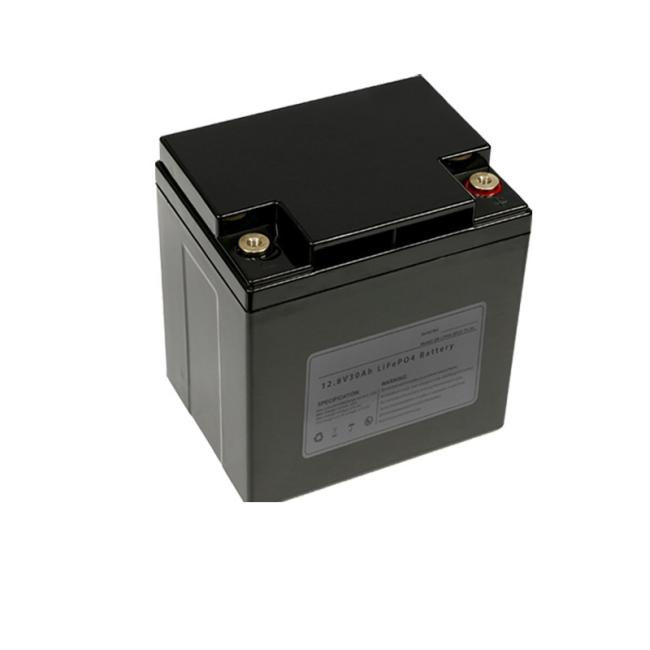

Deepcycle 12.8V33Ah LiFePO4 Battery Pack for UPS / Solar Energy Storage
Product Application
The model battery can be replaced for:
Smart Devices, medical devices, mechanical devices, energy storage, Motorcycles batteries, cars batteries, RV batteries, home solar system,Camper batteries, tuk-tuk batteries, sightseeing bus batteries, Pedicab batteries, yacht batteries, three wheeler vehicle batteries, Bank Power supply systems batteries, UPS batteries, Tricycles batteries, Limousine batteries, Telecom Stations batteries, Solar Energy Storage batteries, Wind Energy Storage batteries, Hospital Power Supply system batteries, Home Power System batteries, etc.
Products Description
|
Basic Parameter
|
|||
|
1
|
Size:
|
165*175*125*125 mm
|
|
|
2
|
Capacity:
|
33Ah
|
|
|
3
|
Cell Model
|
LiFePO4 32700(4S5P)
|
|
|
4
|
Battery Type
|
LiFePO4 rechargeable
|
|
|
5
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
6
|
Charging Current
|
6A
|
|
|
6
|
Max.Charging Current
|
15A
|
|
|
8
|
Max. Continuous Current
|
30A
|
|
|
9
|
Max.Pulse Current
|
60A(
|
|
|
10
|
Discharging Cut-off Voltage
|
10V
|
|
|
11
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
12
|
Operating temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
13
|
Water Dust Resistance
|
IP55
|
|
|
14
|
Terminal
|
M5
|
|
|
15
|
Weight
|
Approx. 3.7kg
|
|
|
16
|
Casing
|
Plastic
|
|
|
Application
|
|||
|
◆ UPS
◆ Solar &Wind Power System
◆ Golf Cart
◆Electric Vehicle , E-bike, E-rickshaw etc.
◆ Lighting
|
|||
12.8V LiFePO4 Battery Pack series
| 序号 | 规格MODEL | 标称电压 Nominal Voltage | 标称容量Capacity | 尺寸Size | 充电电流Charge current | 充电电压Charge voltage | 放电电流Discharge Current | 放电电压Discharge Voltage |
| 1 | 12.8V5Ah | 12.8V | 5Ah | 90*70*101mm | 2A | 14.4V-14.6A | 10A | 10.0V-10.5V |
| 2 | 12.8V6Ah | 12.8V | 7Ah | 151*65*95mm | 3A | 14.4V-14.6A | 15A | 10.0V-10.5V |
| 3 | 12.8V8Ah | 12.8V | 9Ah | 151*65*100mm | 4A | 14.4V-14.6A | 20A | 10.0V-10.5V |
| 4 | 12.8V12Ah | 12.8V | 12Ah | 151*99*98mm | 4A | 14.4V-14.6A | 25A | 10.0V-10.5V |
| 5 | 12.8V18Ah | 12.8V | 18Ah | 183*77*156mm | 6A | 14.4V-14.6A | 30A | 10.0V-10.5V |
| 6 | 12.8V20Ah | 12.8V | 20Ah | 181*77*175mm | 8A | 14.4V-14.6A | 50A | 10.0V-10.5V |
| 7 | 12.8V25Ah | 12.8V | 25Ah | 166*175*125mm or 168*161*106 | 10A | 14.4V-14.6A | 60A | 10.0V-10.5V |
| 8 | 12.8V33Ah | 12.8V | 33Ah | 194*132*172mm | 10A | 14.4V-14.6A | 80A | 10.0V-10.5V |
| 9 |  12.8V50Ah |
12.8V | 55Ah | 223*150*178mm | 20A | 14.4V-14.6A | 100A | 10.0V-10.5V |
| 10 | 12.8V100Ah 带蓝牙bluetooth |
12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 11 | 12.8V100Ah | 12.8V | 100Ah | 330*170*220mm | 30A | 14.4V-14.6A | 125A | 10.0V-10.5V |
| 12 | 12.8V130Ah | 12.8V | 130Ah | 330*170*220mm | 35A | 14.4V-14.6A | 150A | 10.0V-10.5V |
| 13 | 12.8V200Ah | 12.8V | 200Ah | 483*170*240mm | 60A | 14.4V-14.6A | 200A | 10.0V-10.5V |
