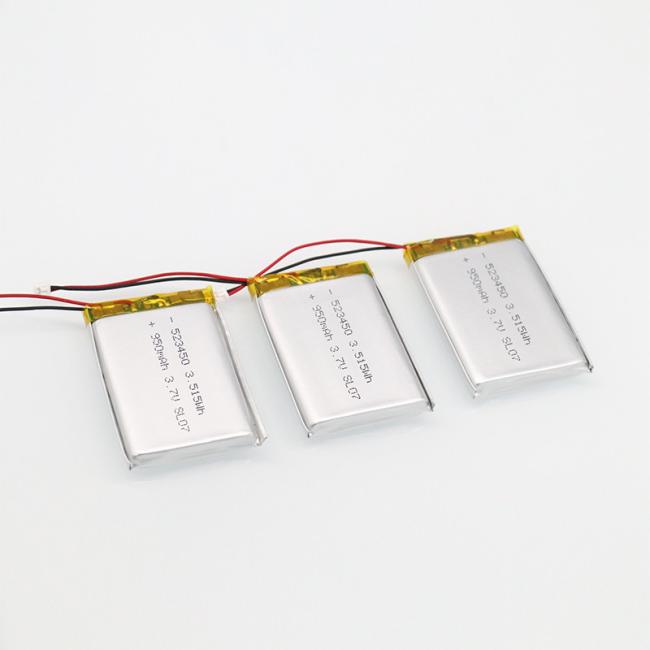

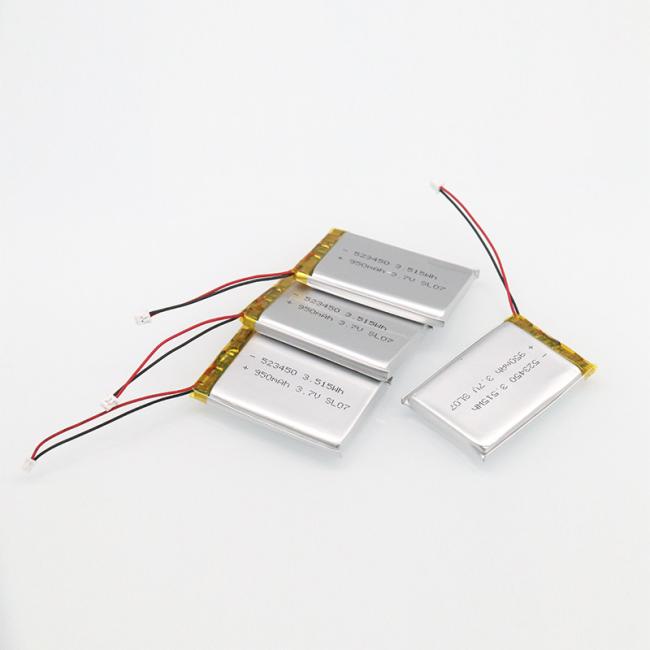

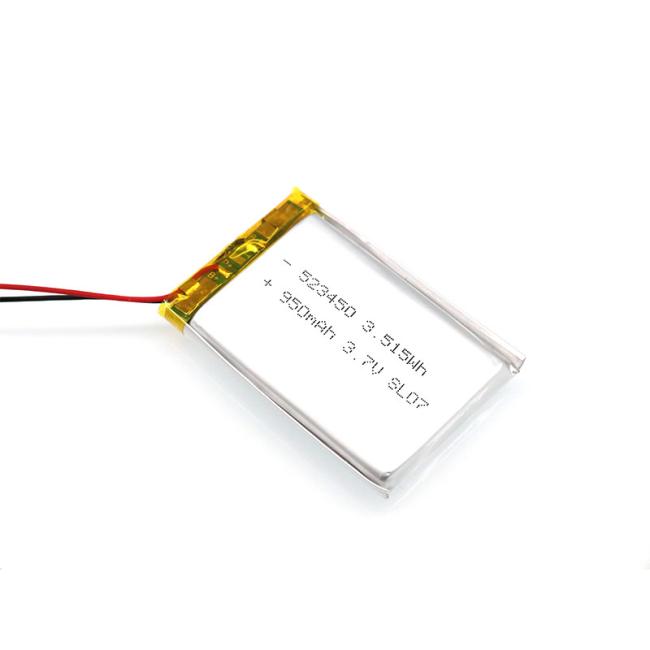

OEM ODM 852940 3.7v950mah Lithium Ion Polymer Battery For Mp3 Mp4 Headset
Price:
negotiable
MOQ:
10PCS/ORDER
Delivery Time:
3-5days
Brand:
Purple Horn
Product Description
Key Specifications/Special Features:
3.7V 950mAh Lithium Battery Li-polymer Smart Bluetooth Device Battery,IOT Lipo Battery
with IEC62133 UN38.3
Specifications:
1, Part number: HPL503450-950mAh
2, Battery type: Lithium Polymer battery
3, Battery power: 3.7V 950mAh 3.515Wh
4, Standard discharge current: 0.5C 475mA
5, Standard charge (0.2C): 4.2V 190mA
6, Max. discharge current: 1.0C 950mA
7, Battery impedance: ≤180m&OPurple Horn;
8, Operating temperature: 0 - 45°C (charging), -20 - 60°C (discharging)
Design scheme
1, IC: S-8261AANMD-G3J+8205*2+10K NTC
2, Over charge protection voltage: 4.275±0.025V
3, Over discharge protection voltage: 2.30±0.05V
4, Over current protection current: 3-5A
5, Over charge release voltage: 4.175±0.025V
6, Over discharge release voltage: 2.40±0.05V
7, Impedance: ≤180m&OPurple Horn;
8, Operating temperature: -40 - 85°C
Battery feature
1, Storage for 24 hours at 85°C, battery capacity retention rate more than 90%, battery thickness expansion rate below 5%
2, Storage for 4 hours at 90°C, battery capacity retention rate more than 95%, battery thickness expansion rate below 5%
3, Storage for 2 hours at 100°C, battery thickness expansion below 5%
Certification
1, DG Certification, UL1642, IEC62133, UN38.3-DGM, UN38.3-Shanghai TECH, UL-CICC Test report, MSDS, UN38.3
2, Available for CE, FCC, CB, KC, PSE, EN62133
Hypercell advantages
1, More than 450 models which could meet different customer's requirement.
2, Customization.
3, 5 chemical R&D team, 8 engineers (structural, electrical and quality) could provide profession support for your product.
4, High automatic production line could support 40, 000 pieces output every day.
with IEC62133 UN38.3
Specifications:
1, Part number: HPL503450-950mAh
2, Battery type: Lithium Polymer battery
3, Battery power: 3.7V 950mAh 3.515Wh
4, Standard discharge current: 0.5C 475mA
5, Standard charge (0.2C): 4.2V 190mA
6, Max. discharge current: 1.0C 950mA
7, Battery impedance: ≤180m&OPurple Horn;
8, Operating temperature: 0 - 45°C (charging), -20 - 60°C (discharging)
Design scheme
1, IC: S-8261AANMD-G3J+8205*2+10K NTC
2, Over charge protection voltage: 4.275±0.025V
3, Over discharge protection voltage: 2.30±0.05V
4, Over current protection current: 3-5A
5, Over charge release voltage: 4.175±0.025V
6, Over discharge release voltage: 2.40±0.05V
7, Impedance: ≤180m&OPurple Horn;
8, Operating temperature: -40 - 85°C
Battery feature
1, Storage for 24 hours at 85°C, battery capacity retention rate more than 90%, battery thickness expansion rate below 5%
2, Storage for 4 hours at 90°C, battery capacity retention rate more than 95%, battery thickness expansion rate below 5%
3, Storage for 2 hours at 100°C, battery thickness expansion below 5%
Certification
1, DG Certification, UL1642, IEC62133, UN38.3-DGM, UN38.3-Shanghai TECH, UL-CICC Test report, MSDS, UN38.3
2, Available for CE, FCC, CB, KC, PSE, EN62133
Hypercell advantages
1, More than 450 models which could meet different customer's requirement.
2, Customization.
3, 5 chemical R&D team, 8 engineers (structural, electrical and quality) could provide profession support for your product.
4, High automatic production line could support 40, 000 pieces output every day.
Specification
Names | Specifications |
Type | Lithium polymer battery |
Nominal voltage | 3.7V |
Nominal Capacity | 950mAh |
Dimension | 8.5*29*40 mm |
Mode | 950mAh |
Max.charge current | 1.0C |
Max.discharge current | 1.0C |
Charge current | Standard Charging: 0.5C Rapid charge: 1.0C |
Standard Charging method | 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C |
Charging time | Standard Charging: 3.0 hours(Ref.) Rapid charge: 2 hours(Ref.) |
Discharge cut-off voltage | 2.45V~3.0V |
Operating temperature | -20°C~+60 °C |
Storage temperature | 25°C |
Weight | 19 g |
Application | PDA, tablet PC, e-book, MID, mine lamp, headset,MP3,MP4,MP5, power bank and so on. |
