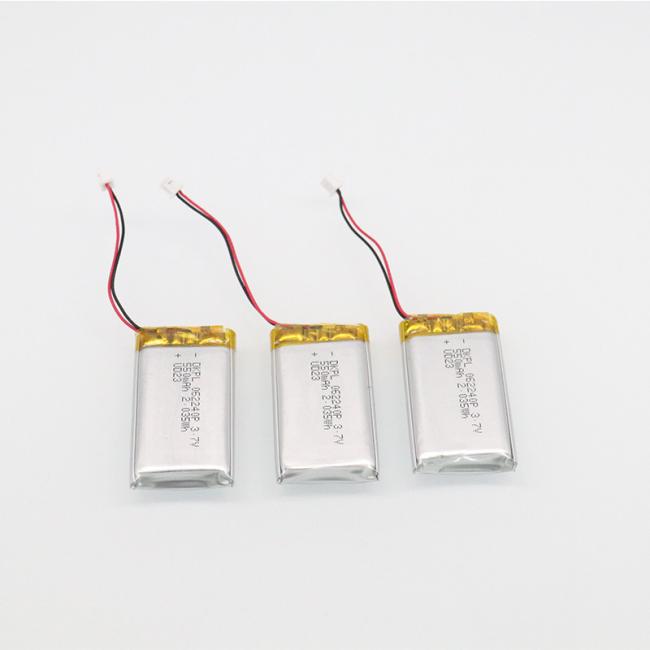

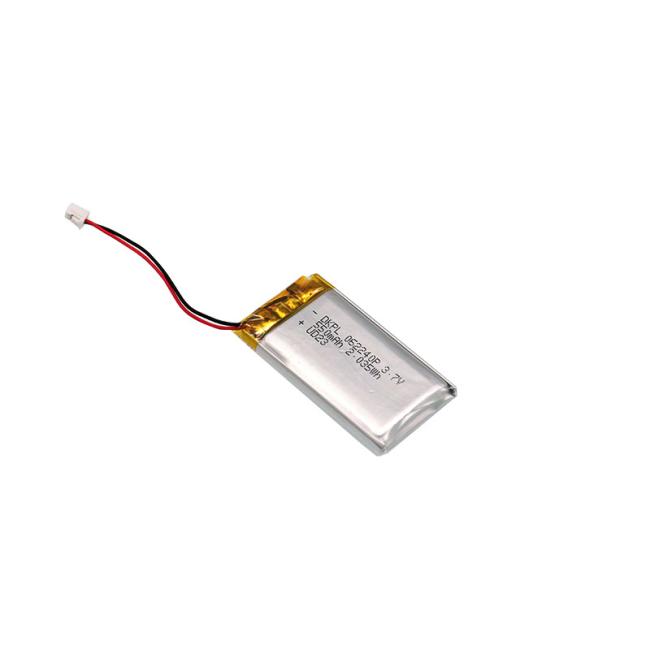

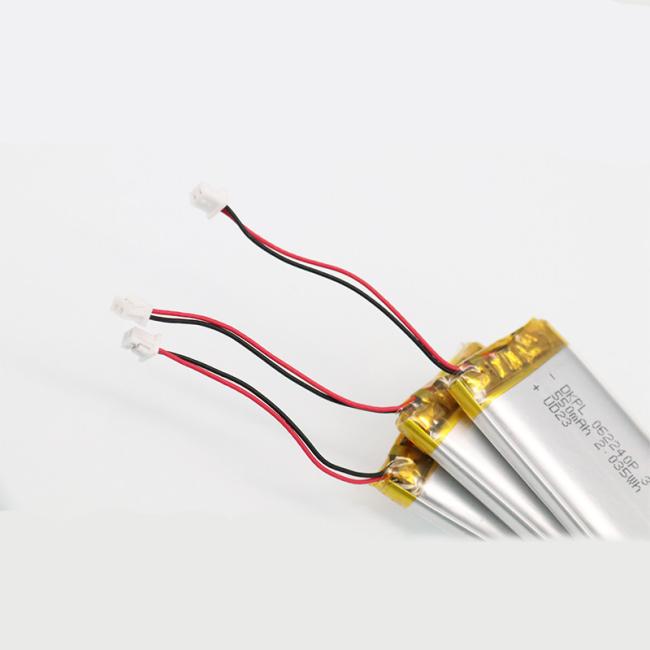

JP602540-5C 3.7 V 550mah Lipo Battery 10.4g For Electronic Equipment
Price:
negotiable
MOQ:
10PCS/ORDER
Delivery Time:
3-5days
Brand:
Purple Horn
Product Description
Key Specifications/Special Features:
Battery Type: Li-ion battery
Nominal Voltage: 3.7V
Nominal Capacity:550mAh 25ºC,C10
Nominal Energy: 7.53Wh 25ºC,C10
Operation Voltage: 2.85-3.65V
Operation Temperature Charge: 0°C - 55°C | Discharge: -20°C - 60°C
Cycle Life : 100%DOD>3000 cycles (2.035Wh 25ºC,C10)
Cycle Life : 80%DOD>4000 cycles (1.6Wh 25ºC,C10)
Cycle Life : 50%DOD>6000 cycles (1Wh 25ºC,C10)
Model: 20200814
Size: 6x25x40mm
Terminal Type: M6
Environment Protection: IP65
Nominal Voltage: 3.7V
Nominal Capacity:550mAh 25ºC,C10
Nominal Energy: 7.53Wh 25ºC,C10
Operation Voltage: 2.85-3.65V
Operation Temperature Charge: 0°C - 55°C | Discharge: -20°C - 60°C
Cycle Life : 100%DOD>3000 cycles (2.035Wh 25ºC,C10)
Cycle Life : 80%DOD>4000 cycles (1.6Wh 25ºC,C10)
Cycle Life : 50%DOD>6000 cycles (1Wh 25ºC,C10)
Model: 20200814
Size: 6x25x40mm
Terminal Type: M6
Environment Protection: IP65
Product Description
◆ 10 years of li-polymer battery manufacture & export experience
◆ Excellent quality, advanced services and competitive prices
◆ Reply within 24 working hours
◆ Professional R&D team supporting
|
Rechargeable lipo battery JP602540-5C 550mAh 3.7v for electronic equipment
|
|||
|
Battery Type
|
Li-Polymer
|
Material
|
LiCoO2/NMC
|
|
PN
|
602540-5C
|
Voltage/Capacity
|
3.7V/550mAh
|
|
Weight
|
Approx 10.4g
|
Shape
|
Soft pack
|
|
Dimensions
|
6.1(T)x25.5(W)x42.5(L)mm MAX
|
Package
|
Inner Tray + Carton
|
|
Cycle Life
|
≥500 times
|
Warranty
|
12 months
|
|
Charge Info
|
Charge Cut-off Voltage : 4.20V±0.05V
|
||
|
Charging method: CC/CV
|
|||
|
Standard Charge Current : 2750 mA (5C)
|
|||
|
Max Charge Current: 2750mA (5C)
|
|||
|
Discharge Info
|
Discharge Cut-off Voltage : 3.0V
|
||
|
Max Constant Discharge Current : 2750mA/Customized
|
|||
|
Working
Temperature
|
Standard Charge: 0~+40℃
|
||
|
Standard Discharge: -20~+60℃
|
|||
|
Production Lead Time
|
In stock: 5-7 working days; Out of stock: 5-6 weeks
|
||
◆ Production Reference: GB/T18287-2000, UL1642 and IEC61960-1:2000.
|

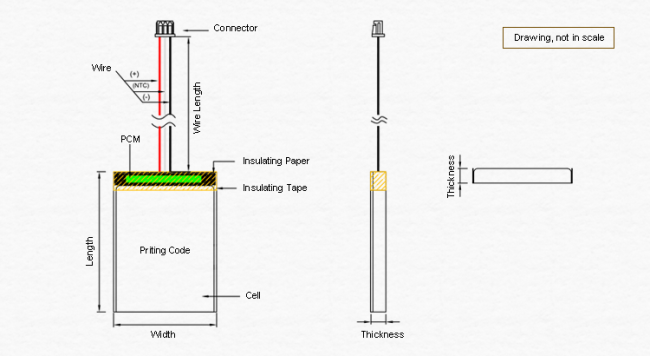

Thickness MAX
|
Width MAX
|
Length MAX
|
Wire Length
|
Connector
|
|
6.1mm
|
25.5mm
|
42.5mm
|
UL1571 24# 60mm
|
JST PHR-2 2.0mm pitch
|
Application
