3.2v Lifepo4 Lithium Iron Phosphate Battery 150ah E Bike Lifepo4 Battery

Price Negotiable

Price: negotiable

MOQ: 10PCS/ORDER

Delivery Time: 3-5days

Brand: Purple Horn

Product Description

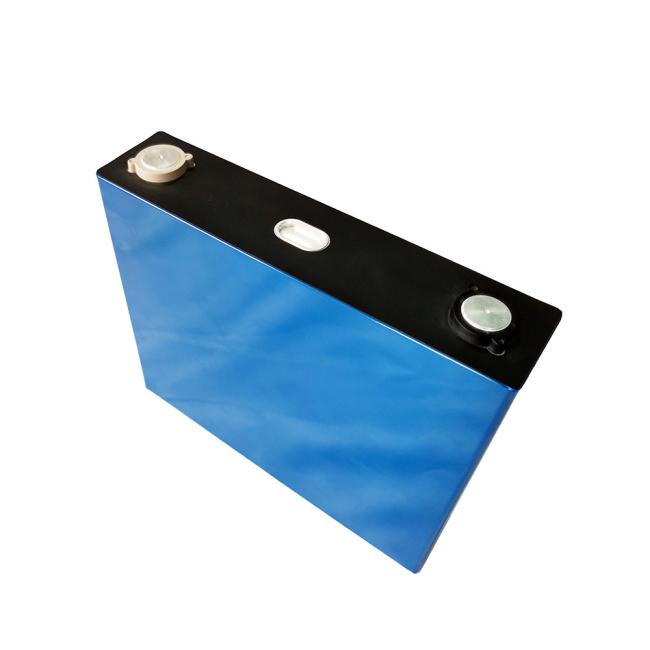

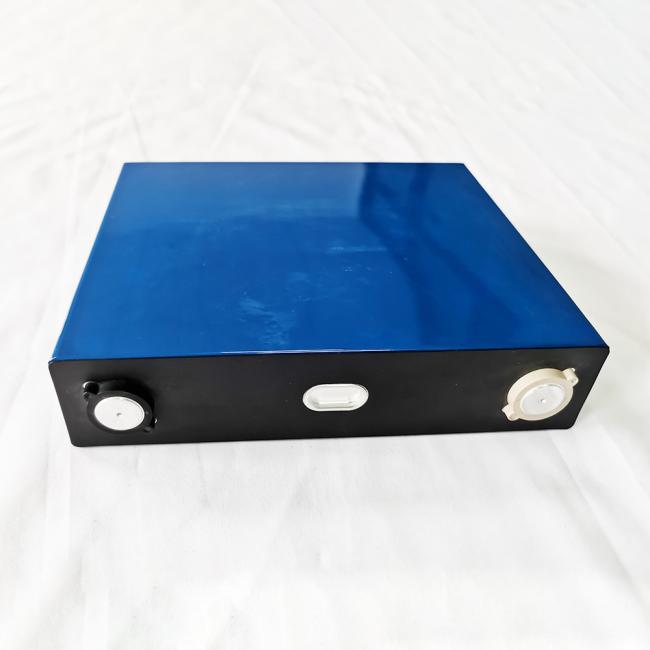

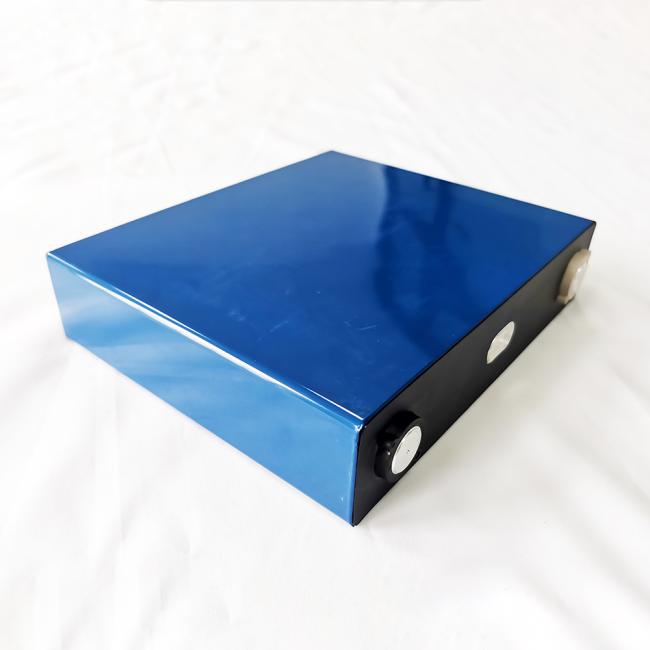

3.2v 150Ah lifepo4 battery cell 12 months warranty LFP battery lithium battery

Key Specifications/Special Features:

Descriptions:

Battery type: LiFePO4 Battery
Model: HF-LFP32120
Nominal voltage: 3.2V
Rated capacity: 50Ah/80Ah/100Ah/120Ah/150Ah/200Ah/240Ah
EnergyNormal energy (40°C , 0.5C): 384 Wh
Volumetric energy density: 95Wh/L
Gravimetric energy density: 96Wh/kg
Dimensions (W*D*H)Length*Width* Thickness: 170*175*48mm
Standard Discharge 25°C Standard charge current0.5C Standard charge, charge time: 3h(Ref)
Charge voltage: 3.65V±0.03V
Max. constant charge current1C Rapid Charge, charge time: 1.5h(Ref)
Standard charge: 25℃
Standard discharge current:1C
Discharge voltage: 2.5V
Max. constant discharge current: 3C
Cell Internal ImpedanceInternal resistance measured: at AC 1KHZ after 50% charge≤0.7m&OPurple Horn;
Round trip efficiency(%): ＞98%
Calendar life25℃: ＞5 years
Cycle life (0.5C, 25℃): 60% DOD 4000 cycles
Operating temperatureCharging: 0℃~45℃
Discharging: -20℃~55℃
Storage temperatureRecommended range: -20℃~60℃

Advantages:
1. Long life, large capacity and good shock resistance
2. Low self-discharge and good discharge performance at low temperature
3. Strong charging acceptance and quick-charging capability
4. Strong over-discharge resistance and charge retention
5. Maintenance-free and no acid or water for maintenance in usage
6. Excellent large current discharge performance, and have obvious advantages in startup and climbing
7. High temperature performance
8. Environmental friendly

Nominal Capacity	150Ah(25±2℃,1C Fresh Cell)
Operating Voltage	2.5~3.65V (Temperature T>0℃ ) / 2.0~3.65V (Temperature T<0℃ )
Maximum Charge Voltage	3.65V
Internal Impedance	≤0.7m&OPurple Horn;
Standard Charge Method	Constant Current and Constant Voltage (CC/CV) ; Current 0.5C /25±2℃
Maximum Charge Current	Continues 0.5C ; Max 1C (25±2℃)
Standard Discharge	Continues 1C ; Max 3C (10S) 15℃ < T ≤ 50℃
Maximum Working Tem.	Charge : 0~+60℃ / Discharge :-30~+60℃
Cycle Life	3500th cycle ≥80% of 1st Capacity (0.5C/1.0C at 25℃)
Cell Size	Thickness : 71.6±1mm /Width: 173.6±1mm /Height: 207.3±1mm
Cell Weight	≤3.45Kg
