5mm High Temperature Lithium Ion Battery 3.7 V 200mah Lipo Battery With UL CE
Price:
negotiable
MOQ:
10PCS/ORDER
Delivery Time:
3-5days
Brand:
Purple Horn
Product Description
Product Description
◆ 10 years of li-polymer battery manufacture & export experience
◆ Excellent quality, advanced services and competitive prices
◆ Reply within 24 working hours
◆ Professional R&D team supporting
Product Name: Rechargeable custom 5mm 3.7v 200mah li-ion polymer battery /li-po battery with UL CE | |||
Battery Type | Li-Polymer | Material | LiCoO2/NMC |
PN | 501730 | Voltage/Capacity | 3.7V/200mAh |
Weight | Approx 3.6g | Shape | Soft pack |
Dimensions | 5.1(T)x17.5(W)x32.5(L)mm MAX | Package | Inner Tray + Carton |
Cycle Life | ≥500 times | Warranty | 12 months |

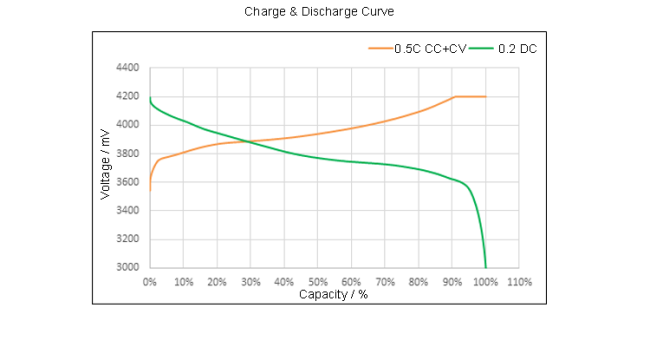

Charge Info | Charge Cut-off Voltage : 4.20V±0.05V | ||
Charging method: CC/CV | |||
Standard Charge Current : 40 mA (0.2C) | |||
Max Charge Current: 200mA (1.0C) | |||
Discharge Info | Discharge Cut-off Voltage : 3.0V | ||
Max Constant Discharge Current : 200mA/Customized | |||
Working Temperature | Standard Charge: 0~+40℃ | ||
Standard Discharge: -20~+60℃ | |||
Production Lead Time | In stock: 5-7 working days; Out of stock: 20-25 working days | ||
◆ Production Reference: GB/T18287-2000, UL1642 and IEC61960-1:2000.

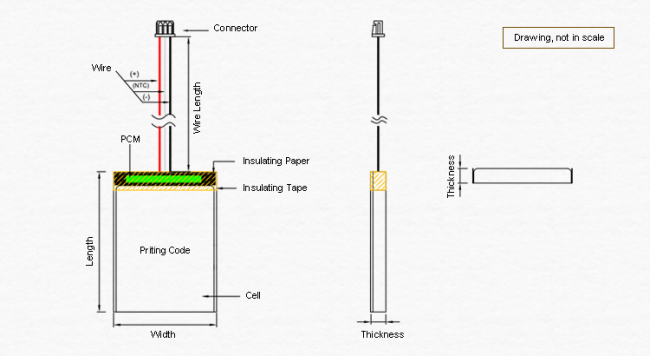

Thickness MAX | Width MAX | Length MAX | Wire Length | Connector |
5.1mm | 17.5mm | 32.5mm | Customized | Customized |
